Flanged Thin Section Bearings

What Are Flanged Thin Section Bearings?

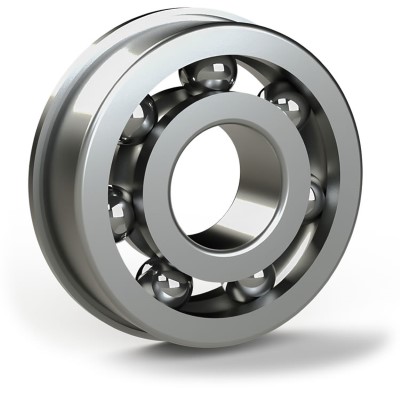

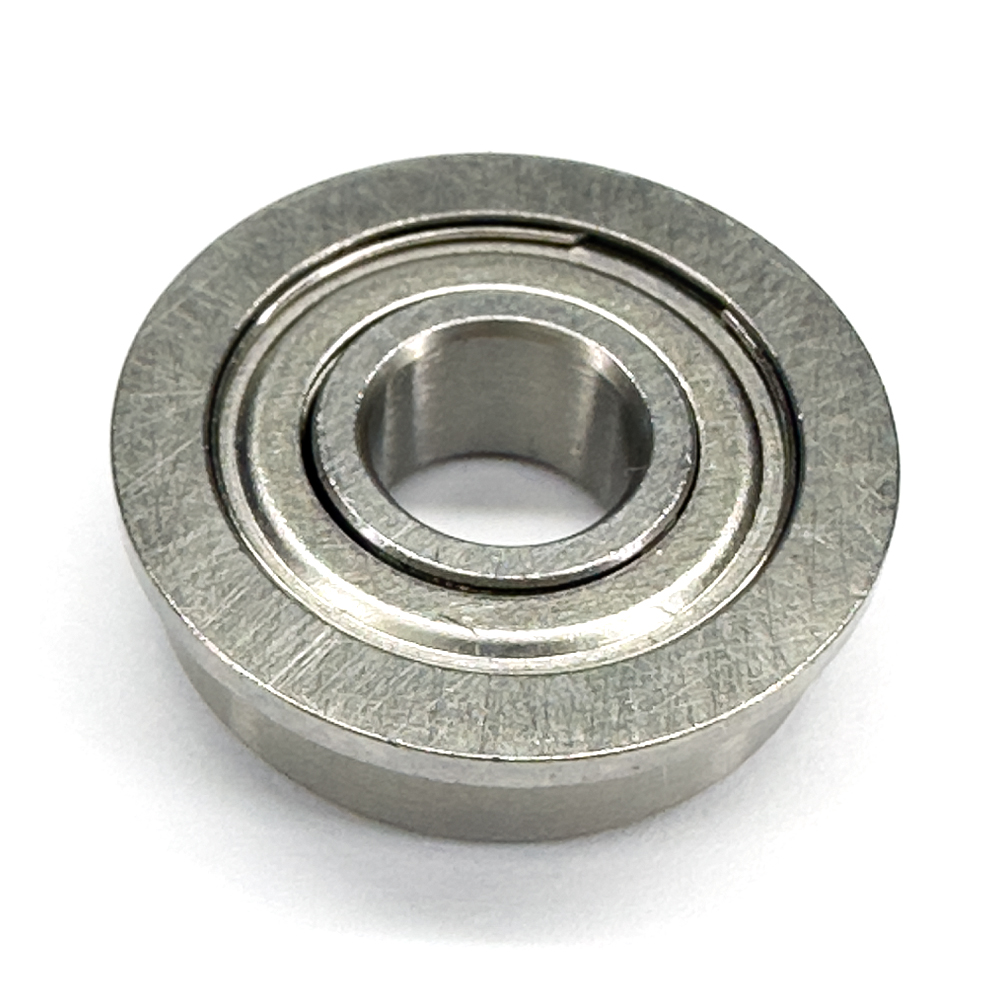

Flanged thin section bearings are a specialized type of thin section bearing that includes a solid steel flange integrated into the outer ring. This unique feature makes it easier to position the bearing accurately within its housing and enhances its axial stability under load.

Key Advantages

• Easy Installation: The flange simplifies positioning within the housing, reducing the need for additional locating components.
• Axial Stability: The integrated flange helps resist axial displacement caused by thrust loads or high vibration, making these bearings reliable in dynamic environments.
• Space-Saving Design: These bearings are perfect for applications with strict space or weight limitations.
• High Precision & Low Torque: Like all thin section bearings, flanged versions maintain low rotational torque and high rotational accuracy.

Typical Applications

Flanged thin section bearings are widely used across multiple industries where precision and compact design are critical. Common applications include:

• Medical equipment such as imaging devices
• Aerospace systems including guidance mechanisms
• Robotics, particularly in space-constrained joints or actuators
• Semiconductor manufacturing equipment
• Optical and camera systems

Performance Benefits

These bearings are favored in high-precision industries for their:

• Lightweight construction that reduces system mass
• Consistency under high-speed or high-vibration conditions
• Minimal friction and wear for extended operational life

Conclusion

Flanged Thin Section Bearings provide a compact, stable, and precise bearing solution for demanding applications. Their ability to reduce assembly complexity and withstand axial movement makes them an essential component in modern mechanical and electronic systems.
