Mast Guide Bearings

What Are Mast Guide Bearings?

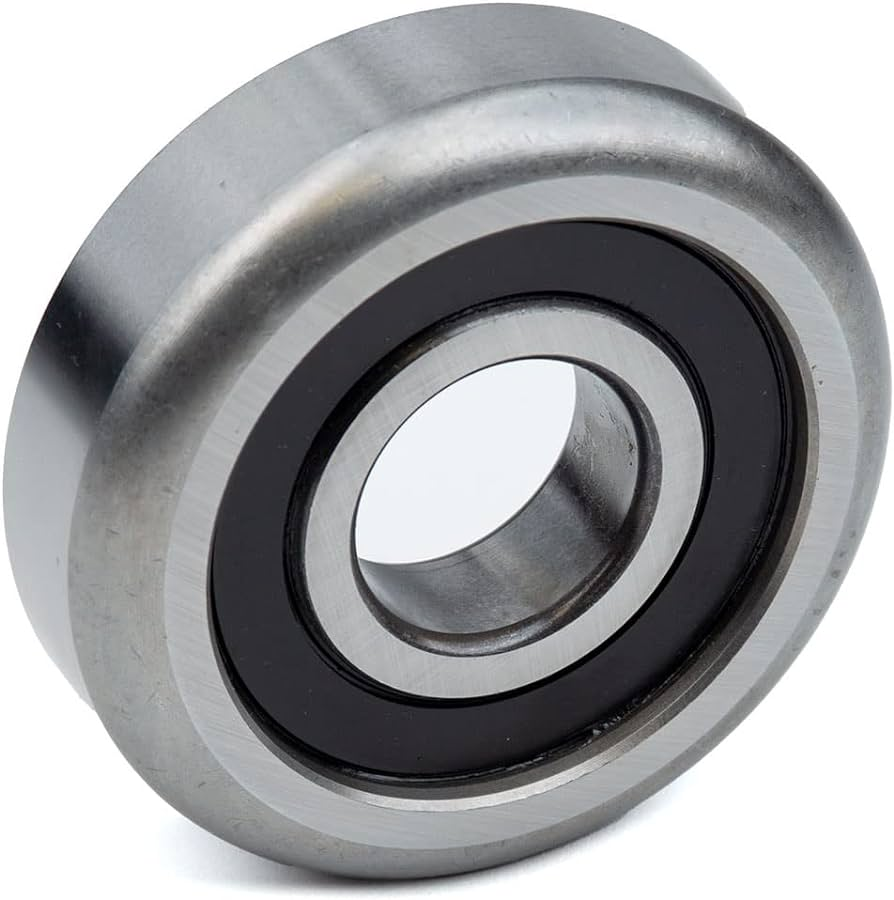

Mast Guide Bearings play a vital role in industrial lifting and transport machinery, particularly forklifts. They are engineered to support substantial radial loads while occasionally withstanding axial forces. Their thick outer ring enables smooth motion along rails or tracks, especially in vertical lift systems.

Design and Structural Features

• Thick Outer Ring: Acts like a wheel or tire, absorbing heavy radial loads and ensuring durability in track-based applications.
• Inseparable Construction: The bearing’s unified design enhances reliability and structural integrity.
• Ball Bearing Core: Internally fitted with precision balls to maintain stability and load distribution.
• Sealing Options: Available with rubber seals (RS), metal shields (ZZ), or hybrid types (ZRS) to prevent lubricant loss and block external contaminants.

Customization and Material Options

Corebearing provides OEM-customized Mast Guide Bearings to suit diverse operational environments:

• Material Choices: Standard steel, stainless steel, and high-temperature-resistant steel are available.
• Surface Coatings:
  • Corrosion-Resistant Coating – for harsh or marine conditions.
  • Black Oxide – for moderate corrosion protection and improved wear resistance.
  • Black Phosphate – boosts rust resistance in industrial environments.
  • Galvanization – adds structural strength and extended corrosion resistance.
• Custom Lubrication: Various high-performance greases from leading brands ensure optimal function and longevity based on specific use cases.

Key Advantages

• High Radial Load Capacity: Designed to bear heavy vertical loads, especially in guided movement systems.
• Low-Speed Operation Efficiency: Ideal for slow-moving applications where consistent load support is critical.
• Long Service Life: Reinforced structure and high-quality materials offer extended performance in rugged conditions.
• Precision and Stability: Enhances control in automated and manual lifting operations, contributing to smooth and accurate handling.

Common Applications

• Forklift Trucks: Guides the mast carriage for reliable vertical motion.
• Material Handling Equipment: Ensures efficiency in loading and unloading systems.
• Telescopic Handlers: Provides support during extension and retraction of the lifting arms.
• Industrial Lifts & Elevators: Used in guided rail systems for vertical transport in warehouses and factories.
• Automated Storage and Retrieval Systems (ASRS): Enables accurate and stable movement of robotic arms and carriages.

Interchangeability

Mast Guide Bearings are fully interchangeable with NTN models, making them easy to integrate into existing machinery or use as reliable replacement parts.

Conclusion

For operations requiring dependable, load-bearing performance in vertical or track-based systems, Mast Guide Bearings deliver superior functionality, long-term durability, and precision. Their versatility across multiple industries makes them a trusted solution for demanding mechanical environments.
