Miniature Bearings

Miniature bearings are essential components in both everyday devices and highly demanding environments such as high/low temperatures, vacuum systems, corrosive settings, and high-speed machinery. This article offers a comprehensive overview of miniature bearings, including their structure, key features, material options, performance attributes, and application fields, helping engineers and buyers make informed decisions.

+ read more ↓

What Are Miniature Bearings?

Miniature bearings are small deep groove ball bearings with outer diameters ranging from 0.1181 to 1.000 inches (1 to 26 mm). Available in both inch and metric sizes, they come in stainless steel or chrome steel and offer open, sealed, shielded, or flanged configurations to meet a wide range of application needs.

Key Features of Miniature Ball Bearings

Compact Design: Ideal for applications with limited space, offering reliable performance in miniature systems.
High Precision (ABEC-1 to ABEC-9): Manufactured to strict tolerances, suitable for high-speed and precision-critical applications like medical devices and robotics.
Low Friction: Engineered to reduce friction, enhance energy efficiency, and ensure smooth operation even at high speeds.
Durability: Made from high-grade materials to perform reliably in harsh and demanding environments.
Dual Load Capacity: Able to withstand both radial and axial forces, making them ideal for motors, actuators, and flow meters.

Popular Types of Miniature Bearings

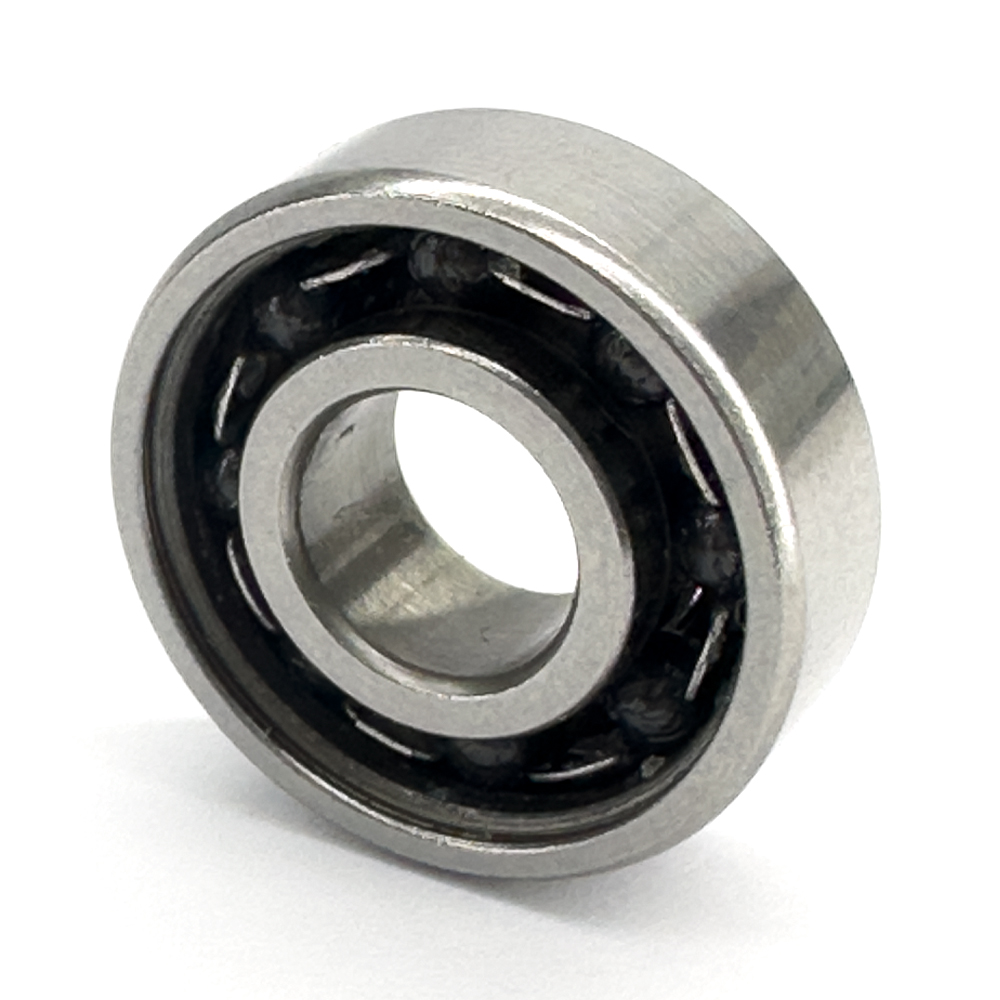

Standard Type

Offers excellent performance in both radial and axial directions. Precision-machined raceways reduce friction, noise, and vibration—ideal for motors, robotics, and precision instruments.

Flanged Outer Ring

Includes a built-in flange on the outer ring for easy alignment and simplified housing design. Commonly used in compact systems like small motors and encoders.

Extended Inner Ring

Features a wider inner ring that eliminates the need for spacers or washers, streamlining installation in systems that require easy assembly.

Flanged Outer Ring with Extended Inner Ring

This hybrid design offers both secure alignment and enhanced load distribution. Perfect for compact applications such as robotic joints or flow measurement devices.

Miniature Thrust Bearings

Composed of two washers and a ball set, these bearings are designed to support axial loads in one direction. Ideal for tight-space applications like rotary tables, valves, and surgical devices.

Full Complement Type

These bearings contain more balls and no cage, providing higher load capacity in compact systems. Frequently used in vacuum pumps and aerospace components.

Sealed and Shielded Miniature Bearings

Typically pre-lubricated and fitted with shields or seals for easy installation and low maintenance. Three common variations include:

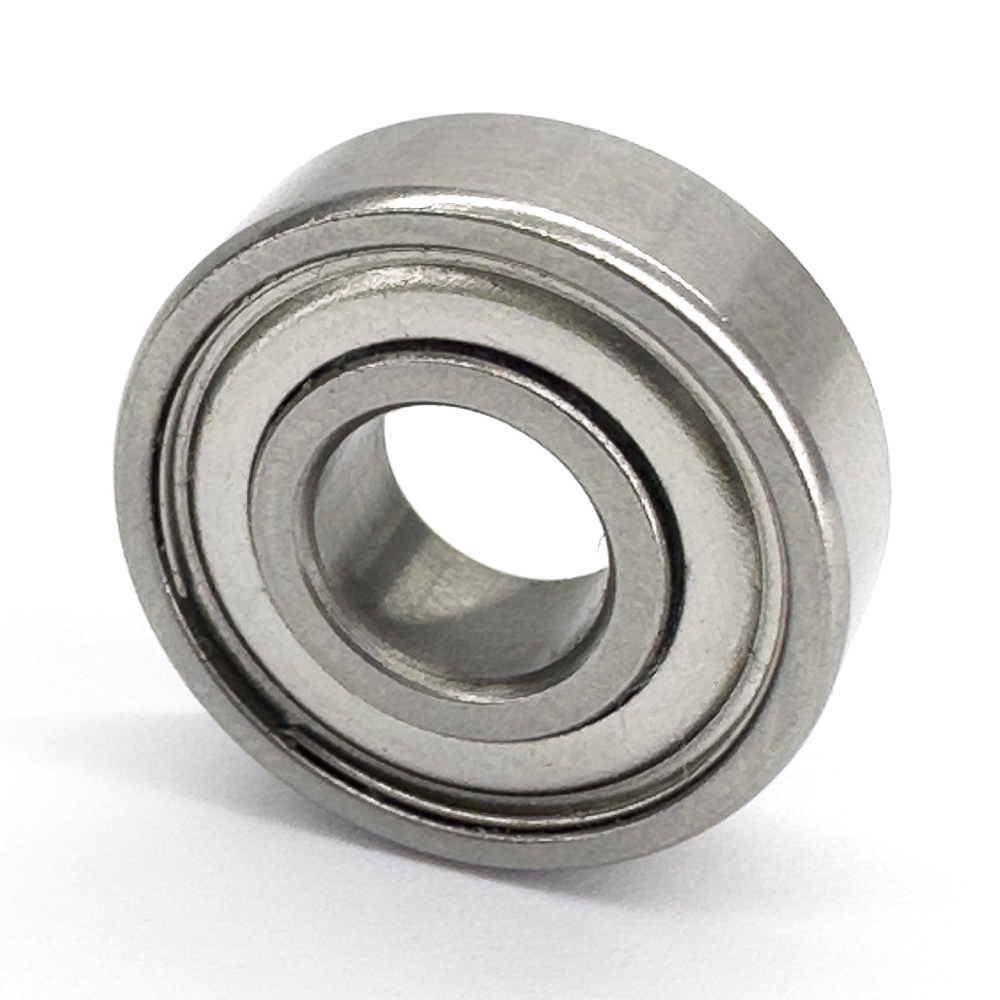

Metal Shielded (ZZ1/Z1, ZZ/Z): Feature stamped steel shield plates made from low carbon or stainless steel.

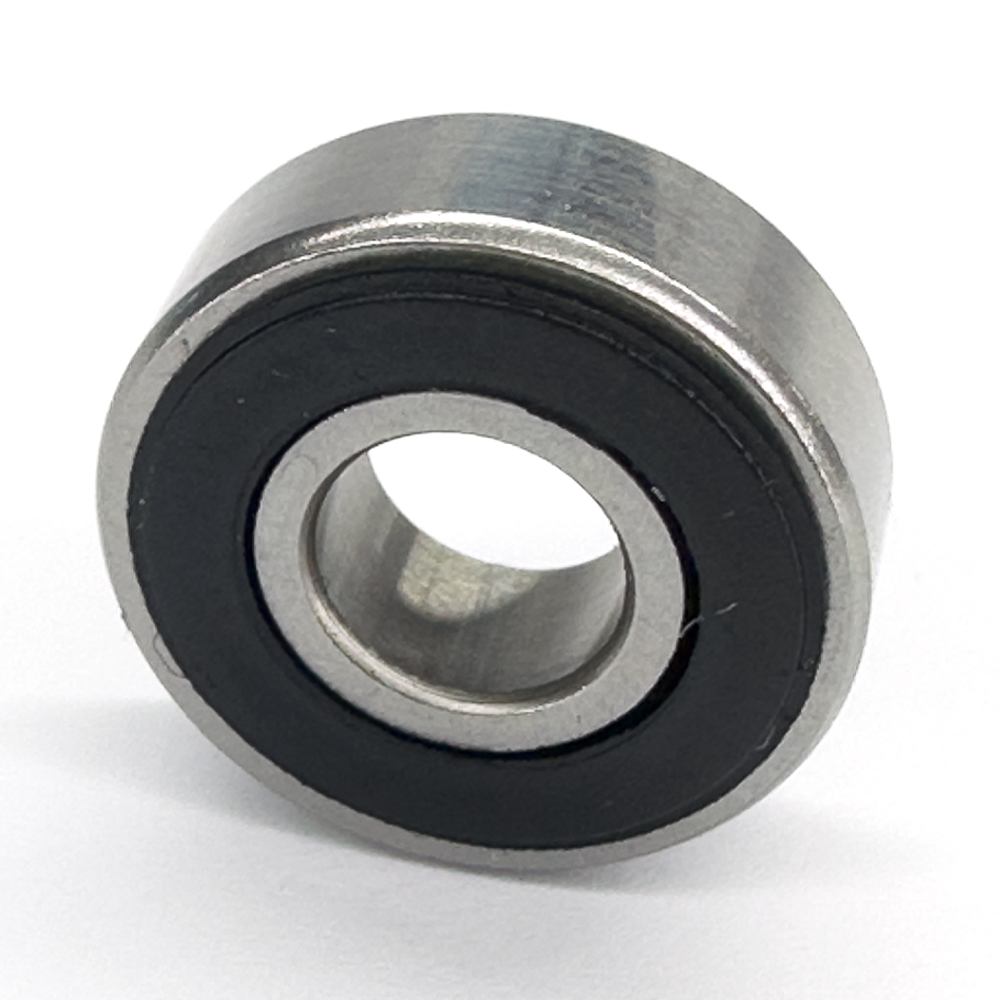

Contact Sealed (DD/D): Provide superior sealing performance for environments with higher contamination risks.
Non-Contact Sealed (VV/V): Use a labyrinth design between the bore and inner ring groove to ensure effective, frictionless sealing.

Common Materials and Their Advantages

Chrome Steel: Offers high durability and excellent load-bearing capabilities; widely used in industrial applications.
Stainless Steel: Provides corrosion resistance and strength, suitable for medical, food, and marine environments.
Ceramics: Known for extremely low friction, high stiffness, and resistance to wear and high temperatures—ideal for precision, high-speed systems.

Additional Performance Attributes

Cage Types: Includes crown, ribbon, and riveted cages to maintain ball spacing and reduce internal friction.
Noise Control: Bearings are quality-tested to ensure low-noise performance, making them suitable for sound-sensitive devices.
Temperature Resistance: Chrome steel versions can operate continuously at up to 120°C and peak at 150°C. Specialized options with heat-resistant materials and lubricants are also available.
Internal Clearance: Proper radial and axial clearances reduce vibration, heat generation, and improve overall performance and bearing life.

Applications of Miniature and Small Bearings

Industrial Equipment

Electric motors
Flow meters
Vacuum pumps
Automation systems

Medical & Scientific Equipment

Medical instruments
Laboratory devices
Anemometers

Aerospace, Defense & Robotics

Robotic arms and systems
Crossbows and specialty mechanisms
Advanced aerospace components

Food & Beverage Industry

Food processing machinery
Beverage handling systems

For more accurate bearing selection, consult our Miniature Bearing Cross Reference Charts or contact our technical team for tailored recommendations.
