Spherical Roller Thrust Bearings

What Are Spherical Roller Thrust Bearings?

Spherical roller thrust bearings are a type of rolling-element bearing specifically designed to support high axial loads while also tolerating misalignment and shaft deflection. These bearings are constructed with specially engineered raceways and asymmetrical rollers, allowing for smooth rotation with minimal friction, even under heavy loads.

Construction and Design Features

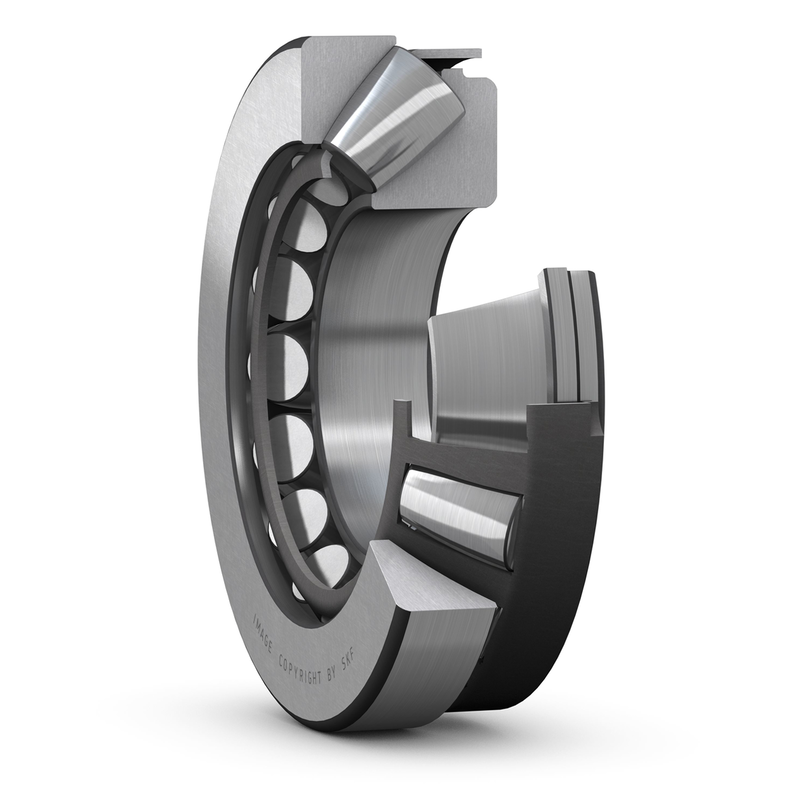

A typical spherical roller thrust bearing consists of the following components:

• Shaft Washer (Inner Ring): Mounted on the rotating shaft.
• Housing Washer (Outer Ring): Fixed in the housing.
• Asymmetrical Rollers: Positioned obliquely to the bearing axis to efficiently transfer axial and limited radial loads.
• Retaining Cage: Maintains uniform roller spacing and prevents metal-to-metal contact.

The spherical shape of the rollers and the specially designed raceways allow for angular misalignment without compromising performance.

Working Principle

When axial load is applied, the rollers rotate between the shaft and housing washers along the raceways. Due to the spherical geometry, the rollers can realign themselves to accommodate shaft deflection or mounting misalignment. This ensures stable performance under misaligned or dynamically shifting conditions.

Applications

Spherical roller thrust bearings are widely used in applications requiring high axial load capacity and alignment flexibility, such as:

• Heavy-duty machinery: Cranes, bulldozers, and mining equipment
• Industrial gearboxes: Supporting torque transfer with high axial loading
• Marine propulsion systems: Bearing support for propeller shafts
• Pulp and paper mills: Machines with dynamic shaft movement
• Steel mills: Equipment operating under extreme loads and high temperatures

Advantages of Spherical Roller Thrust Bearings

• High Axial Load Capacity: Designed to carry heavy thrust loads in one direction
• Angular Misalignment Tolerance: Accommodates shaft misalignment and deflection
• Low Friction: Optimized geometry reduces heat generation and energy consumption
• Compact Design: Efficient use of space for high-performance applications
• Extended Service Life: High durability under demanding conditions reduces maintenance costs

Interchangeability

These bearings are fully interchangeable with industry-standard brands such as:

• SKF

Conclusion

Spherical roller thrust bearings are the ideal solution for industrial systems requiring high axial load capacity and misalignment compensation. Their robust design, compact form, and long service life make them a cost-effective choice for challenging environments. For optimal performance, consult with a bearing expert to ensure proper selection based on your specific operating conditions.
