062.20.0844.500.01.1503

Design Features of 062.20.0844.500.01.1503 Bearing

062.20.0844.500.01.1503 features an inner and outer ring with four contact points between the steel balls and the rings, allowing for the support of radial, axial, and tilting loads. 062.20.0844.500.01.1503 inside diameter of inner ring is 29.039″. Its outside diameter of outer ring is 33.169″. Its design provides high load capacity, durability, and smooth rotation, making it ideal for applications requiring precise, high-torque performance.



What Benefits Can 062.20.0844.500.01.1503 Bearing Provide?

  • High Load Capacity: Supports radial, axial, and tilting loads simultaneously, making it ideal for heavy-duty applications.
  • Compact Design: Offers high performance in a compact form, saving space in mechanical systems.
  • Smooth Rotation: Provides smooth and precise movement with minimal friction, ensuring reliable operation.
  • Durability: Designed to withstand harsh conditions and long-term use, offering extended service life.
  • Versatility: Suitable for a wide range of applications, including cranes, excavators, and solar tracking systems.



What Can 062.20.0844.500.01.1503 Bearing Be Used for?

  • Cranes and Excavators: Used in heavy machinery for rotating and lifting functions.
  • Solar Tracking Systems: Enables smooth and precise tracking of solar panels to optimize energy capture.
  • Wind Turbines: Facilitates the rotation of the turbine for optimal positioning and energy generation.
  • Radar and Antenna Systems: Provides stable rotation for radar dishes and communication antennas.
  • Offshore and Marine Equipment: Used in rotating equipment like winches and turntables in marine and offshore platforms.

Part Number 062.20.0844.500.01.1503
Brand: BearingMaker Interchangeable With: ROTHEERDE
System of Measurement Metric
Series Series 06
Gear Internal Gear
Type Ball
Bearing Type Standard
Product Type Slewing Beraing
Inside Diameter Of Inner Ring 29.039″
Outside Diameter Of Outer Ring 33.169″
Internal Diameter On Outer Ring 36.063″
External Diameter On Inner Ring 33.287″
Height Of Overall Bearing Assembly 2.205″
Height Of Inner Ring 1.791″
Height Of Outer Ring 1.791″
Bolt Size 0.472″
Bolt Circle In Inner Ring 31.693″
Bolt Circle In Outer Ring 35.039″
Size Holes In Inner Ring 0.531″
Size Holes In Outer Ring 0.531″
Number Holes In Inner Ring 40
Number Holes In Outer Ring 40
Pitch Diameter Of Gear 29.606″
Module 8
Number Of Gear Teeth 94
Permissible Tooth Forces T 4680 lbs
Max Gear Tooth Load Fz 9360 lbs
Basic Static Load Rating(C0a) 328222.6 lbs
Moment Load Rating 206516.8 ft-lbs

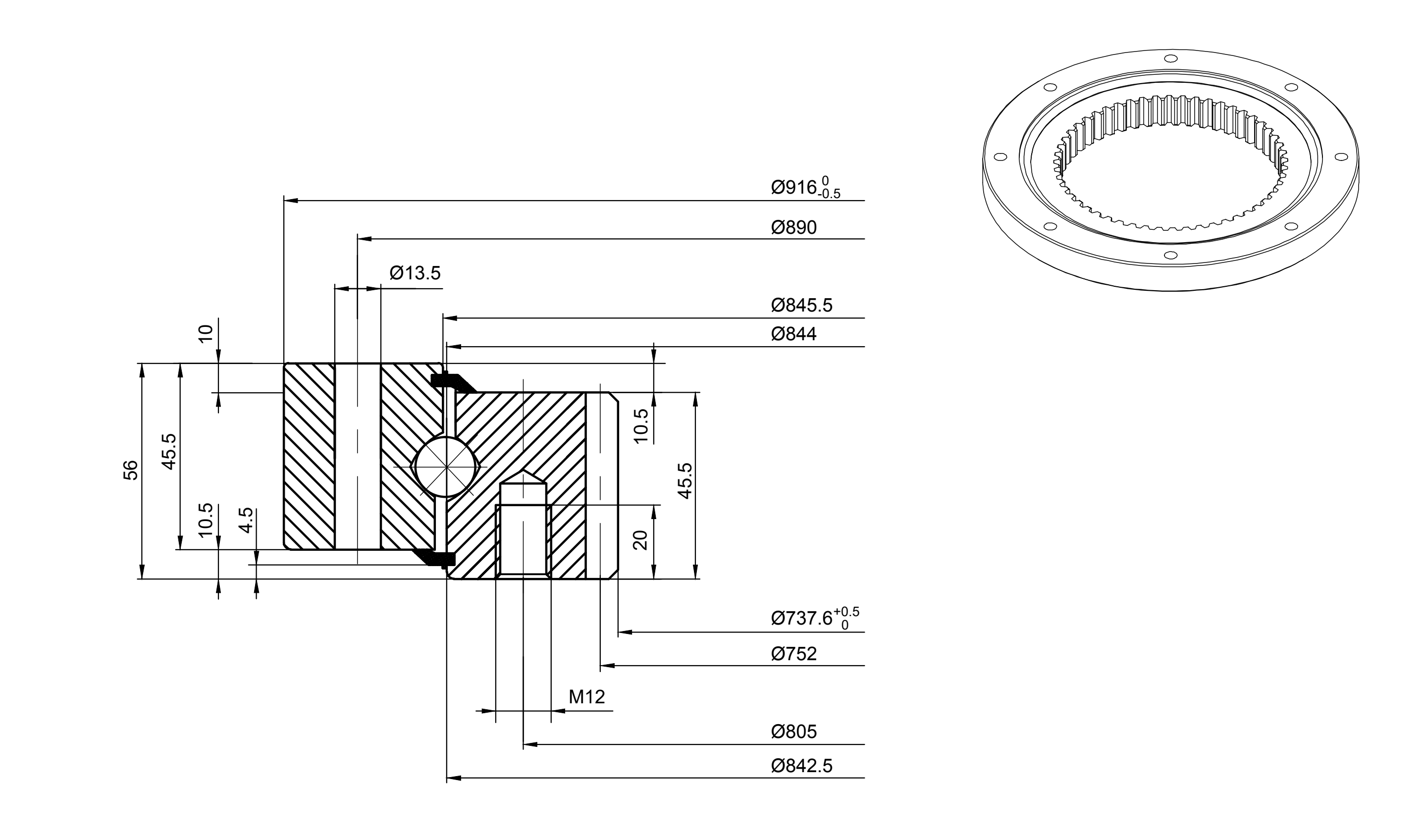

Correspond FIG3
Tooth Width 1.791″
Ring Material 42CRO or 50MN
Ball Materrial Chrome Steel
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 69 Kg
Diameter Of Bearing Raceway 33.228″
Distance Between Bottom Outer Ring/Inner Ring 0.413″
Distance at top Outer Ring/Inner Ring 0.413″
Thread Depth 20
