120TTVF85 OO487

Design Features of 120TTVF85 OO487 Bearing

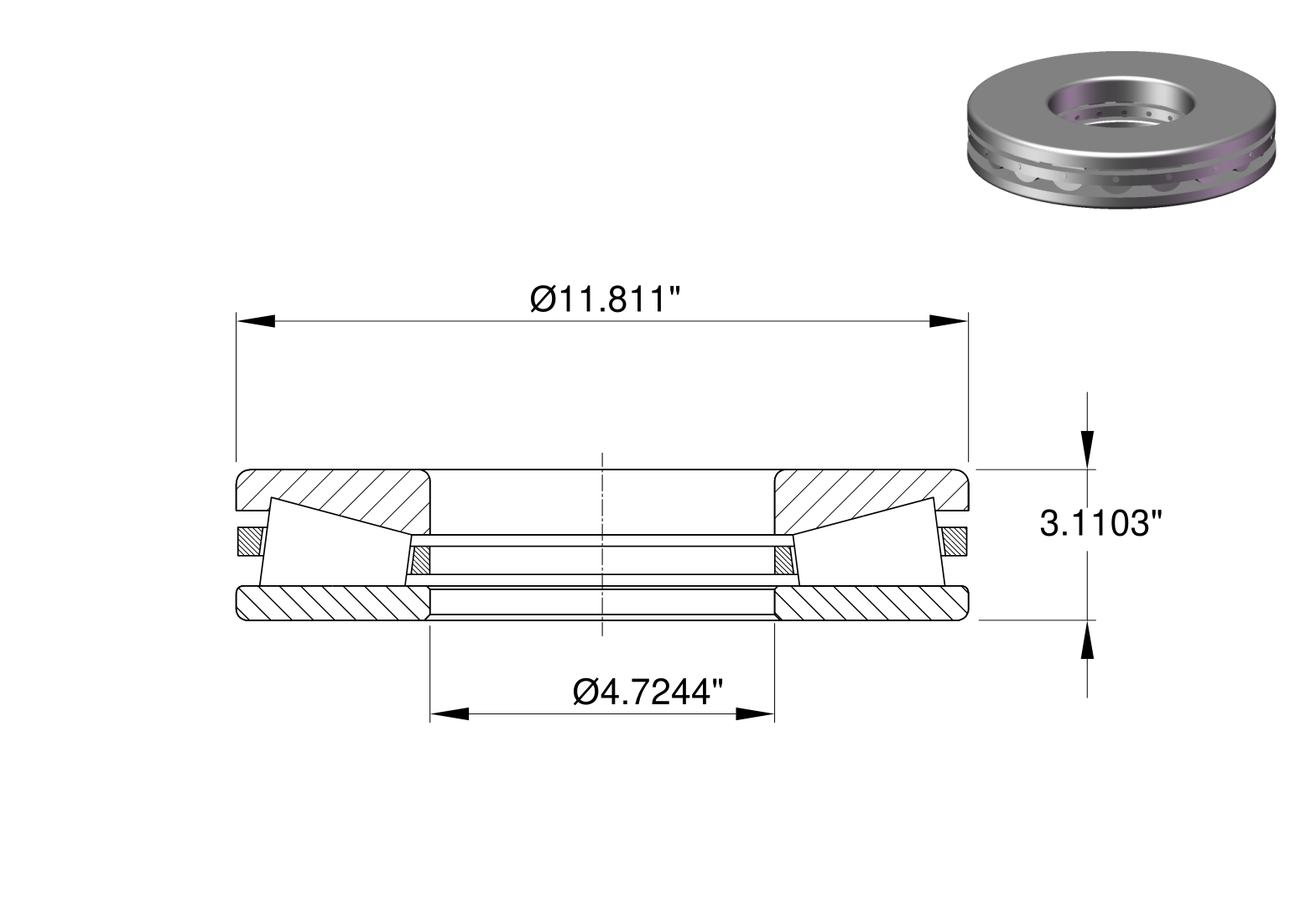

120TTVF85 OO487 features a flat design that allows for easy installation and alignment. 120TTVF85 OO487 outer dia is 11.811″. Its bore dia is 4.7244″. Its robust construction ensures durability and effective load handling in various applications.



What Benefits Can 120TTVF85 OO487 Bearing Provide?

  • Easy Installation: Its flat design simplifies installation and alignment, saving time during setup.
  • Durability: Built with high-quality materials, it provides long-lasting performance even under heavy loads.
  • Effective Load Handling: Designed to manage both radial and axial loads efficiently, enhancing overall machinery performance.
  • Versatility: Suitable for a wide range of applications, making it a flexible choice for different industries.
  • Reduced Maintenance: Its robust construction and efficient design minimize wear, leading to lower maintenance needs.



What Can 120TTVF85 OO487 Bearing Be Used for?

  • Industrial Machinery: Ideal for conveyors, pumps, and fans where load handling and durability are essential.
  • Automotive Applications: Used in vehicle components that require reliable performance under varying loads.
  • Agricultural Equipment: Suitable for machinery like tractors and harvesters, providing stability and support.
  • Construction Equipment: Found in heavy machinery, ensuring smooth operation in demanding environments.
  • Robotics: Utilized in robotic systems that require precision and reliable motion.

Part Number 120TTVF85 OO487
System of Measurement Inch
Type Bearing
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Thrust
Seal Type Open
Series TTHD
Bore Dia 4.7244″
Bore Dia Tolerance +0.001″ to 0
Outer Dia 11.811″
Outer Dia Tolerance +0.001″ to 0
Width 3.1103″
Width Tolerance +0.0150″ to -0.0150
Ring Thickness 0.65″
Fillet Radius Shaft 0.16″
Fillet Radius Housing 0.16″
Inner Dia Housing Washer 4.921″
Outer Dia Shaft Washer 11.752″
Shoulder Diameter Shaft 10.66″
Shoulder Diameter Housing 5.85″
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Thrust Load 140000 lbf
Static Thrust Load 1640000 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
RoHS Compliant
REACH Compliant
Weight 31.80kg
