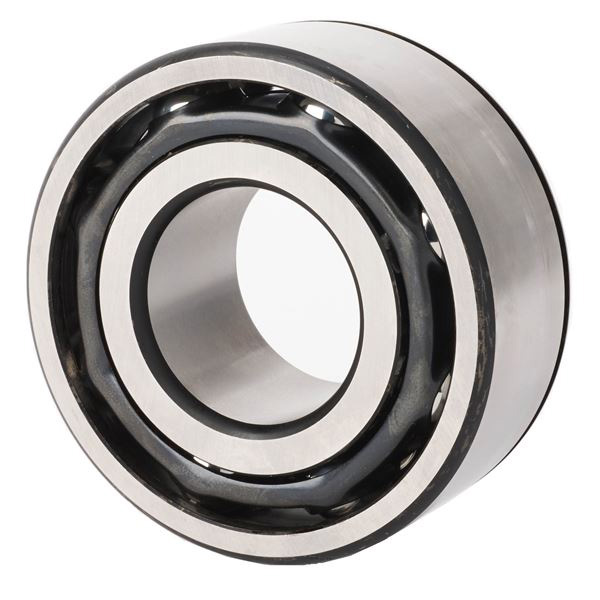

305270 D

Design Features of 305270 D Bearing

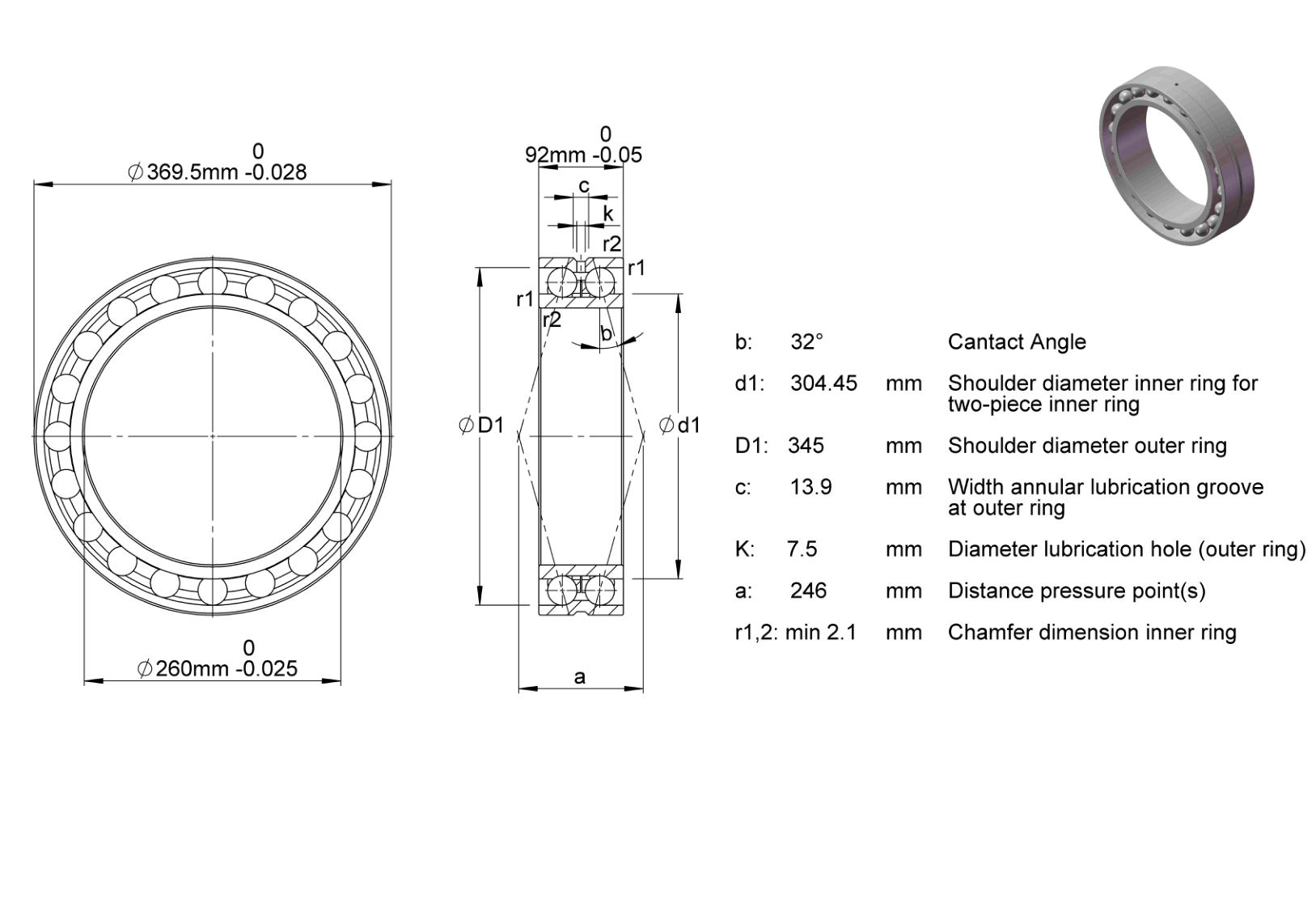

305270 D Bearing features two rows of balls, which increases the load capacity and rigidity compared to single-row bearings. The raceways in the inner and outer rings are displaced relative to each other, allowing the bearing to accommodate combined loads. 305270 D bore dia is 260 mm. Its out dia is 369.5 mm. 305270 D width is 92 mm. This bearing is essential in applications where high radial and axial load capacity, rigidity, and reliability are required.

What Benefits Can 305270 D Bearing Provide?

• Enhanced Load Capacity: The double-row design significantly increases both radial and axial load-bearing capabilities compared to single-row bearings.
• Accommodation of Bidirectional Loads: Efficiently handle axial loads in both directions, making them versatile for various applications.
• High Rigidity and Stability: Offer increased rigidity and stability, essential for precision applications and heavy load conditions.
• Compact Design: Provide the benefits of two single-row angular contact ball bearings in a smaller footprint, optimizing space usage.

What Can 305270 D Bearing Be Used for?

305270 D Bearing is widely used in applications requiring robust support for combined loads and high rigidity. Key uses include:

• Automotive Industry: Particularly in wheel hub assemblies for improved vehicle handling and stability.
• Industrial Machinery: In pumps, compressors, and gearboxes where higher radial and axial load support is essential.
• Agricultural Equipment: For enhanced performance in heavy-duty farming machinery.
• Precision Equipment: In CNC machines and precision measuring instruments.
• Material Handling Systems: For conveyors and lifting equipment, providing stability and load capacity.
