3303 A-2Z
Design Features of 3303 A-2Z Bearing

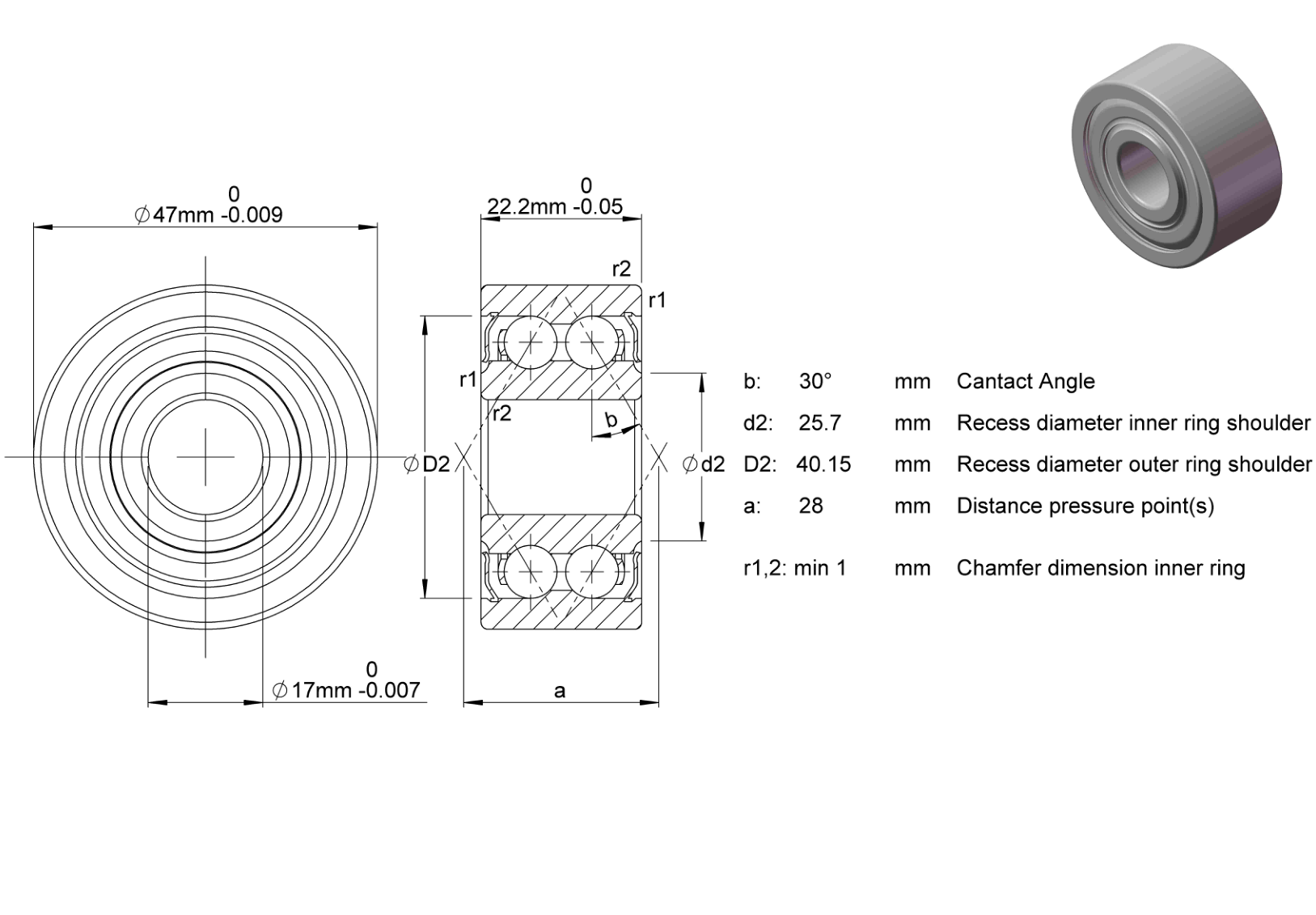

3303 A-2Z Bearing features two rows of balls, which increases the load capacity and rigidity compared to single-row bearings. The raceways in the inner and outer rings are displaced relative to each other, allowing the bearing to accommodate combined loads. 3303 A-2Z bore dia is 17 mm. Its out dia is 47 mm. 3303 A-2Z width is 22.2 mm. This bearing is essential in applications where high radial and axial load capacity, rigidity, and reliability are required.
What Benefits Can 3303 A-2Z Bearing Provide?
- Enhanced Load Capacity: The double-row design significantly increases both radial and axial load-bearing capabilities compared to single-row bearings.
- Accommodation of Bidirectional Loads: Efficiently handle axial loads in both directions, making them versatile for various applications.
- High Rigidity and Stability: Offer increased rigidity and stability, essential for precision applications and heavy load conditions.
- Compact Design: Provide the benefits of two single-row angular contact ball bearings in a smaller footprint, optimizing space usage.
What Can 3303 A-2Z Bearing Be Used for?
3303 A-2Z Bearing is widely used in applications requiring robust support for combined loads and high rigidity. Key uses include:
- Automotive Industry: Particularly in wheel hub assemblies for improved vehicle handling and stability.
- Industrial Machinery: In pumps, compressors, and gearboxes where higher radial and axial load support is essential.
- Agricultural Equipment: For enhanced performance in heavy-duty farming machinery.
- Precision Equipment: In CNC machines and precision measuring instruments.
- Material Handling Systems: For conveyors and lifting equipment, providing stability and load capacity.
