6002-16-2RS

Design Features of 6002-16-2RS Bearing

6002-16-2RS Bearing is constructed with a single row of balls, a deep groove raceway in the outer ring, and is known for its robustness and durability. 6002-16-2RS bore dia is 16 mm. Its out dia is 32 mm. 6002-16-2RS width is 9 mm. It can offer a highly adaptable and efficient solution for a multitude of mechanical applications.



What Benefits Can 6002-16-2RS Bearing Provide?

  • High load-carrying capacity: It can support heavier radial loads compared to other types of ball bearings.
  • Versatility: Capable of handling both radial and axial loads simultaneously.
  • Low friction: It’s designed to operate with minimal friction, making them ideal for high-speed applications.
  • Simplified maintenance: Typically require less maintenance compared to other types of bearings, making it ideal for set-and-forget operations.



What Can 6002-16-2RS Bearing Be Used for?

6002-16-2RS Bearing is suitable for a wide range of applications due to its design and load handling capabilities, such as:

  • Electric Motors: Commonly used in both industrial and smaller, household motors.
  • Automotive: Often found in car transmissions, clutch systems, and wheel hubs.
  • Industrial Machinery: Used in a variety of machines including conveyors, pumps, and compressors.
  • Home Appliances: Found in washers, dryers, and other household equipment.

Overview

Part Number 6002-16-2RS
Brand: BearingMaker Interchangeable With: SKF

Characteristics

System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Locating Feature Bearing Outer Ring None
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C0

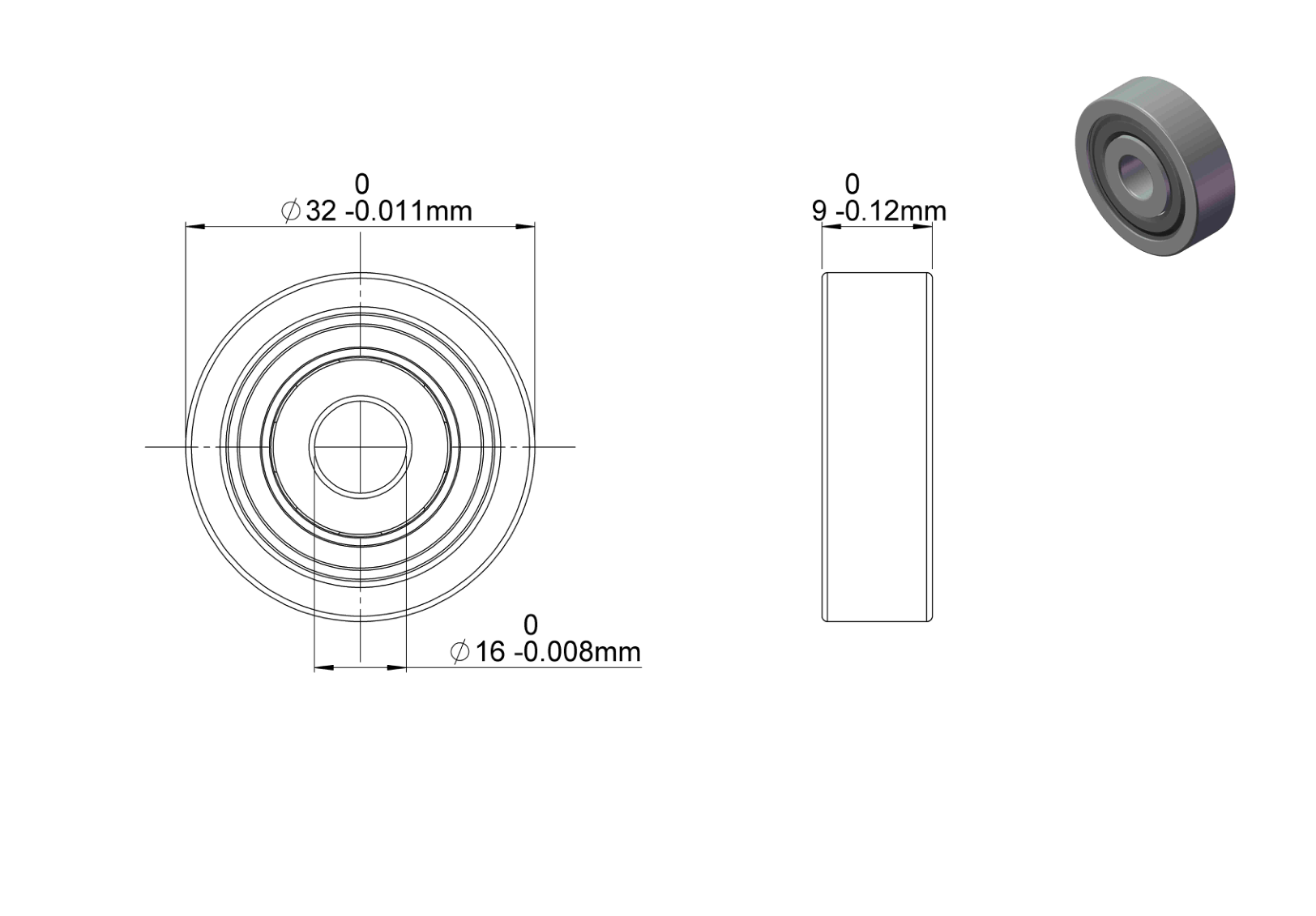

Dimensions

Bore Dia 16 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.011mm to 0
Width 9 mm
Width Tolerance -0.12mm to 0

Material

Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material 300 Series Stainless Steel

Properties

Lubrication Grease
ROHS Compliant
REACH Compliant

Performance

Temperature Range -30°to 120 °C
