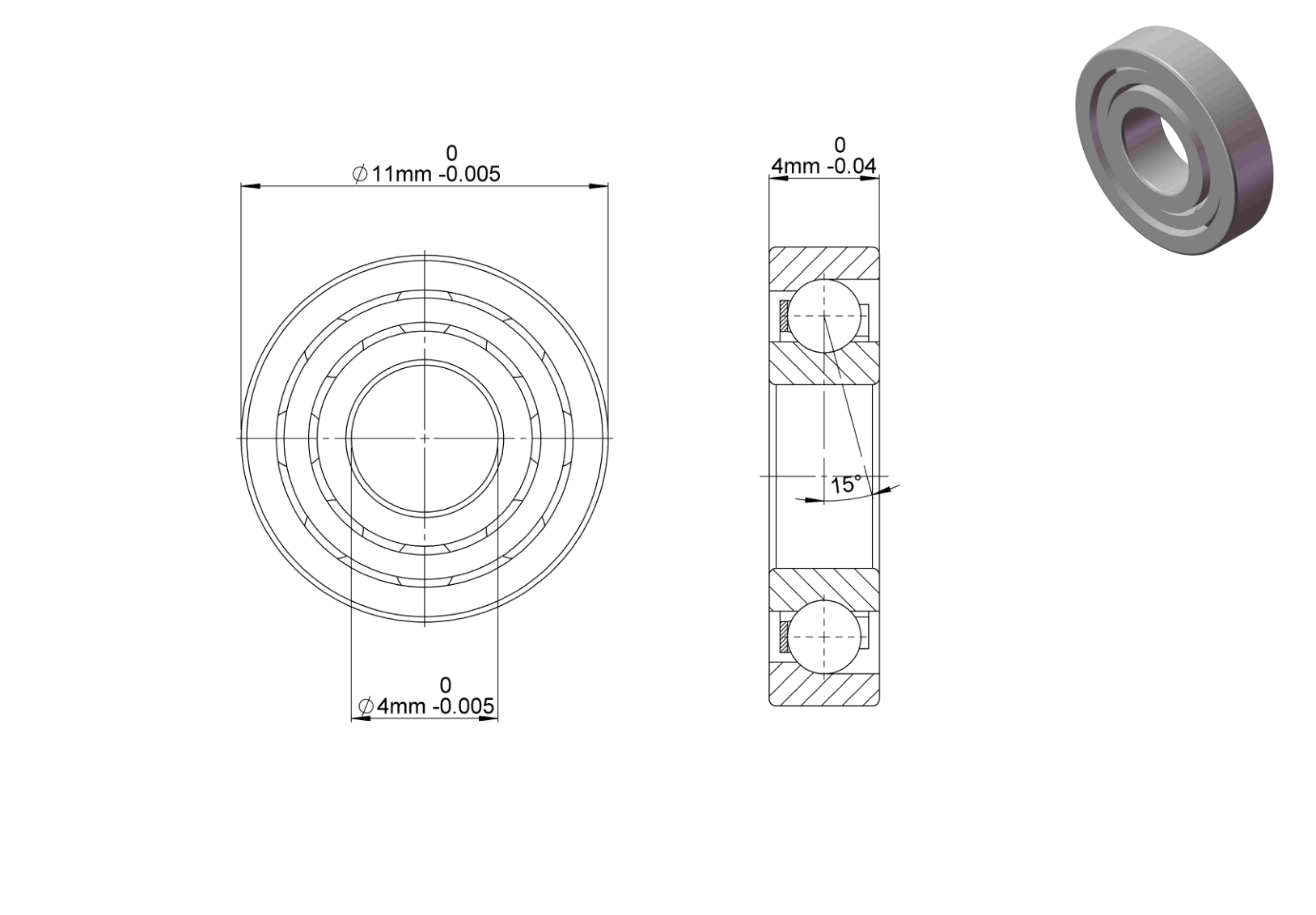

719/4C

Part Number 719/4C
System of Measurement Metric
Contact Angle 15°
Seal Type Sealed,Open
Matched Arrangement Universal matching
Preload Available
For Load Direction Angular Contact
Bore Dia 4 mm
Outer Dia 11 mm
Width 4 mm
Ball Material Steel,Ceramic
Cage Material Nylon,Phenolic
Dynamic Radial Load 181.86 lbf
Static Radial Load 65.19 lbf
Grease Limited speed (r/min) 93000
Oil Limited speed (r/min) 98000
Lubrication Lubricated
ABEC Rating P5(ABEC-5),P4(ABEC-10)
Weight 0.0018 kg
