A8-17P1DU

Design Features of A8-17P1DU Bearing

A8-17P1DU features an inner and outer ring with four contact points between the steel balls and the rings, allowing for the support of radial, axial, and tilting loads. A8-17P1DU inside diameter of inner ring is 12.74″. Its outside diameter of outer ring is 20.48″. Its design provides high load capacity, durability, and smooth rotation, making it ideal for applications requiring precise, high-torque performance.



What Benefits Can A8-17P1DU Bearing Provide?

  • High Load Capacity: Supports radial, axial, and tilting loads simultaneously, making it ideal for heavy-duty applications.
  • Compact Design: Offers high performance in a compact form, saving space in mechanical systems.
  • Smooth Rotation: Provides smooth and precise movement with minimal friction, ensuring reliable operation.
  • Durability: Designed to withstand harsh conditions and long-term use, offering extended service life.
  • Versatility: Suitable for a wide range of applications, including cranes, excavators, and solar tracking systems.



What Can A8-17P1DU Bearing Be Used for?

  • Cranes and Excavators: Used in heavy machinery for rotating and lifting functions.
  • Solar Tracking Systems: Enables smooth and precise tracking of solar panels to optimize energy capture.
  • Wind Turbines: Facilitates the rotation of the turbine for optimal positioning and energy generation.
  • Radar and Antenna Systems: Provides stable rotation for radar dishes and communication antennas.
  • Offshore and Marine Equipment: Used in rotating equipment like winches and turntables in marine and offshore platforms.

Part Number A8-17P1DU
Brand: BearingMaker Interchangeable With: ROTEK
System of Measurement Inch
Series 3000 Series
Gear Without Gear
Type Ball
Bearing Type Standard
Product Type Slewing Beraing

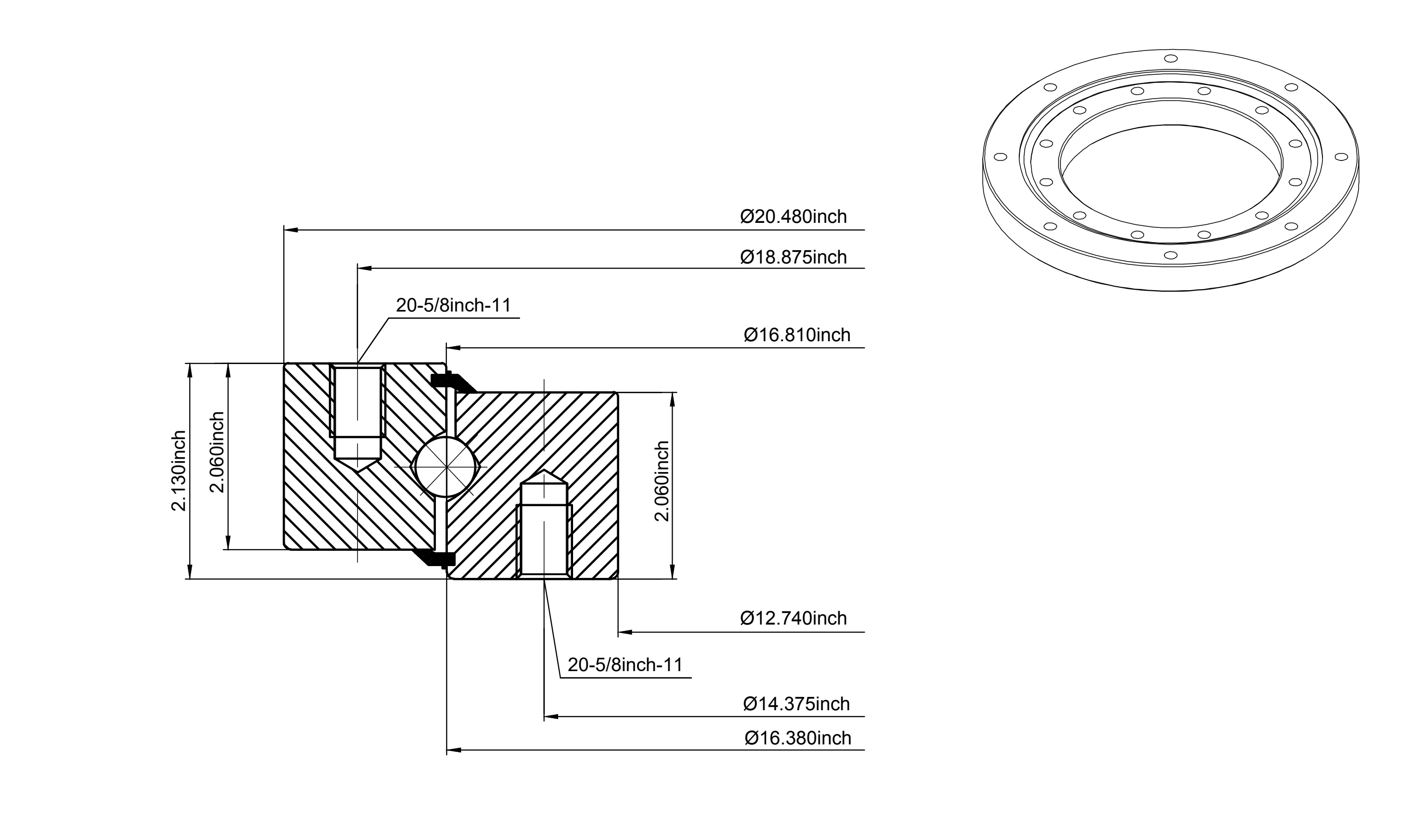

Inside Diameter Of Inner Ring 12.74″
Outside Diameter Of Outer Ring 20.48″
Internal Diameter On Outer Ring 16.38″
External Diameter On Inner Ring 16.81″
Height Of Overall Bearing Assembly 2.13″
Height Of Inner Ring 2.06″
Height Of Outer Ring 2.06″
Bolt Circle In Inner Ring 14.375″
Bolt Circle In Outer Ring 18.875″
Size Holes In Inner Ring 5/8-11
Size Holes In Outer Ring 5/8-11
Number Holes In Inner Ring 20
Number Holes In Outer Ring 20
Basic Static Load Rating(C0a) 320000 lbs
Moment Load Rating 101000 ft-lbs
Correspond 2
Ring Material 42CRO or 50MN
Ball Materrial Chrome Steel
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 101 lbs
