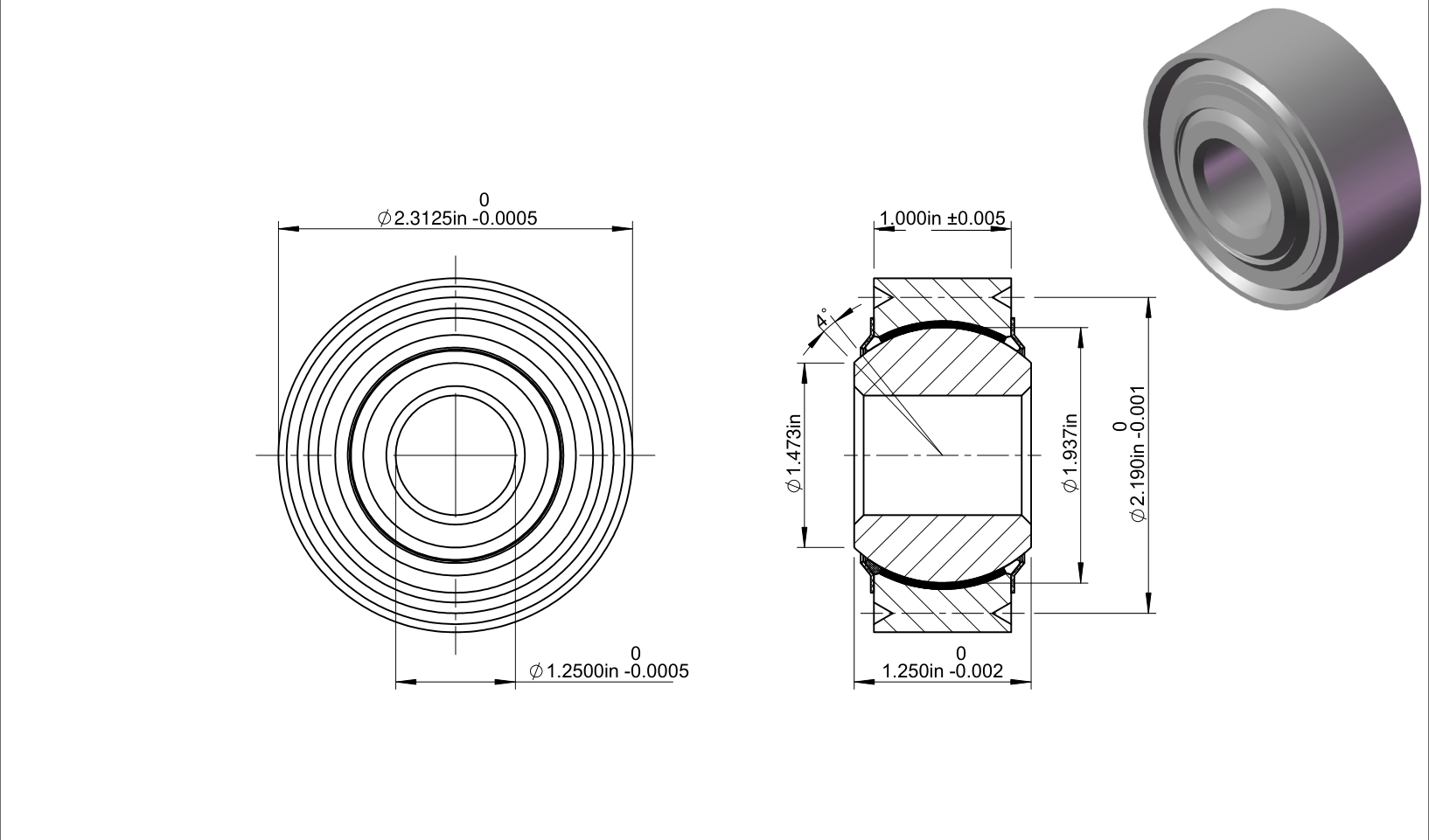

| Part Number | ADB2OVN(L) |
| System of Measurement | Inch |
| Bore Dia | 1.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.3125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.25″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 1″ |
| Race Width Tolerance | -0.005″ to 0.005″ |
| Shoulder Dia | 1.473″ |
| Ball Dia | 1.937″ |
| Race Chamfered | 0.04″ |
| Mis Alignment | 4° |
| Staking groove Data(P) | 2.19″ |
| Staking groove Data(R) | 0.06″ |
| Staking groove Data(S) | 0.010-0.020″ |
| Staking groove Data(X) | 30°” |
| Dynamic Radial Load | 52490 lbs |
| Static Radial Load | 131230 lbs |
| Weight | 0.93 lbs |
