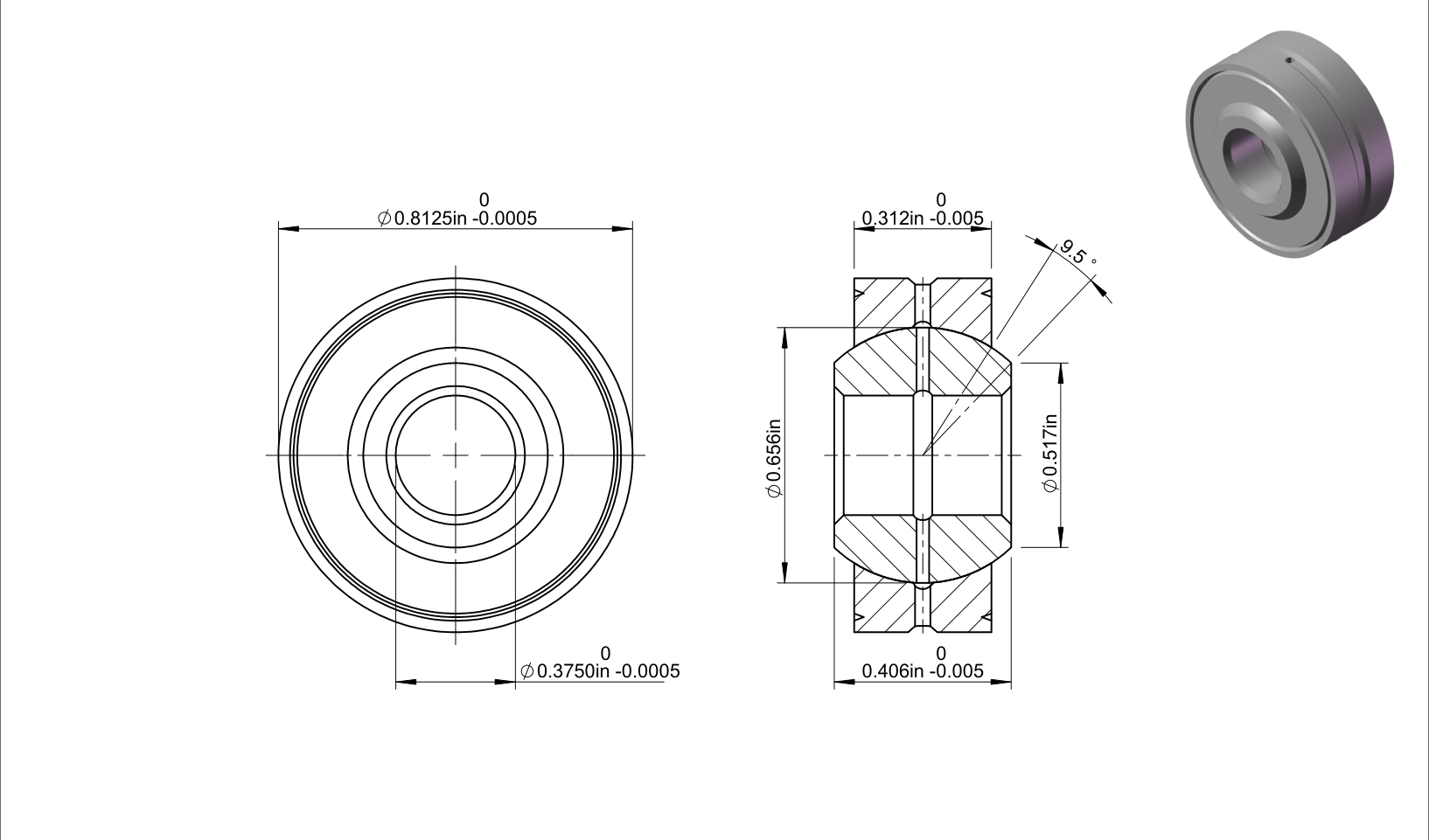

| Part Number | AG6V |
| System of Measurement | Inch |
| Bore Dia | 0.375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.8125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.406″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.312″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 0.517″ |
| Ball Dia | 0.656″ |
| Race Chamfered | 0.032″ |
| Mis Alignment | 9.5° |
| Staking groove Data(P) | 0.04″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.055″ |
| Dynamic Radial Load | 6360 lbs |
| Static Radial Load | 11450 lbs |
| Weight | 0.04 lbs |
