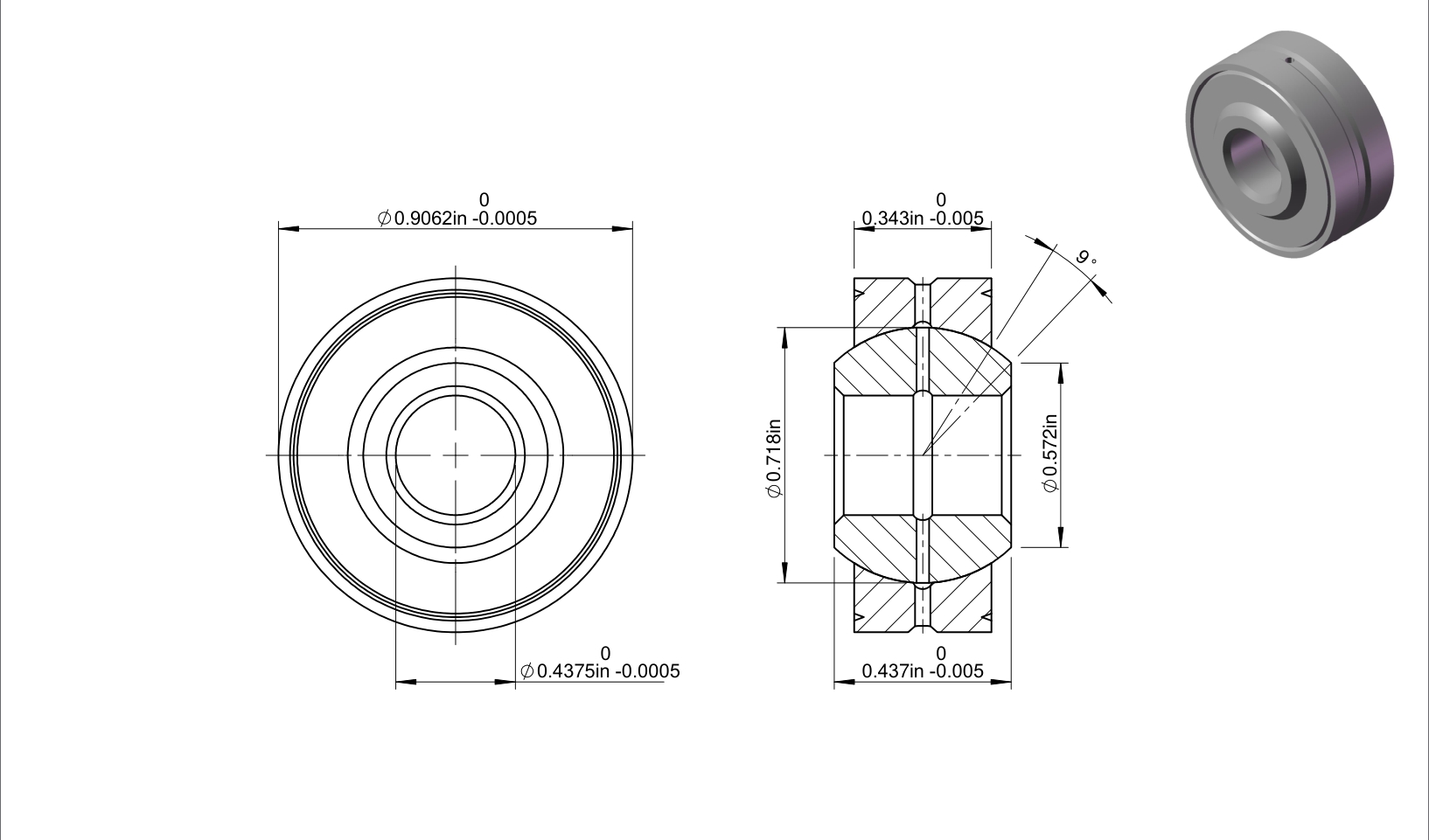

| Part Number | AG7V |
| System of Measurement | Inch |
| Bore Dia | 0.4375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.9062″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.437″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.343″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 0.572″ |
| Ball Dia | 0.718″ |
| Race Chamfered | 0.032″ |
| Mis Alignment | 9° |
| Staking groove Data(P) | 0.04″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.055″ |
| Dynamic Radial Load | 8080 lbs |
| Static Radial Load | 14540 lbs |
| Weight | 0.05 lbs |
