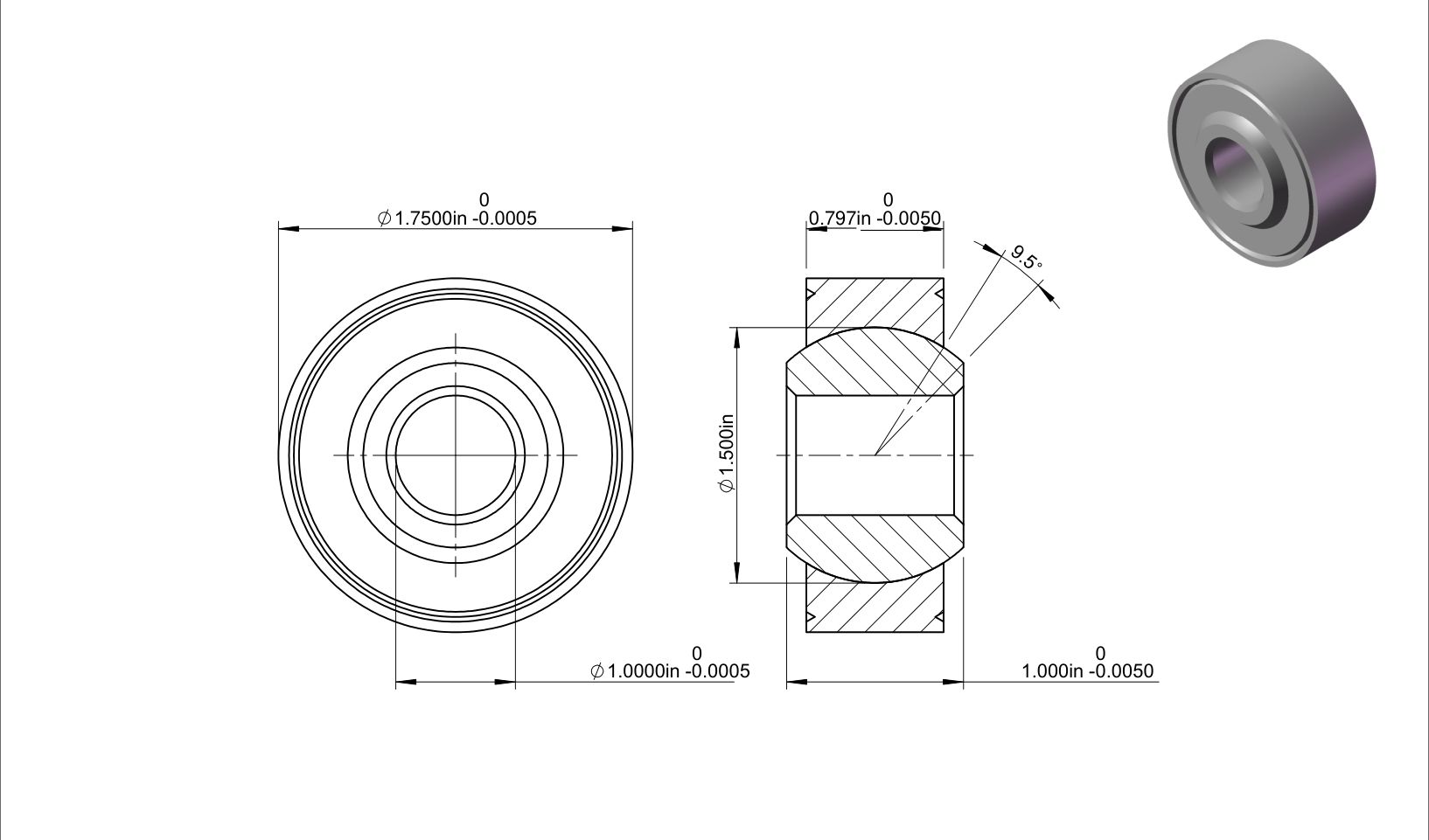

| Part Number | AHT16V |
| System of Measurement | Inch |
| Bore Dia | 1″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.75″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.797″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 1.118″ |
| Ball Dia | 1.5″ |
| Race Chamfered | 0.04″ |
| Mis Alignment | 9.5° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 80040 lbs |
| Static Radial Load | 65220 lbs |
| Weight | 0.39 lbs |
