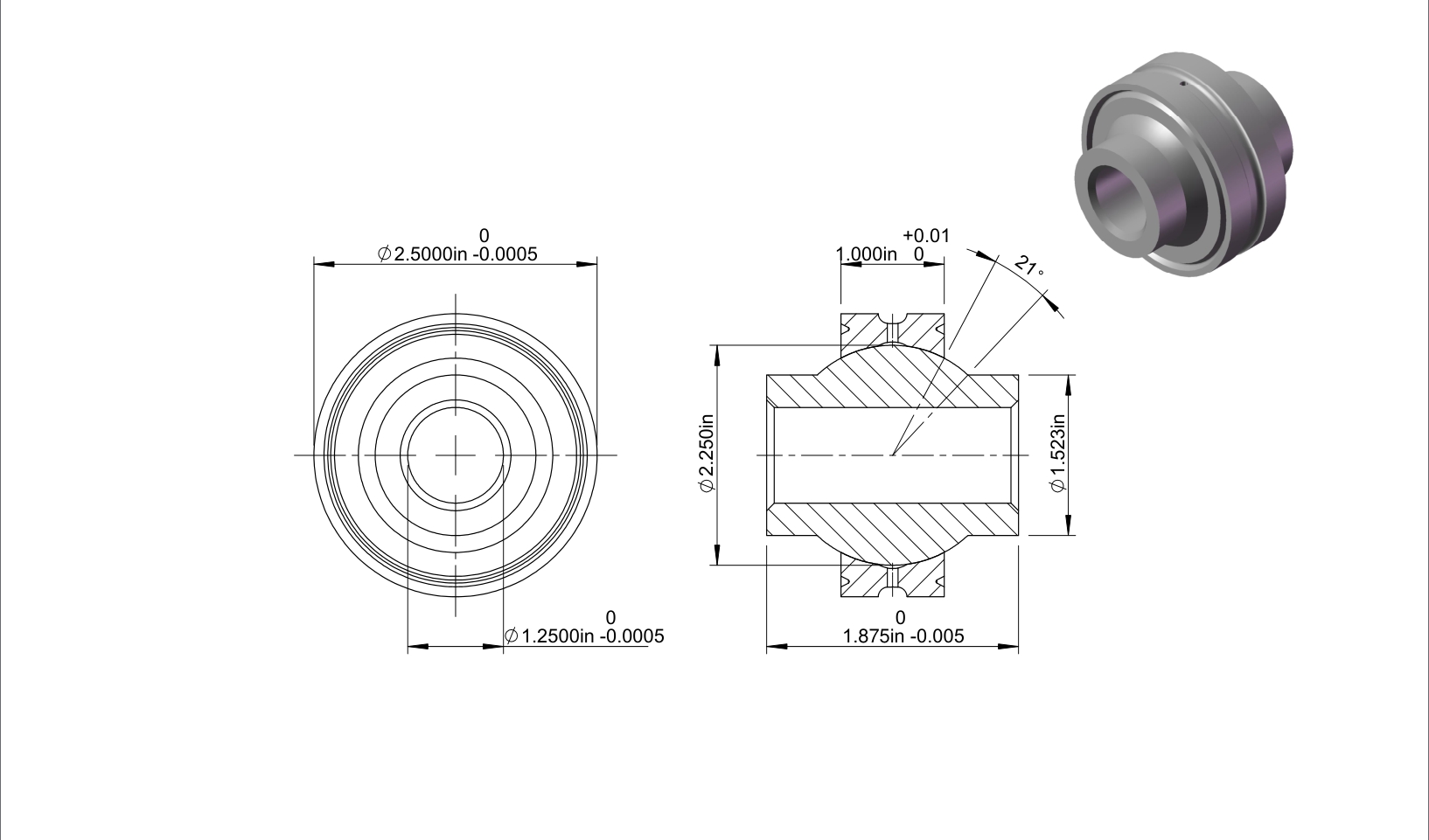

| Part Number | ASBY20V |
| System of Measurement | Inch |
| Bore Dia | 1.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.5″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.875″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 1″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 1.523″ |
| Ball Dia | 2.25″ |
| Race Chamfered | 0.044″ |
| Mis Alignment | 21° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 92810 lbs |
| Static Radial Load | 167060 lbs |
| Weight | 1.318 lbs |
