Part Number | BB15030 |
Brand: BearingMaker | Interchangeable With: KAYDON |
System of Measurement | Metric |
Series | BB Series |
Gear | Without Gear |
Type | Ball |
Model Number | BB15030 |
Bearing Type | Standard |
For Load Direction | Four Point Contact |
Construction | Single Row |
Seal Type | Open |
Inside Diameter Of Inner Ring | 5.906″ |
Bore Dia Tolerance | -0.00098″ |
Outside Diameter Of Outer Ring | 9.055″ |
Outer Dia Tolerance | -0.00098″ |
Height Of Overall Bearing Assembly | 1.181″ |
Width Tolerance | -0.0047″ |
Dynamic Radial Load | 14116 lbs |
Dynamic Thrust | 20557 lbs |
Dynamic Moment | 1006 lbs |
Moment Load Rating | 4475 ft-lbs |
Radial Clearance | 0.002″ |
Radial and Axial Runout Inner | 0.00098″ |
Radial and Axial Runout Outer | 0.00098″ |
Weight | 4.54 Kg |
R | 2 |

BB15030

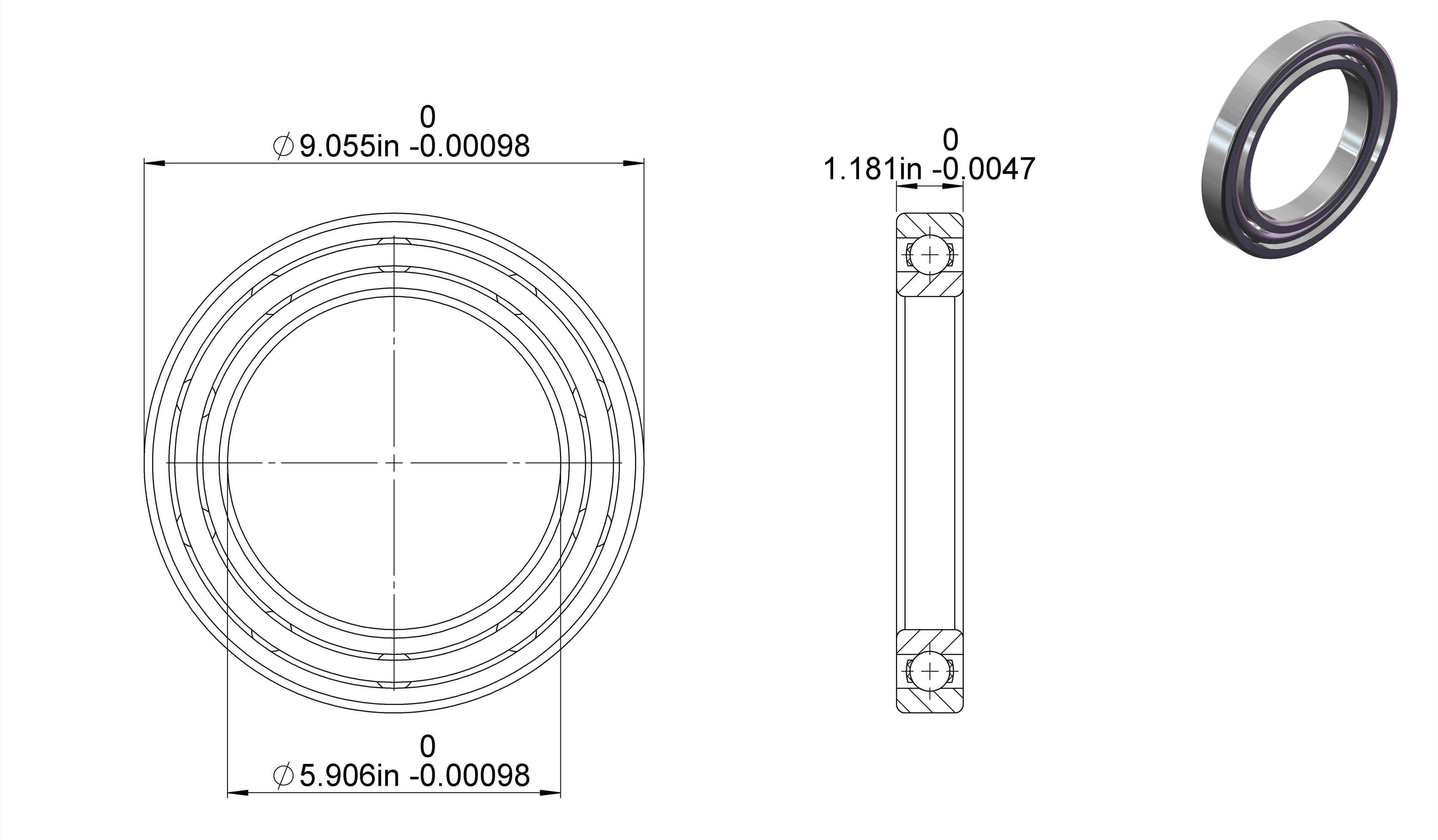

Design Features of BB15030 Bearing
BB15030 features an inner and outer ring with four contact points between the steel balls and the rings, allowing for the support of radial, axial, and tilting loads. BB15030 inside diameter of inner ring is 5.906″. Its outside diameter of outer ring is 9.055″. Its design provides high load capacity, durability, and smooth rotation, making it ideal for applications requiring precise, high-torque performance.
What Benefits Can BB15030 Bearing Provide?
- High Load Capacity: Supports radial, axial, and tilting loads simultaneously, making it ideal for heavy-duty applications.
- Compact Design: Offers high performance in a compact form, saving space in mechanical systems.
- Smooth 2otation: Provides smooth and precise movement with minimal friction, ensuring reliable operation.
- Durability: Designed to withstand harsh conditions and long-term use, offering extended service life.
- Versatility: Suitable for a wide range of applications, including cranes, excavators, and solar tracking systems.
What Can BB15030 Bearing Be Used for?
- Cranes and Excavators: Used in heavy machinery for rotating and lifting functions.
- Solar Tracking Systems: Enables smooth and precise tracking of solar panels to optimize energy capture.
- Wind Turbines: Facilitates the rotation of the turbine for optimal positioning and energy generation.
- 2adar and Antenna Systems: Provides stable rotation for radar dishes and communication antennas.
- Offshore and Marine Equipment: Used in rotating equipment like winches and turntables in marine and offshore platforms.
