CRB6013UU

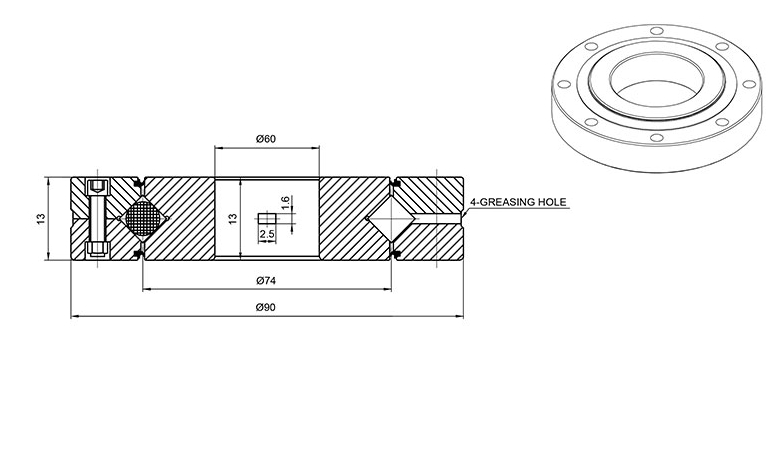

Design Features of CRB6013UU Bearing

CRB6013UU features a compact design that allows for high rigidity and precision while supporting radial, axial, and moment loads. CRB6013UU outer dia is 90 mm. Its bore dia is 60 mm. Its crossed roller arrangement ensures smooth rotation and minimal friction, making it ideal for applications requiring accurate motion control.

What Benefits Can CRB6013UU Bearing Provide?

High Load Capacity: Its crossed roller design allows it to handle radial, axial, and moment loads simultaneously, making it suitable for heavy-duty applications.
Precision and Accuracy: The bearing provides excellent positional accuracy, which is crucial for applications that require precise motion control.
Compact Size: The design is typically more compact than traditional bearings, allowing for use in space-constrained environments without compromising performance.
Smooth Operation: With reduced friction and improved rotation smoothness, the bearing enhances the overall efficiency and longevity of machinery.
Versatility: It can be used in various applications, including robotics, medical equipment, industrial machinery, and aerospace, due to its ability to accommodate complex loading conditions.

What Can CRB6013UU Bearing Be Used for?

Robotics: In robotic joints and end-effectors, where precise motion control and high load capacity are required.
Industrial Machinery: Used in CNC machines, lathes, and milling machines to ensure smooth operation and accurate positioning.
Medical Equipment: In devices such as surgical tables, imaging equipment, and robotic-assisted surgery systems, where precision and stability are crucial.
Aerospace Applications: Utilized in gimbals, satellites, and flight control systems for their ability to withstand dynamic loads and maintain accuracy.
Wind Turbines: For yaw and pitch control systems, allowing for smooth rotation and alignment with wind direction.
Material Handling Equipment: In cranes, hoists, and turntables, where heavy loads need to be rotated or moved with precision.

Category: CRBC

Part Number	CRB6013UU
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Crossed
For Load Direction	Combined
Construction	Single Row
Seal Type	Double Seal
Bore Dia	60 mm
Outer Dia	90 mm
Width	13 mm
R(min)	0.6 mm
Shoulder Height Ds(max)	67 mm
Shoulder Height Dh(min)	82 mm
Holes	Without Holes
Ring Material	Steel
Roller Material	Steel
Basic Load Rating C	18 kN
Basic Load Rating Co	24.3 kN
Lubrication	Required
Shaft Mount Type	Press Fit
Temperature Range	0 -230 °F
ABEC Rating	ABEC5(Available in ABEC7/9)
RoHS	Compliant
REACH	Compliant
Weight	0.3 Kg
