CRBC30035

Design Features of CRBC30035 Bearing

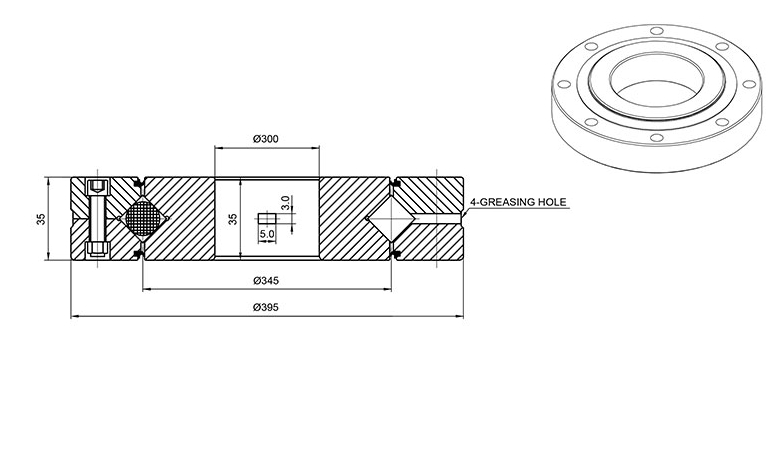

CRBC30035 features a compact design that allows for high rigidity and precision while supporting radial, axial, and moment loads. CRBC30035 outer dia is 395 mm. Its bore dia is 300 mm. Its crossed roller arrangement ensures smooth rotation and minimal friction, making it ideal for applications requiring accurate motion control.

What Benefits Can CRBC30035 Bearing Provide?

High Load Capacity: Its crossed roller design allows it to handle radial, axial, and moment loads simultaneously, making it suitable for heavy-duty applications.
Precision and Accuracy: The bearing provides excellent positional accuracy, which is crucial for applications that require precise motion control.
Compact Size: The design is typically more compact than traditional bearings, allowing for use in space-constrained environments without compromising performance.
Smooth Operation: With reduced friction and improved rotation smoothness, the bearing enhances the overall efficiency and longevity of machinery.
Versatility: It can be used in various applications, including robotics, medical equipment, industrial machinery, and aerospace, due to its ability to accommodate complex loading conditions.

What Can CRBC30035 Bearing Be Used for?

Robotics: In robotic joints and end-effectors, where precise motion control and high load capacity are required.
Industrial Machinery: Used in CNC machines, lathes, and milling machines to ensure smooth operation and accurate positioning.
Medical Equipment: In devices such as surgical tables, imaging equipment, and robotic-assisted surgery systems, where precision and stability are crucial.
Aerospace Applications: Utilized in gimbals, satellites, and flight control systems for their ability to withstand dynamic loads and maintain accuracy.
Wind Turbines: For yaw and pitch control systems, allowing for smooth rotation and alignment with wind direction.
Material Handling Equipment: In cranes, hoists, and turntables, where heavy loads need to be rotated or moved with precision.

Category: CRBC

Part Number	CRBC30035
System of Measurement	Metric
Bearing Type	Roller
Roller Bearing Type	Crossed
For Load Direction	Combined
Construction	Single Row
Seal Type	Open
Bore Dia	300 mm
Outer Dia	395 mm
Width	35 mm
R(min)	2.5 mm
Shoulder Height Ds(max)	322 mm
Shoulder Height Dh(min)	368 mm
Holes	Without Holes
Ring Material	Steel
Roller Material	Steel
Basic Load Rating C	183 kN
Basic Load Rating Co	367 kN
Lubrication	Required
Shaft Mount Type	Press Fit
Temperature Range	0 -230 °F
ABEC Rating	ABEC5(Available in ABEC7/9)
RoHS	Compliant
REACH	Compliant
Weight	13.4 Kg
