S625 2rs Stainless Steel Bearings

Design Features of S625 2rs Stainless Steel Bearings Bearing

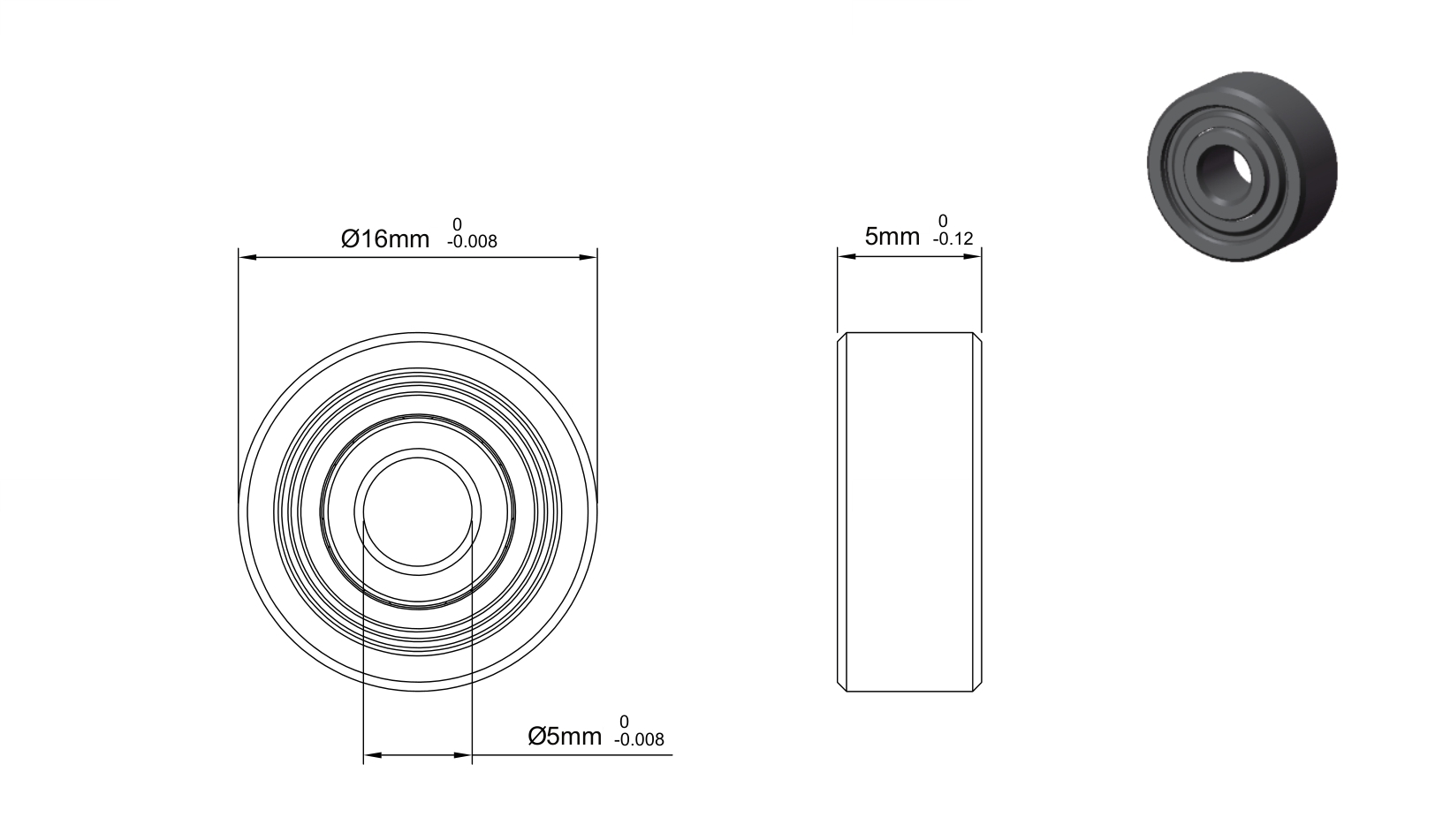

S625 2rs Stainless Steel Bearings Bearing represents a precise melding of advanced metallurgy and engineering. Crafted from AISI440C stainless steel, it is uniquely tailored for applications that require a combination of corrosion resistance and hardness. S625 2rs Stainless Steel Bearings bore dia is 5 mm. Its out dia is 16 mm. Its width is 5 mm. S625 2rs Stainless Steel Bearings Bearing offers a blend of durability, precision, and compatibility tailored for specific operational needs.



What Benefits Can S625 2rs Stainless Steel Bearings Bearing Provide?

  • Corrosion Resistance: Thanks to AISI440C stainless steel,  this bearing is resilient against moisture and certain chemicals.
  • Durability: AISI440C’s hardness ensures long-lasting performance under heavy loads.
  • Versatility: It operates effectively across diverse temperatures and conditions.
  • Precision: Reduced friction for smoother operations and energy savings.



What Can S625 2rs Stainless Steel Bearings Bearing Be Used for?

S625 2rs Stainless Steel Bearings Bearing is commonly used in applications such as:

  • Marine Applications: Its corrosion resistance makes it ideal for environments with moisture and salinity.
  • High-Load Systems: The hardness of AISI440C ensures this bearing can handle heavy loads efficiently.
  • Precision Equipment: Instruments requiring reduced friction and high accuracy benefit from this bearing.
  • Extreme Conditions: Effective across varying temperatures and conditions, making it suitable for both hot and cold environments.

$1.38

Part Number S625 2rs Stainless Steel Bearings
System of Measurement Metric
Ring Material



Cage Material

Balls Material

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Sealed
Bore Dia 5 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 16 mm
Outer Dia Tolerance -0.008mm to 0
Width 5 mm
Width Tolerance -0.12mm to 0
Shield Material Nitrile Rubber
Dynamic Radial Load 298 lbf
Static Radial Load 109 lbf
Max Speed (X1000 rpm) 32.4
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC1
Radial Clearance Trade No MC3
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 2.7780 mm
Ball Qty 7
Weight 5.1 g
