Part Number | SR6 Stainless Steel Bearings |
System of Measurement | Inch |
Ring Material
|
|
Cage Material |
|
Balls Material |
|
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Inner Ring Type | Standard |
Seal Type | Open |

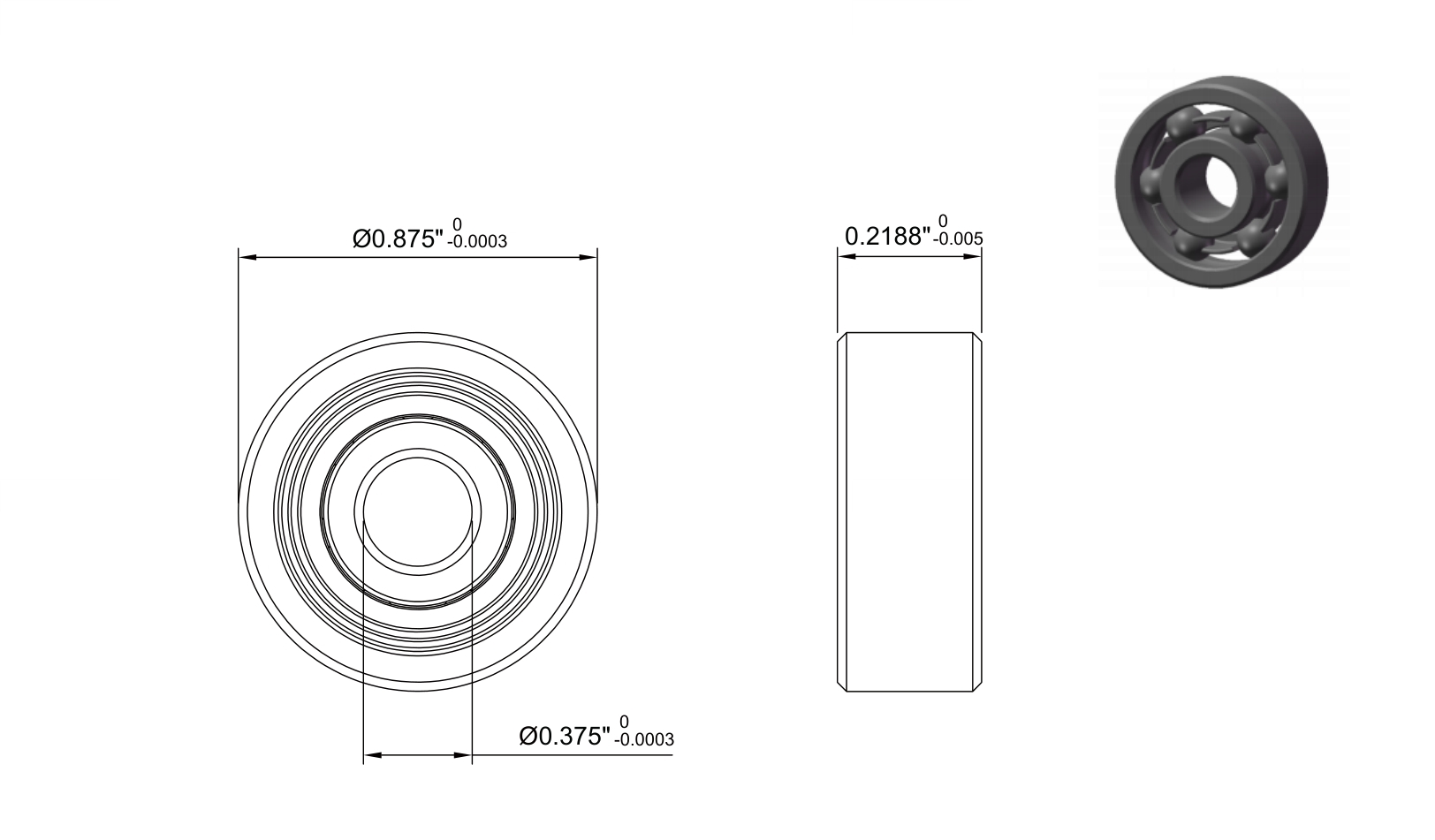

Bore Dia | 0.375″ |
Bore Dia Tolerance | -0.0003″ to 0″ |
Outer Dia | 0.875″ |
Outer Dia Tolerance | -0.0003″ to 0″ |
Width | 0.2188″ |
Width Tolerance | -0.005″ to 0″ |
Dynamic Radial Load | 574 lbf |
Static Radial Load | 230 lbf |
Max Speed (X1000 rpm) | 28.8 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -86 to 230 °F |
ABEC Rating | ABEC1 |
Radial Clearance Trade No | MC3 |
Radial Clearance | 0.00008″ to 0.0005″ |
RoHS | Compliant |
REACH | Compliant |
Ball Dia | 0.15630″ |
Ball Qty | 7 |
Weight | 9.02 g |

SR6 Stainless Steel Bearings
Design Features of SR6 Stainless Steel Bearings Bearing
SR6 Stainless Steel Bearings Bearing represents a precise melding of advanced metallurgy and engineering. Crafted from AISI440C stainless steel, it is uniquely tailored for applications that require a combination of corrosion resistance and hardness. SR6 Stainless Steel Bearings bore dia is 0.375″. Its out dia is 0.875″. Its width is 0.2188″. SR6 Stainless Steel Bearings Bearing offers a blend of durability, precision, and compatibility tailored for specific operational needs.
What Benefits Can SR6 Stainless Steel Bearings Bearing Provide?
- Corrosion Resistance: Thanks to AISI440C stainless steel, this bearing is resilient against moisture and certain chemicals.
- Durability: AISI440C’s hardness ensures long-lasting performance under heavy loads.
- Versatility: It operates effectively across diverse temperatures and conditions.
- Precision: Reduced friction for smoother operations and energy savings.
What Can SR6 Stainless Steel Bearings Bearing Be Used for?
SR6 Stainless Steel Bearings Bearing is commonly used in applications such as:
- Marine Applications: Its corrosion resistance makes it ideal for environments with moisture and salinity.
- High-Load Systems: The hardness of AISI440C ensures this bearing can handle heavy loads efficiently.
- Precision Equipment: Instruments requiring reduced friction and high accuracy benefit from this bearing.
- Extreme Conditions: Effective across varying temperatures and conditions, making it suitable for both hot and cold environments.
$1.14
