SRW1810zz Stainless Steel Bearings

Design Features of SRW1810zz Stainless Steel Bearings Bearing

SRW1810zz Stainless Steel Bearings Bearing represents a precise melding of advanced metallurgy and engineering. Crafted from AISI440C stainless steel, it is uniquely tailored for applications that require a combination of corrosion resistance and hardness. SRW1810zz Stainless Steel Bearings bore dia is 0.3125″. Its out dia is 0.5″. Its width is 0.1562″. SRW1810zz Stainless Steel Bearings Bearing offers a blend of durability, precision, and compatibility tailored for specific operational needs.



What Benefits Can SRW1810zz Stainless Steel Bearings Bearing Provide?

  • Corrosion Resistance: Thanks to AISI440C stainless steel,  this bearing is resilient against moisture and certain chemicals.
  • Durability: AISI440C’s hardness ensures long-lasting performance under heavy loads.
  • Versatility: It operates effectively across diverse temperatures and conditions.
  • Precision: Reduced friction for smoother operations and energy savings.



What Can SRW1810zz Stainless Steel Bearings Bearing Be Used for?

SRW1810zz Stainless Steel Bearings Bearing is commonly used in applications such as:

  • Marine Applications: Its corrosion resistance makes it ideal for environments with moisture and salinity.
  • High-Load Systems: The hardness of AISI440C ensures this bearing can handle heavy loads efficiently.
  • Precision Equipment: Instruments requiring reduced friction and high accuracy benefit from this bearing.
  • Extreme Conditions: Effective across varying temperatures and conditions, making it suitable for both hot and cold environments.

$4.26

Part Number SRW1810zz Stainless Steel Bearings
System of Measurement Inch
SRW1810ZZA3MC3SRL
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Inner Ring Type Extended
Seal Type Shielded

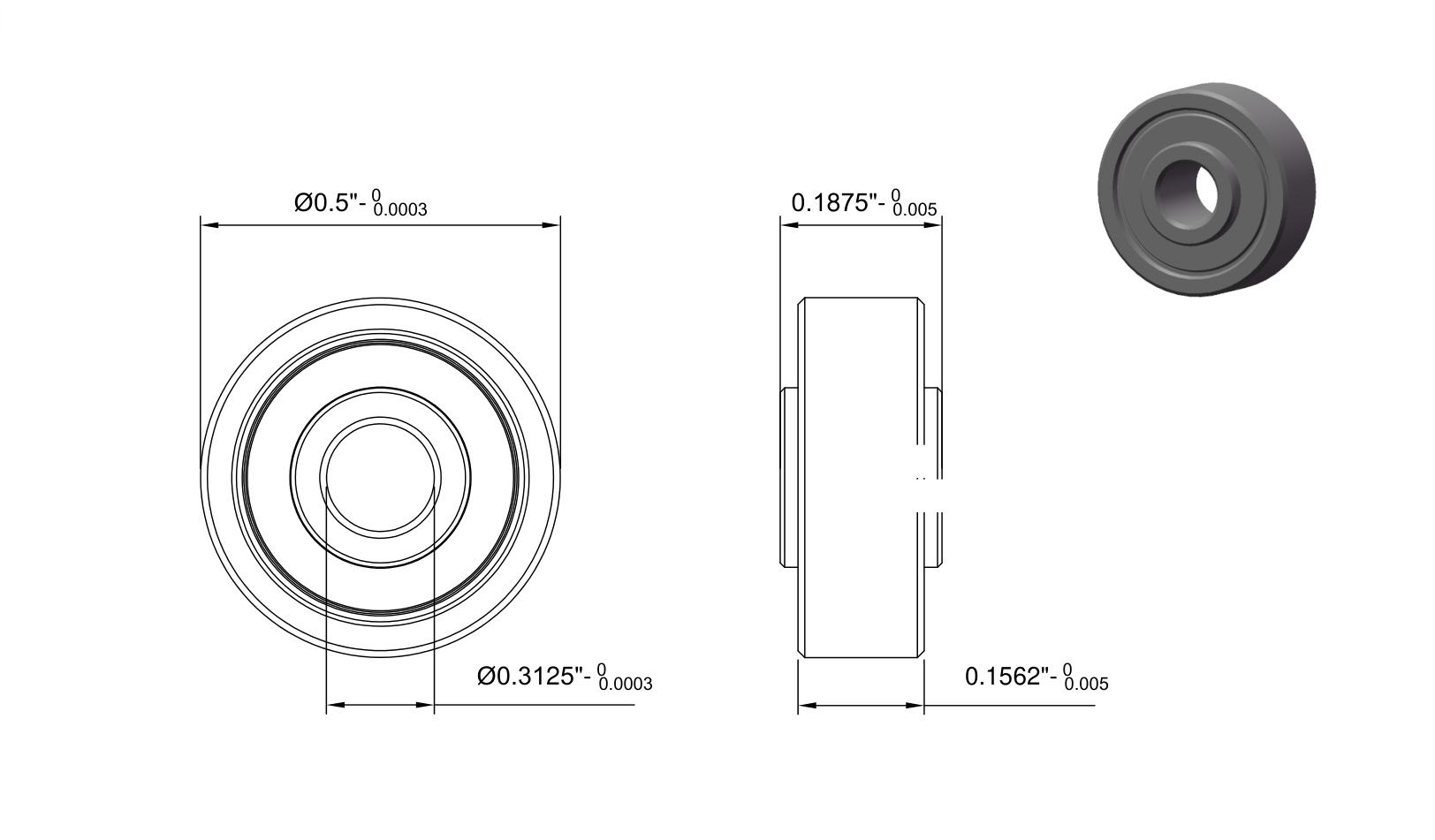

Bore Dia 0.3125″
Bore Dia Tolerance -0.0003″ to 0″
Outer Dia 0.5″
Outer Dia Tolerance -0.0003″ to 0″
Width 0.1562″
Width Tolerance -0.005″ to 0″
Inner Ring Outer Dia 0.362″
Inner Ring Width 0.1875″
Ring Material 440C Stainless Steel
Ball Material 440C Stainless Steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Radial Load 94 lbf
Static Radial Load 45 lbf
Max Speed (X1000 rpm) 36
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -86 to 230 °F
ABEC Rating ABEC1
Radial Clearance Trade No MC3
Radial Clearance 0.00008″ to 0.0005″
RoHS Compliant
REACH Compliant
Ball Dia 0.0472″
Ball Qty 12
Weight 1.72 g
