Part Number | T45751-90012 |
System of Measurement | Inch |
Type | Bearing |
Bearing Type | Roller |
Roller Bearing Type | Tapered |
For Load Direction | Thrust |
Seal Type | Open |
Series | TTHD |
Bore Dia | 45.75″ |
Bore Dia Tolerance | +0.001″ to 0 |
Outer Dia | 50.5″ |
Outer Dia Tolerance | +0.001″ to 0 |
Width | 2.248″ |
Width Tolerance | +0.0150″ to -0.0150 |
Ring Thickness | 0.814″ |
Fillet Radius Shaft | 0.13″ |
Fillet Radius Housing | 0.13″ |
Inner Dia Housing Washer | 45.75″ |
Outer Dia Shaft Washer | 50.5″ |
Shoulder Diameter Shaft | 49.45″ |
Shoulder Diameter Housing | 46.46″ |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Steel |
Dynamic Thrust Load | 139000 lbf |
Static Thrust Load | 4280000 lbf |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
RoHS | Compliant |
REACH | Compliant |
Weight | 80.7kg |

T45751-90012

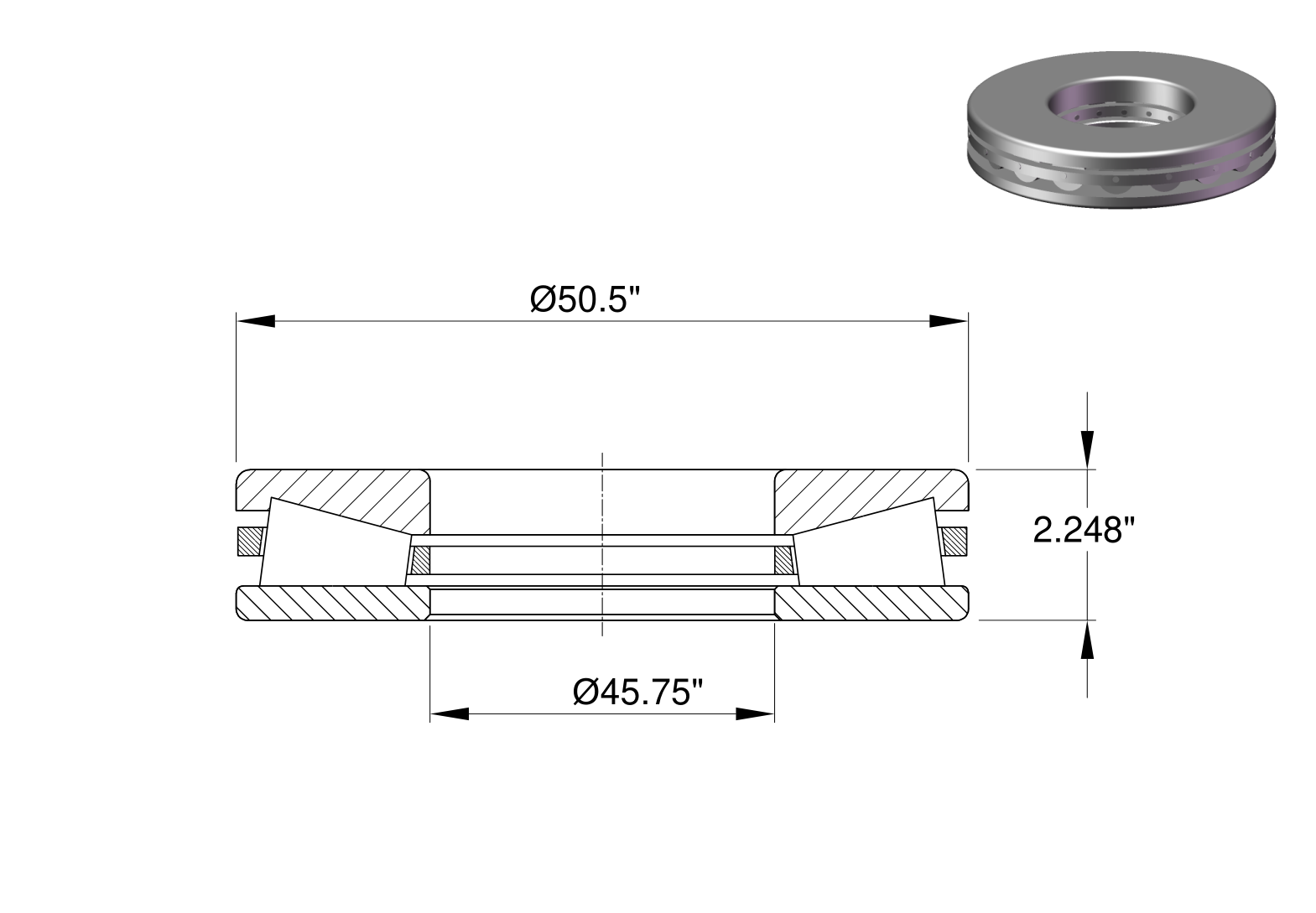

Design Features of T45751-90012 Bearing
T45751-90012 features a flat design that allows for easy installation and alignment. T45751-90012 outer dia is 50.5″. Its bore dia is 45.75″. Its robust construction ensures durability and effective load handling in various applications.
What Benefits Can T45751-90012 Bearing Provide?
- Easy Installation: Its flat design simplifies installation and alignment, saving time during setup.
- Durability: Built with high-quality materials, it provides long-lasting performance even under heavy loads.
- Effective Load Handling: Designed to manage both radial and axial loads efficiently, enhancing overall machinery performance.
- Versatility: Suitable for a wide range of applications, making it a flexible choice for different industries.
- Reduced Maintenance: Its robust construction and efficient design minimize wear, leading to lower maintenance needs.
What Can T45751-90012 Bearing Be Used for?
- Industrial Machinery: Ideal for conveyors, pumps, and fans where load handling and durability are essential.
- Automotive Applications: Used in vehicle components that require reliable performance under varying loads.
- Agricultural Equipment: Suitable for machinery like tractors and harvesters, providing stability and support.
- Construction Equipment: Found in heavy machinery, ensuring smooth operation in demanding environments.
- Robotics: Utilized in robotic systems that require precision and reliable motion.
