53316

Design Features of 53316 Bearing

53316 Bearing is a type of rolling-element bearing designed explicitly to handle axial loads in one direction. 53316 bore dia is 80 mm. Its out dia is 140 mm. 53316 height is Height. This bearing comprises a shaft washer affixed to the rotating shaft, paired with a stationary housing washer. Spherical balls, positioned between these washers, mitigate friction and facilitate smooth rotation. A dedicated cage maintains uniform spacing among the balls, preventing contact and assisting in lubricant distribution.



What Benefits Can 53316 Bearing Provide?

  • Axial Load Handling: This bearing is made to manage one-way axial loads efficiently.
  • Space-saving: Its design is compact, ideal for tight spaces.
  • Smooth Operation: Balls reduce friction, ensuring smoother rotation.
  • Speed: Due to its precision crafting, this bearing is suited for high-speed applications.
  • Alignment Flexibility: Variants with grooved aligning seat washers can accommodate minor shaft misalignments, enhancing operational reliability.



What Can 53316 Bearing Be Used for?

53316 Bearing is integral in a wide array of applications owing to their ability to manage axial loads efficiently. Here are some common applications:

  • Industrial Machinery: Often used in high-speed radial drilling machines.
  • Automotive Sector: Applied in systems like clutches for efficient axial load management.
  • Aerospace Industry: Incorporated in various components for reliable high-speed operations.
  • Home Appliances: Used in devices like washing machines to reduce friction.
  • Precision Instruments: Essential in printer peripherals for accurate axial load control.

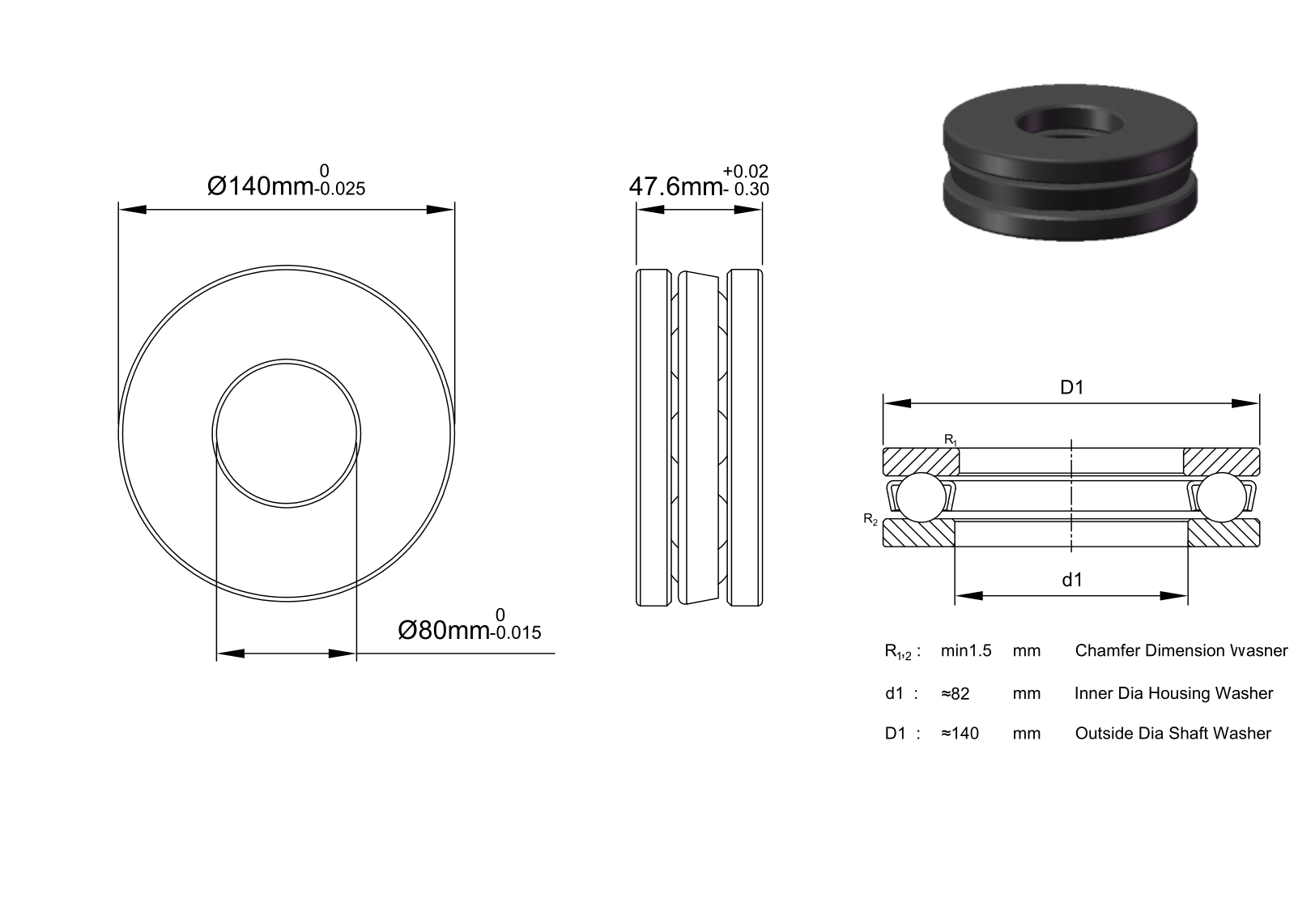

Part Number 53316
Brand: BearingMaker Interchangeable With: SKF
System of Measurement Metric
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Bore Dia 80 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 140 mm
Outer Dia Tolerance -0.025mm to 0
Width 47.6 mm
Width Tolerance +0.02mm to -0.3mm
Outer Dia Shaft Washer 140 mm
Inner Dia Housing Washer 82 mm
Chamfer Dimension 1.5 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Stainless Steel
Dynamic Thrust Load 35775 lbf
Static Thrust Load 87750 lbf
Max Speed (X1000 rpm) 2.2
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Weight 3.2 kg
