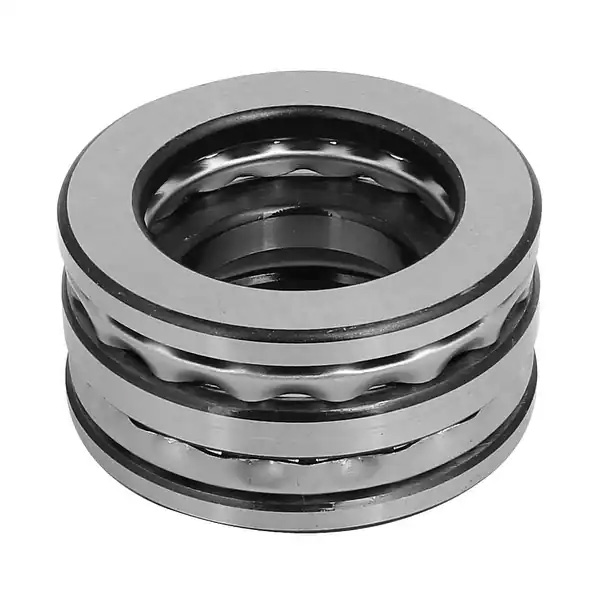

Double-Direction Thrust Ball Bearings

Double Direction Thrust Ball Bearings are engineered to handle axial thrust loads in both directions, offering reliable performance for demanding applications. With bore diameters ranging from 10mm to 150mm, these bearings are ideal for space-efficient assemblies and are fully interchangeable with SKF models.

+ read more ↓

Overview of Double Direction Thrust Ball Bearings

Double Direction Thrust Ball Bearings are precision components designed to accommodate axial loads in both directions. Their unique construction enables bidirectional load handling, making them a dependable solution in applications that require axial support from either side of a shaft.

Key Features

Bidirectional Load Capacity: Able to support axial thrust loads in both directions, which makes them suitable for reversing axial load applications.
Compact Design: Optimized for space-saving installations without compromising on performance.
Precision Engineering: Manufactured to high tolerance levels to ensure smooth operation and reduced friction.
Wide Bore Range: Available in bore diameters from 10mm to 150mm, suitable for various industrial needs.
Interchangeable With SKF: Compatible with SKF bearings for easy replacement and integration into existing systems.

Construction and Working Principle
These bearings consist of three rings: a shaft washer, two housing washers, and two ball assemblies. The configuration allows the bearing to transmit thrust loads in both directions while maintaining stability and rotational smoothness. The separable design also simplifies installation, inspection, and maintenance.

Typical Applications

Gearboxes: Supports axial forces generated during gear shifts or load reversals.
Machine Tools: Ensures precise axial alignment in spindles and rotating machinery.
Pumps & Compressors: Provides axial stability for rotating elements exposed to bidirectional thrust.
Marine and Aerospace Equipment: Ideal for environments where compactness and bidirectional force handling are critical.

Advantages

Handles axial loads from both directions with a single bearing unit.
Reduces the need for additional components or bearing arrangements.
Facilitates precise alignment and reliable operation under variable load conditions.
Easy to install and maintain due to its separable construction.

How to Select the Right Bearing

Load Profile: Evaluate whether your application requires support for axial forces in both directions.
Space Constraints: Choose a bearing that fits within your available mounting dimensions.
Speed and Precision Needs: Ensure the bearing matches the operating speed and tolerance requirements.
Compatibility: Consider interchangeability with brands like SKF for maintenance flexibility.

Conclusion
With their ability to handle axial loads in both directions, Double Direction Thrust Ball Bearings offer a reliable, space-efficient, and high-performance solution across a wide range of mechanical and industrial applications. Their durability and compatibility make them a go-to choice for engineers seeking efficiency and performance in axial load-bearing systems.
