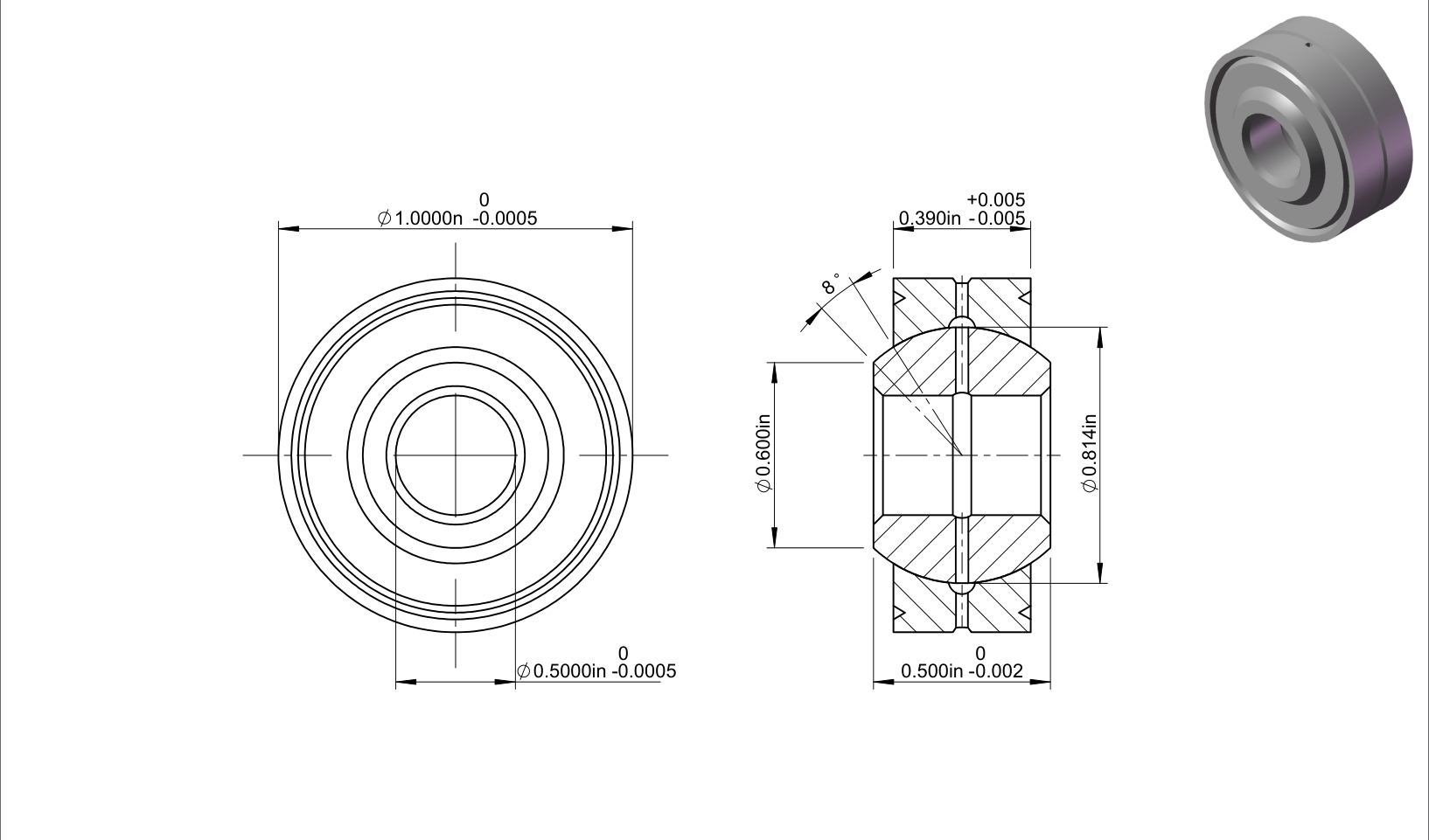

| Part Number | ABG8VA(L) |
| System of Measurement | Inch |
| Bore Dia | 0.5″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.5″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.39″ |
| Diameter Lubrication Hole | 0.062″ |
| Shoulder Dia | 0.6″ |
| Pitch Dia | 0.878″ |
| Mis Alignment | 8° |
| Groove Width | 0.078 |
| Groove Radius | 0.065″ |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(X) | 0.08″ |
| Ball Dia Bronze Race | 0.814″ |
| Ball Dia Steel Race | 0.814″ |
| Dynamic Radial Load | 18850 lbs |
| Static Radial Load | 7050 lbs |
| Weight | 0.07 lbs |
