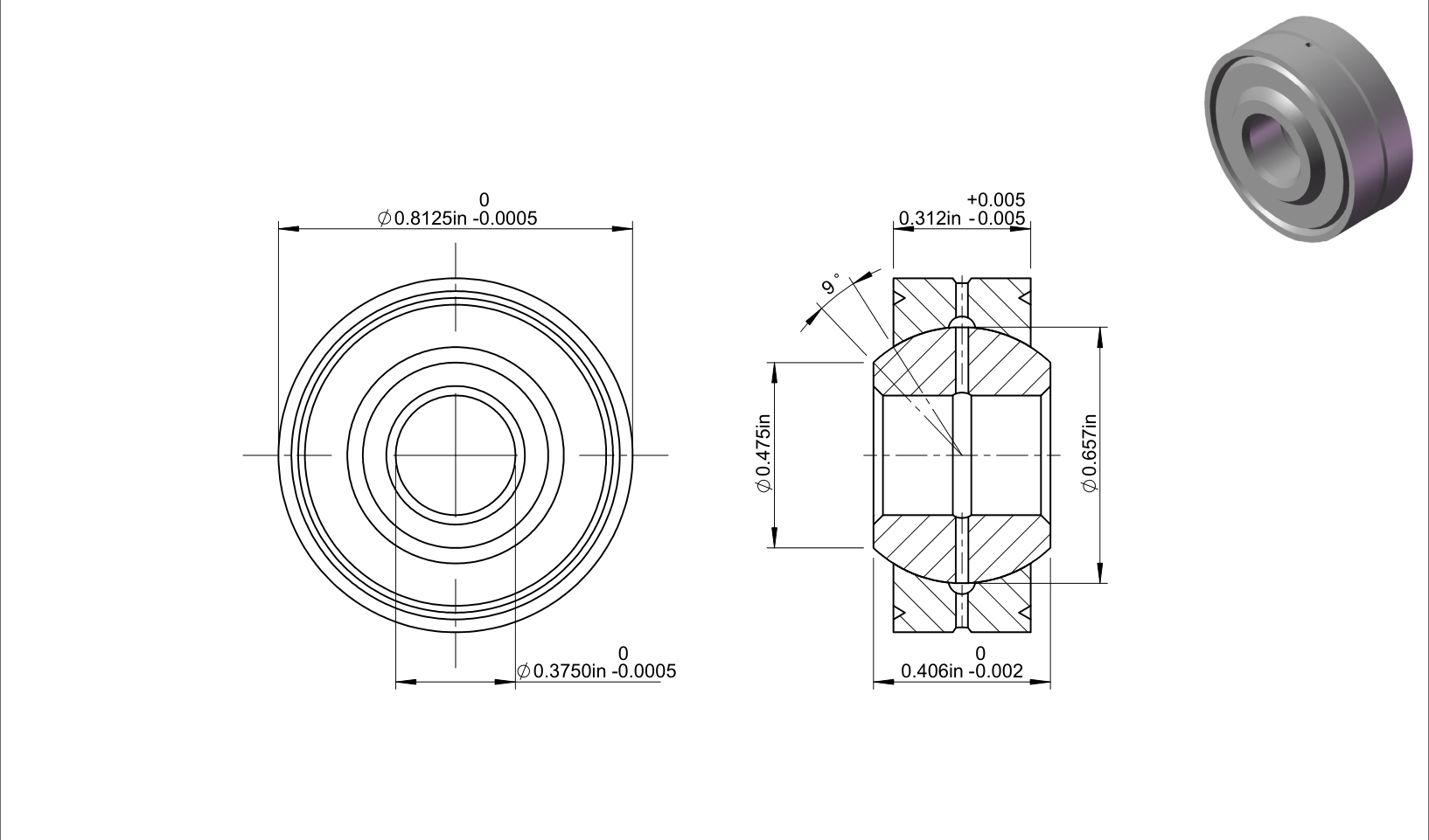

ABG6VA(L)
| Part Number | ABG6VA(L) |
| System of Measurement | Inch |
| Bore Dia | 0.375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.8125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.406″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.312″ |
| Diameter Lubrication Hole | 0.062″ |
| Shoulder Dia | 0.475″ |
| Pitch Dia | 0.714″ |
| Mis Alignment | 9° |
| Groove Width | 0.078 |
| Groove Radius | 0.065″ |
| Staking groove Data(P) | 0.04″ |
| Staking groove Data(X) | 0.055″ |
| Ball Dia Bronze Race | 0.657″ |
| Ball Dia Steel Race | 0. 657″ |
| Dynamic Radial Load | 11050 lbs |
| Static Radial Load | 4400 lbs |
| Weight | 0.04 lbs |
$114.19
