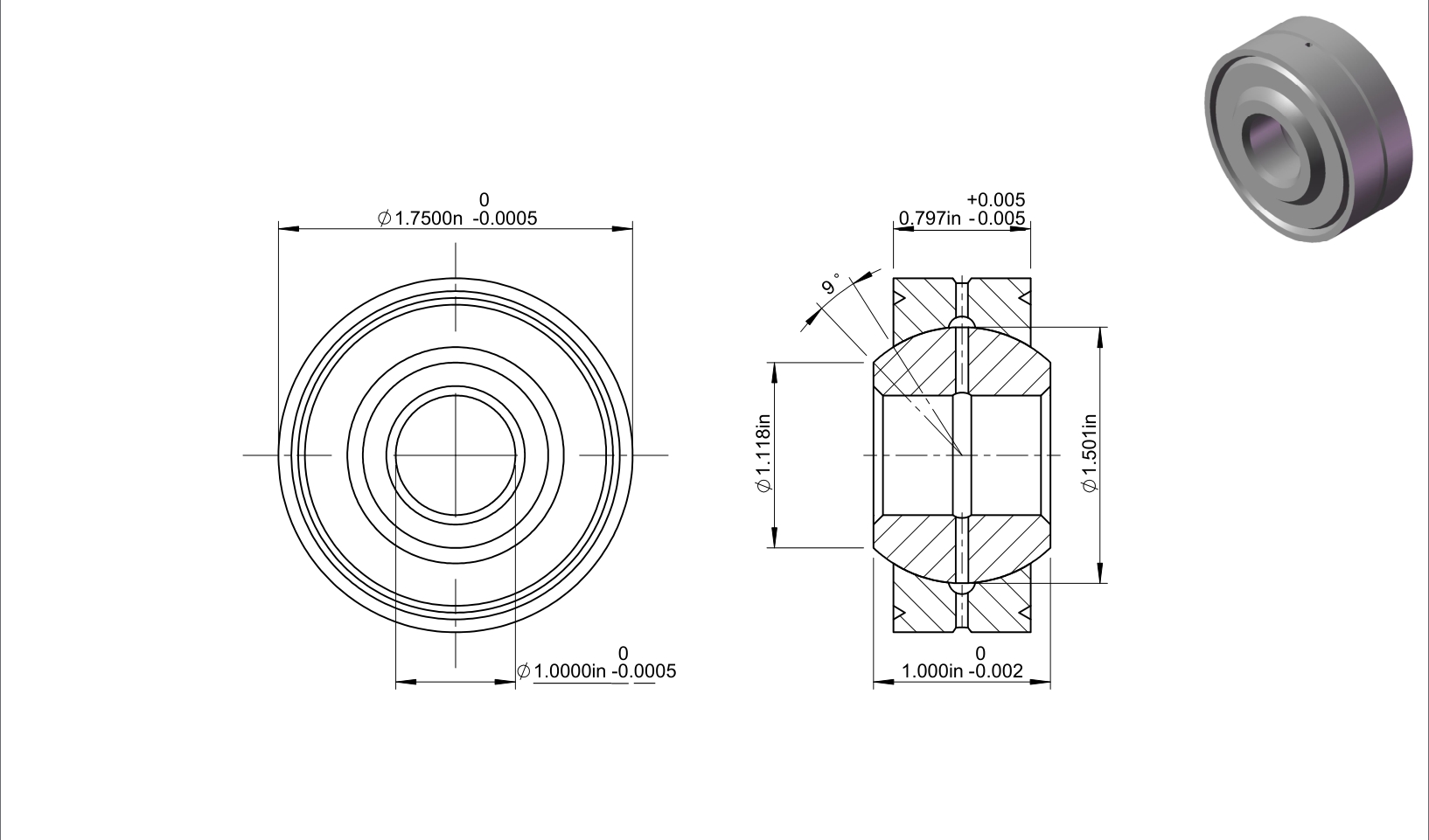

ABG16VA-501(L)
| Part Number | ABG16VA-501(L) |
| System of Measurement | Inch |
| Bore Dia | 1″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.75″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.797″ |
| Diameter Lubrication Hole | 0.078″ |
| Shoulder Dia | 1.118″ |
| Pitch Dia | 1.628″ |
| Mis Alignment | 9° |
| Groove Width | 0.093 |
| Groove Radius | 0.088″ |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(X) | 0.08″ |
| Ball Dia Bronze Race | 1.563″ |
| Ball Dia Steel Race | 1.501″ |
| Dynamic Radial Load | 51000 lbs |
| Static Radial Load | 12000 lbs |
| Weight | 0.39 lbs |
$275.28
