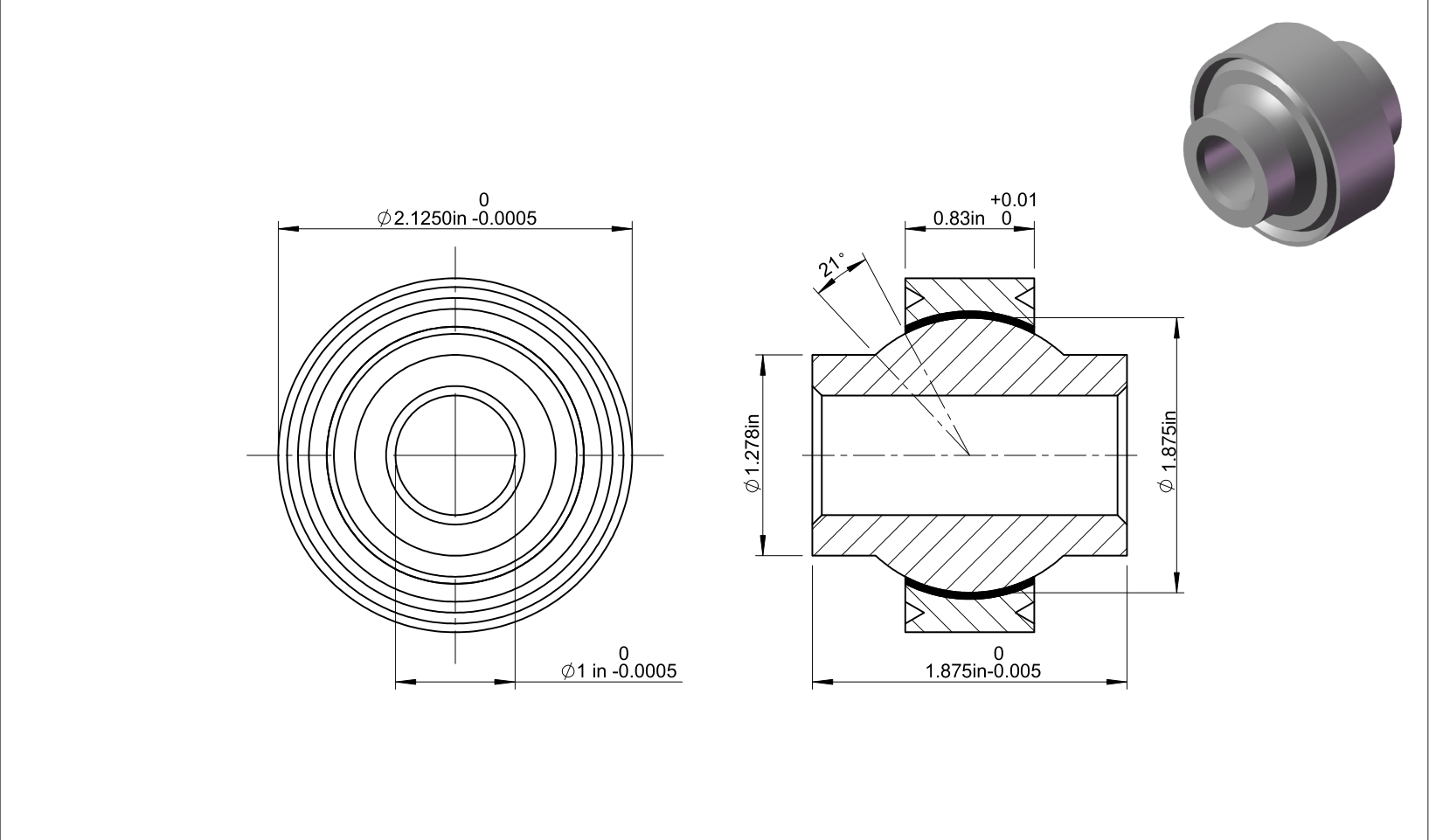

| Part Number | ADBY16V(L) |
| System of Measurement | Inch |
| Bore Dia | 1″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.875″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.83″ |
| Race Width Tolerance | +0.010″ to 0″ |
| Shoulder Dia | 1.278″ |
| Ball Dia | 1.875″ |
| Race Chamfered | 0.04″ |
| Mis Alignment | 21° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 111280 lbs |
| Static Radial Load | 55640 lbs |
| Weight | 0.831 lbs |
