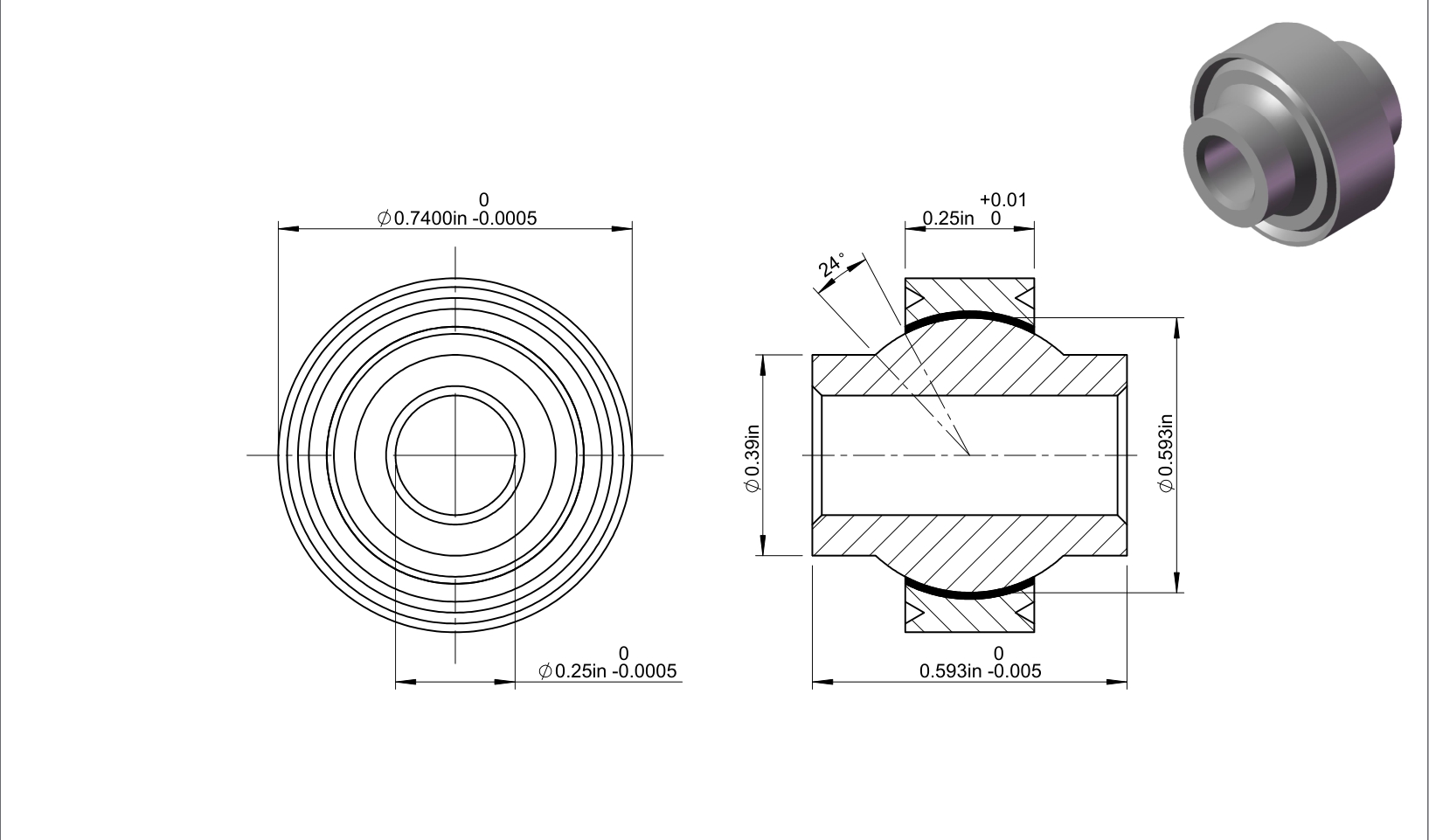

ADBY4V(L)
| Part Number | ADBY4V(L) |
| System of Measurement | Inch |
| Bore Dia | 0.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.74″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.593″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.25″ |
| Race Width Tolerance | +0.010″ to 0″ |
| Shoulder Dia | 0.39″ |
| Ball Dia | 0.593″ |
| Race Chamfered | 0.02″ |
| Mis Alignment | 24° |
| Staking groove Data(P) | 0.03″ |
| Staking groove Data(R) | 0.015″ |
| Staking groove Data(S) | 0.02″ |
| Staking groove Data(X) | 0.045″ |
| Dynamic Radial Load | 10790 lbs |
| Static Radial Load | 5390 lbs |
| Weight | 0.036 lbs |
$91.76
