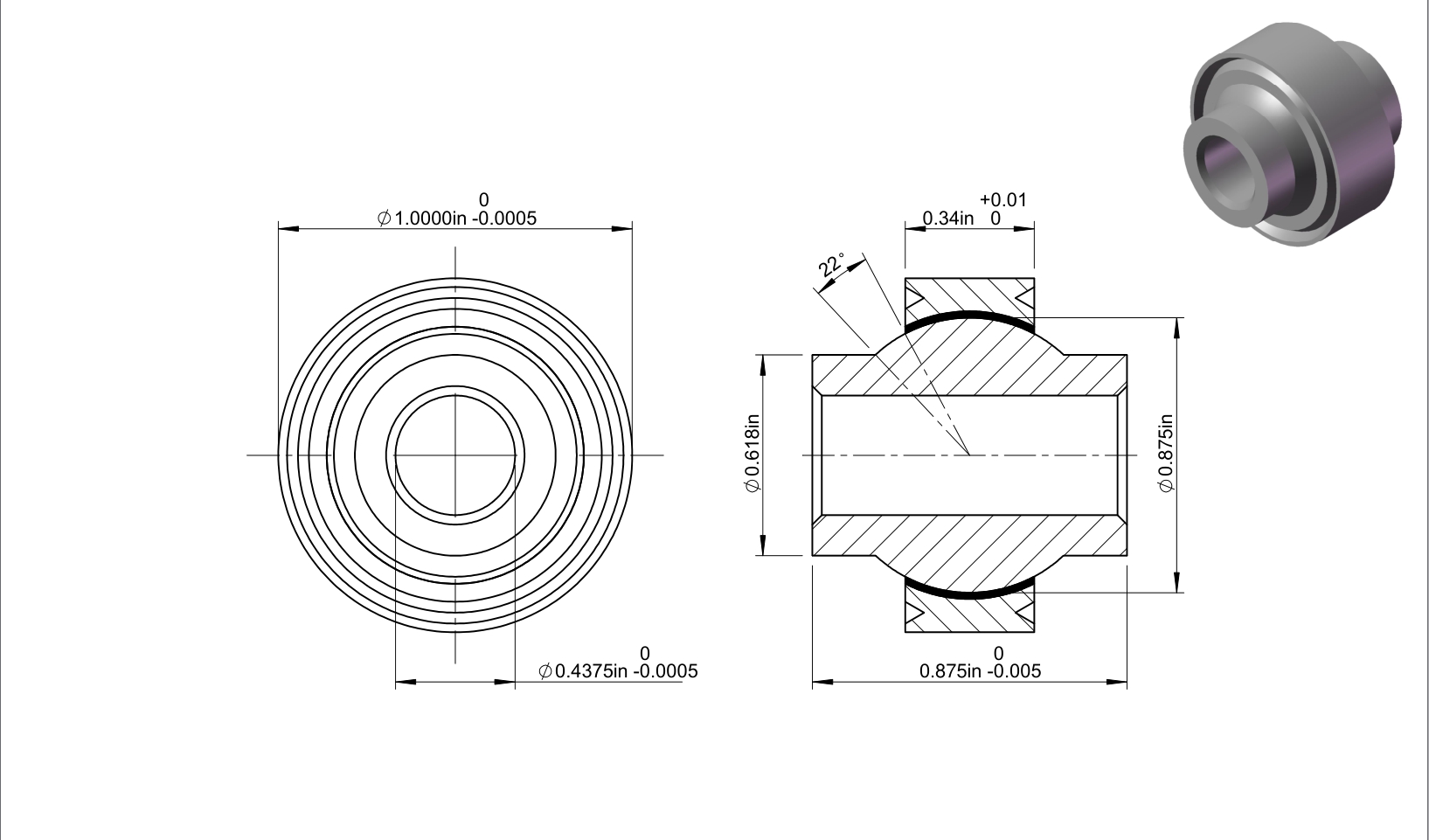

ADBY7V(L)
| Part Number | ADBY7V(L) |
| System of Measurement | Inch |
| Bore Dia | 0.4375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.875″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.34″ |
| Race Width Tolerance | +0.010″ to 0″ |
| Shoulder Dia | 0.618″ |
| Ball Dia | 0.875″ |
| Race Chamfered | 0.03″ |
| Mis Alignment | 22° |
| Staking groove Data(P) | 0.03″ |
| Staking groove Data(R) | 0.015″ |
| Staking groove Data(S) | 0.02″ |
| Staking groove Data(X) | 0.045″ |
| Dynamic Radial Load | 21720 lbs |
| Static Radial Load | 10860 lbs |
| Weight | 0.095 lbs |
$166.53
