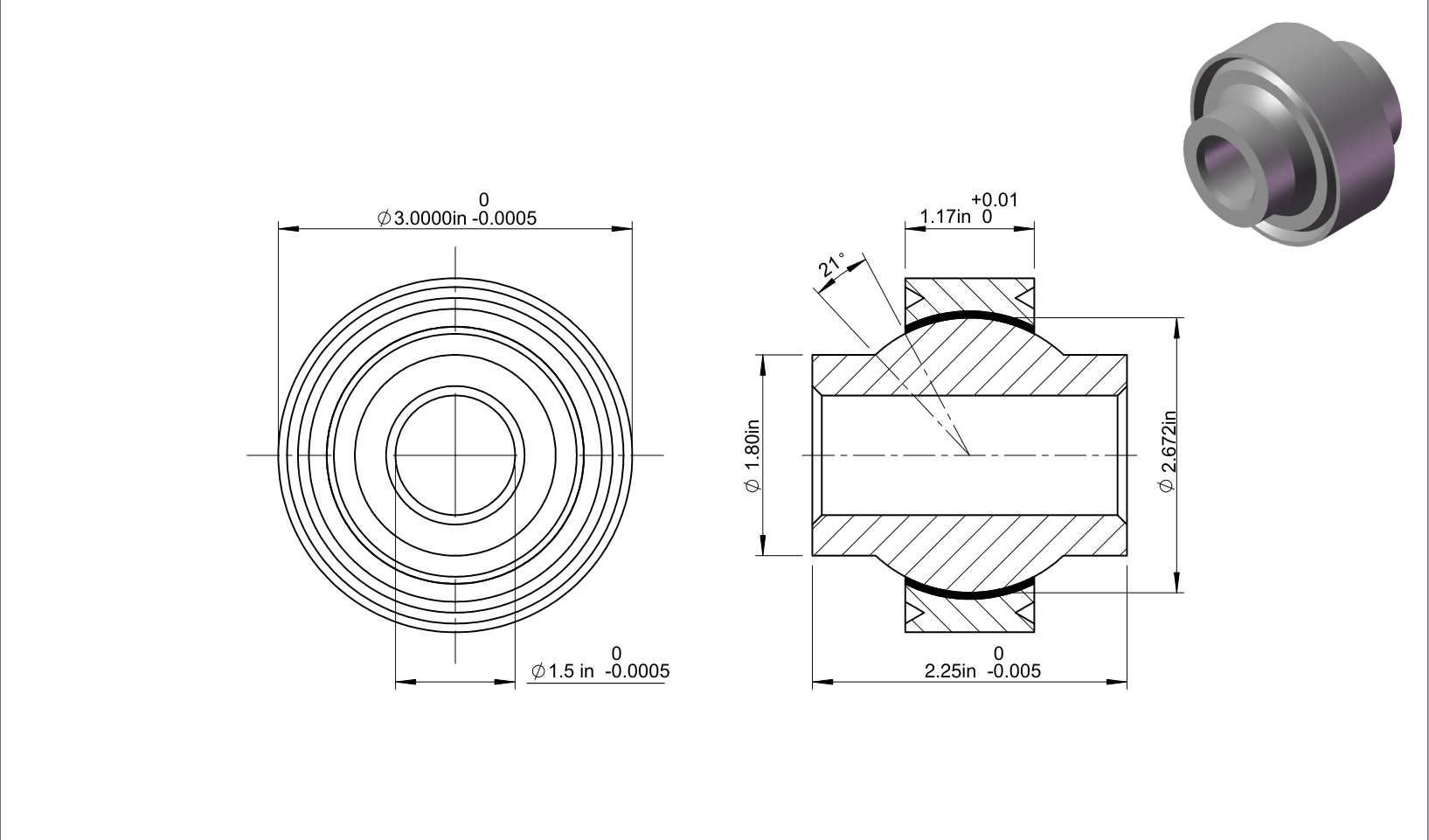

| Part Number | ADBY24V(L) |
| System of Measurement | Inch |
| Bore Dia | 1.5″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 3.0000″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 2.25″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 1.17″ |
| Race Width Tolerance | +0.010″ to 0″ |
| Shoulder Dia | 1.8″ |
| Ball Dia | 2.672″ |
| Race Chamfered | 0.04″ |
| Mis Alignment | 21° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 223470 lbs |
| Static Radial Load | 111740 lbs |
| Weight | 2.223 lbs |
