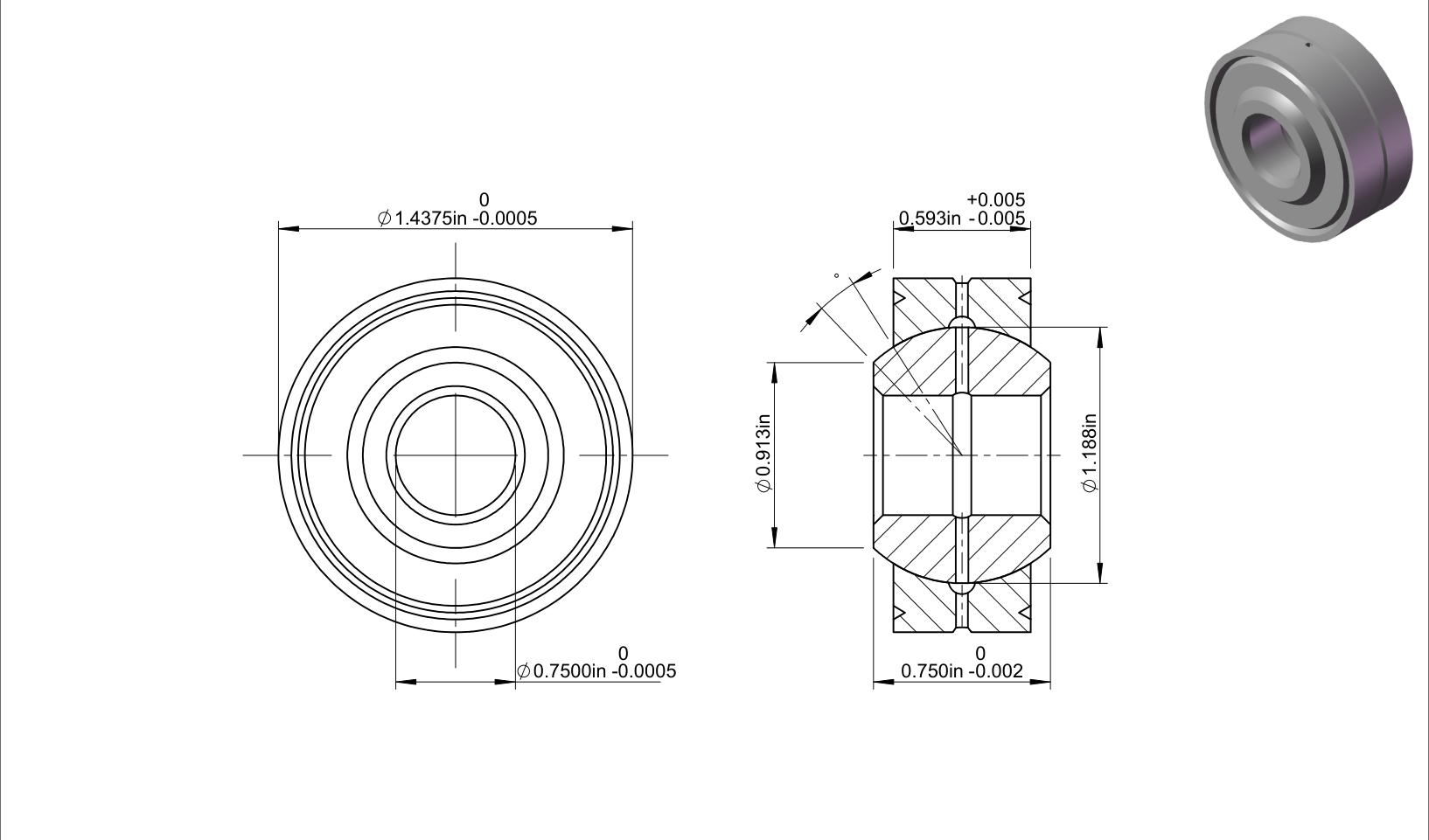

| Part Number | AGB12V |
| System of Measurement | Inch |
| Bore Dia | 0.75″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.4375″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.75″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.593″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Diameter Lubrication Hole | 0.062-0.078″ |
| Shoulder Dia | 0.913″ |
| Ball Dia | 1.188″ |
| Pitch Dia | 1.315″ |
| Groove Width | 0.073-0.109 |
| Groove Radius | 0.070-0.125″ |
| Staking groove Data(P) | 0.03″ |
| Staking groove Data(X) | 0.06″ |
| Dynamic Radial Load | 50000 lbs |
| Static Radial Load | 11440 lbs |
| Weight | 0.21 lbs |
