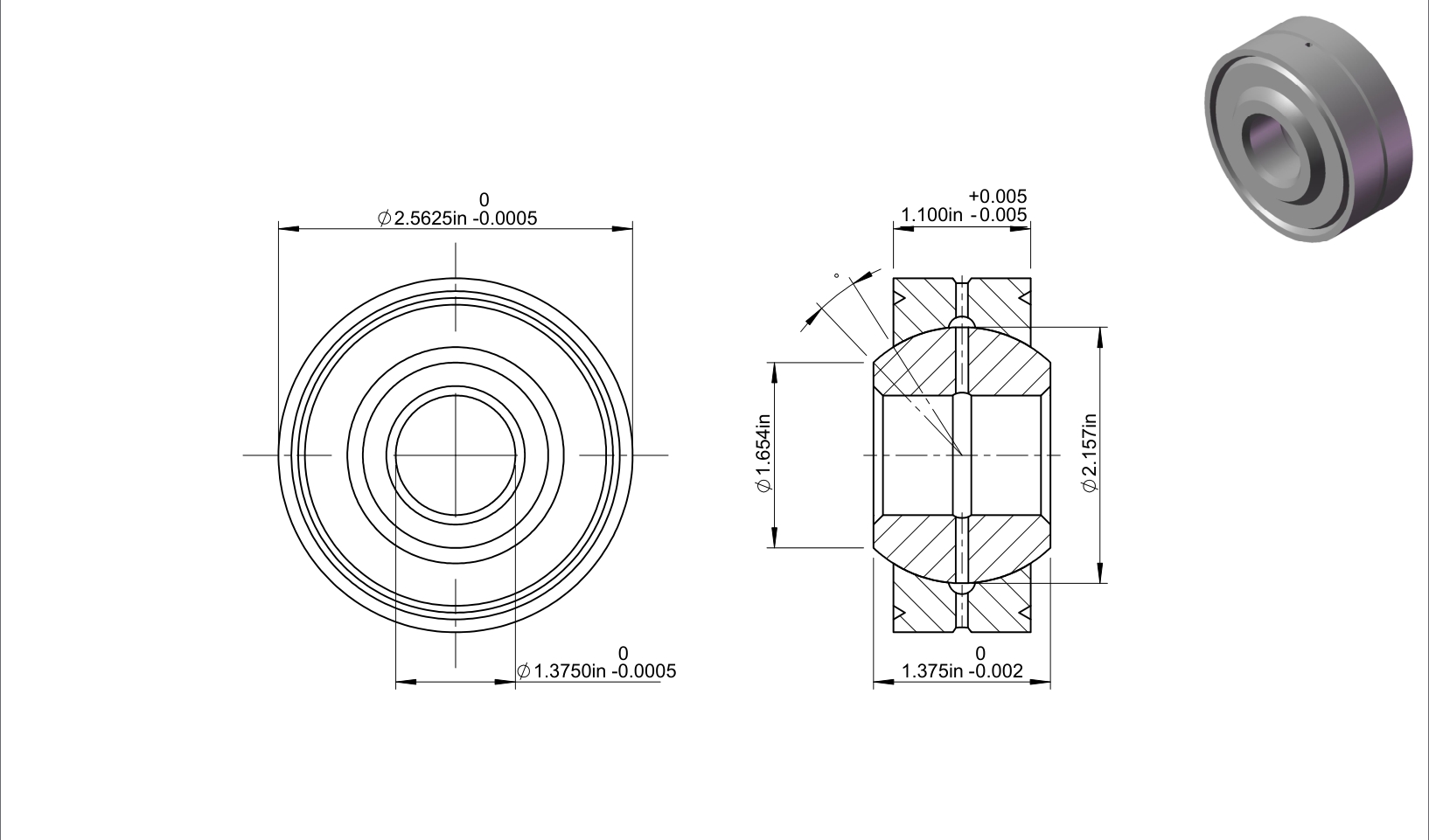

AGB22V
| Part Number | AGB22V |
| System of Measurement | Inch |
| Bore Dia | 1.375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.5625″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.375″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 1.1″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Diameter Lubrication Hole | 0.078-0.093″ |
| Shoulder Dia | 1.654″ |
| Ball Dia | 2.157″ |
| Pitch Dia | 2.44″ |
| Groove Width | 0.082-0.109 |
| Groove Radius | 0.090-0.125″ |
| Staking groove Data(P) | 0.03″ |
| Staking groove Data(X) | 0.06″ |
| Dynamic Radial Load | 186000 lbs |
| Static Radial Load | 40120 lbs |
| Weight | 1.28 lbs |
