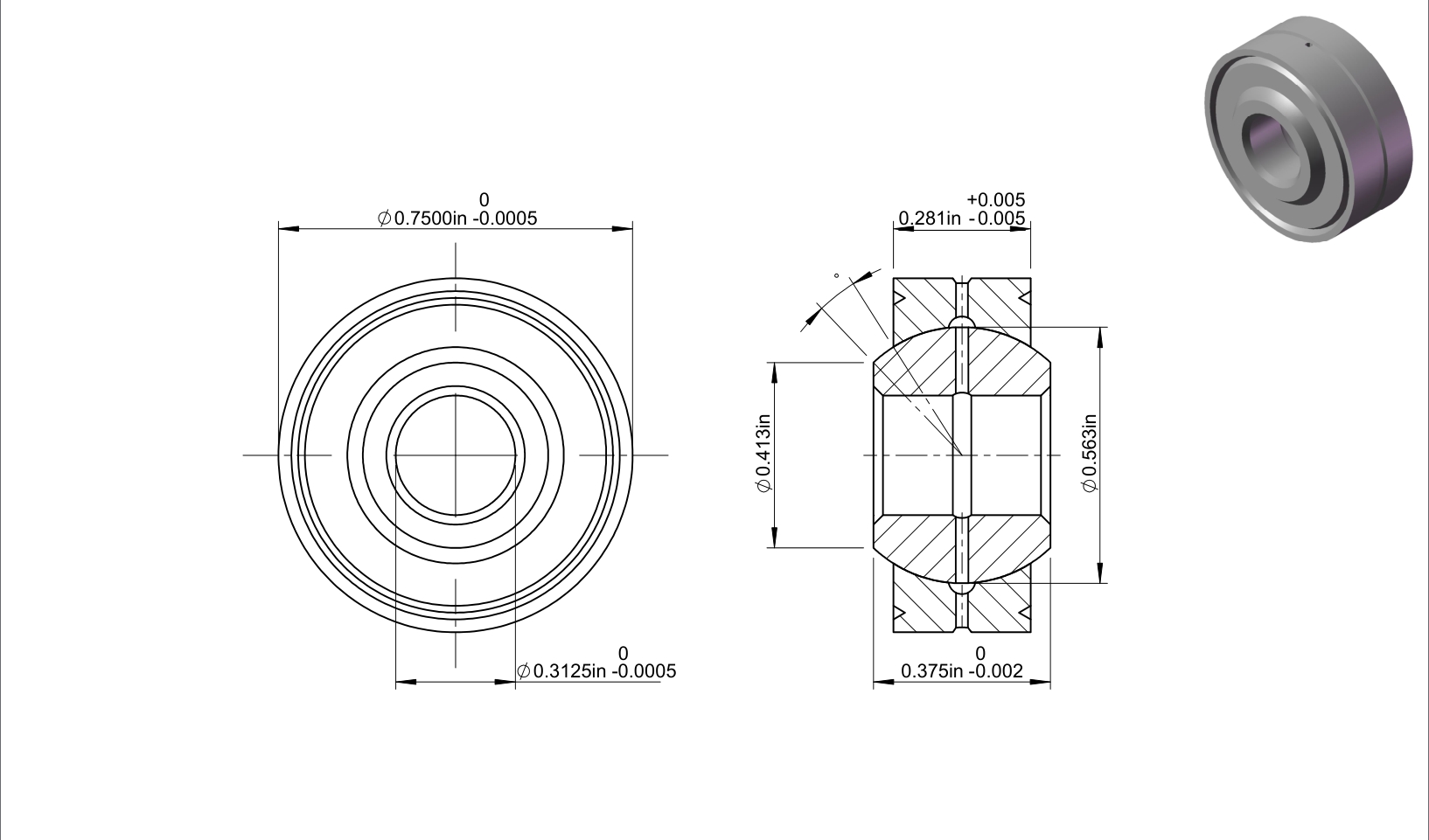

AGB5V
| Part Number | AGB5V |
| System of Measurement | Inch |
| Bore Dia | 0.3125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.75″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.375″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.281″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Diameter Lubrication Hole | 0.042-0.062″ |
| Shoulder Dia | 0.413″ |
| Ball Dia | 0.563″ |
| Pitch Dia | 0.652″ |
| Groove Width | 0.042-0.078 |
| Groove Radius | 0.030-0.062″ |
| Staking groove Data(P) | 0.03″ |
| Staking groove Data(X) | 0.04″ |
| Dynamic Radial Load | 8460 lbs |
| Static Radial Load | 2450 lbs |
| Weight | 0.03 lbs |
$91.76
