FRW1-4

Design Features of FRW1-4 Bearing

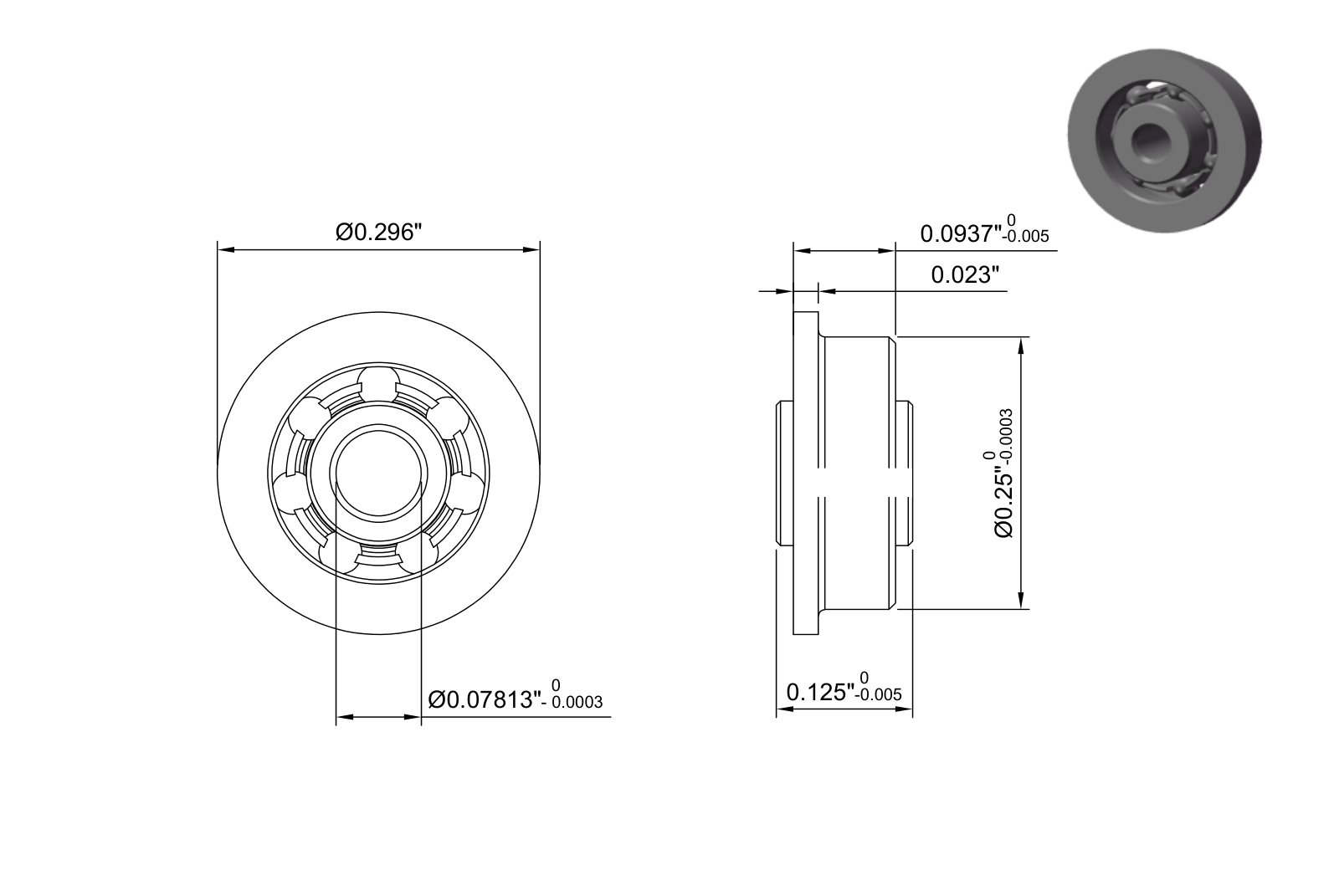

FRW1-4 Bearing is designed to provide enhanced shaft support and improved alignment. FRW1-4 bore dia is 0.07813″. Its out dia is 0.25″. FRW1-4 flange outer dia is 0.296″ and its flange thickness is 0.023″. FRW1-4 inner ring outer dia is Inner_Ring_0.25″ and its inner ring width is 0.125″. The flange and extended inner ring work together to limit axial movement and keep the bearing in place.

What Benefits Can FRW1-4 Bearing Provide?

• Enhanced Axial Load Support: Due to the extended inner ring, FRW1-4 bearing can manage higher axial loads.
• Augmented Rigidity: This bearing assembly gains additional stability from the extended inner ring.
• Simplified Mounting: The extended inner ring facilitates easier mounting.
• Better Alignment: The extended inner ring allows for improved alignment within the application.

What Can FRW1-4 Bearing Be Used for?

FRW1-4 Bearing is especially useful in applications where axial loads or vibrations are present, such as:

• Automotive Transmissions
• Electric Motors
• Robotics
• Conveyor Systems
• Pump and fan installations
