Design Features of SFRW2 Bearing

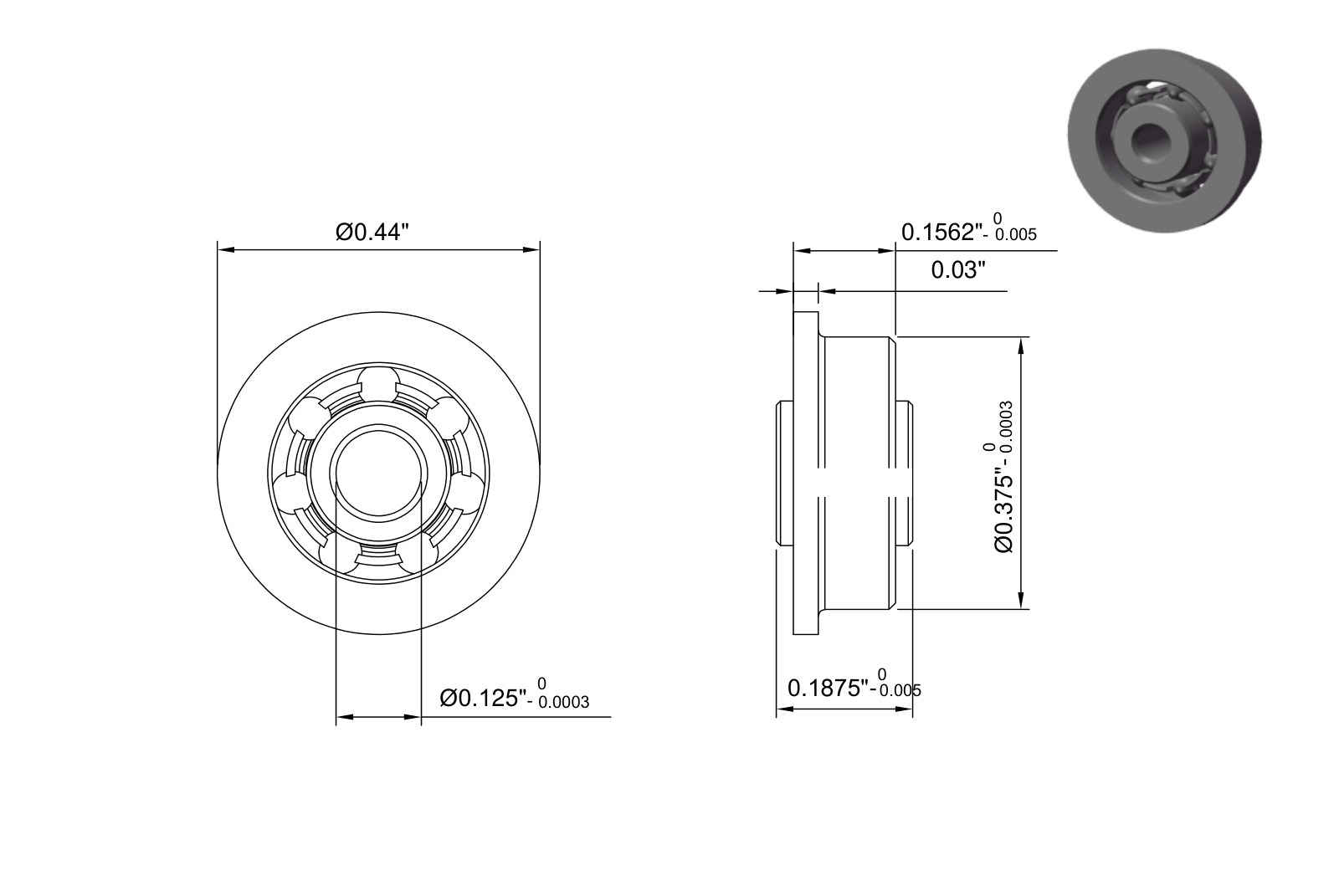

SFRW2 Bearing is designed to provide enhanced shaft support and improved alignment. SFRW2 bore dia is 0.125″. Its out dia is 0.375″. SFRW2 flange outer dia is 0.44″ and its flange thickness is 0.03″. SFRW2 inner ring outer dia is Inner_Ring_0.375″ and its inner ring width is 0.1875″. The flange and extended inner ring work together to limit axial movement and keep the bearing in place.
What Benefits Can SFRW2 Bearing Provide?
- Enhanced Axial Load Support: Due to the extended inner ring, SFRW2 bearing can manage higher axial loads.
- Augmented Rigidity: This bearing assembly gains additional stability from the extended inner ring.
- Simplified Mounting: The extended inner ring facilitates easier mounting.
- Better Alignment: The extended inner ring allows for improved alignment within the application.
What Can SFRW2 Bearing Be Used for?
SFRW2 Bearing is especially useful in applications where axial loads or vibrations are present, such as:
- Automotive Transmissions
- Electric Motors
- Robotics
- Conveyor Systems
- Pump and fan installations
