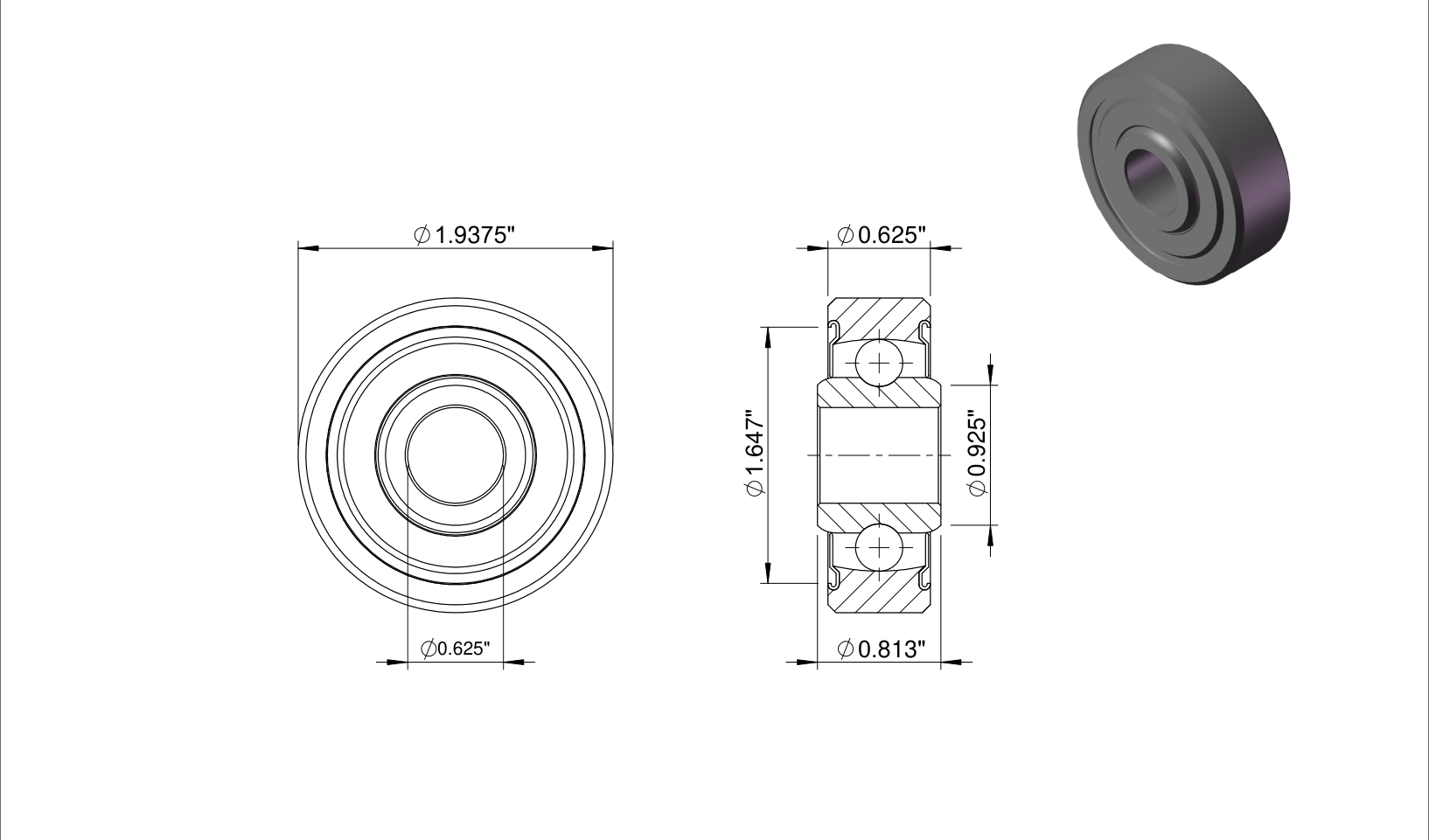

| Part Number | KSP10 |
| Standard Reference | MS27645-10 |
| System of Measurement | Inch |
| Bore Dia | 0.625″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.9375″ |
| Outer Dia Tolerance | -0.005″ to 0″ |
| Ring Width Outer Height | 0.625″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.813″ |
| Ring Width Inner Width Tolerance | -0.005″ to 0″ |
| Ball Complement No | 14 |
| Ball Complement Dia | 9/32″ |
| Ring Shoulder Outer | 1.647″ |
| Ring Shoulder Inner | 0.925″ |
| Ring Chamfer Outer | 0.044″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.015″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0″ to 0.001″ |
| Static Radial Load | 5320 lbs |
| Static Thrust Load | 600 lbs |
| Dynamic Radial Ring Inner Load | 4980 lbs |
| Dynamic Radial Ring Outer Load | 4360 lbs |
| Max Starting Torque | 6 oz-in |
| Weight | 0.37 lbs |
