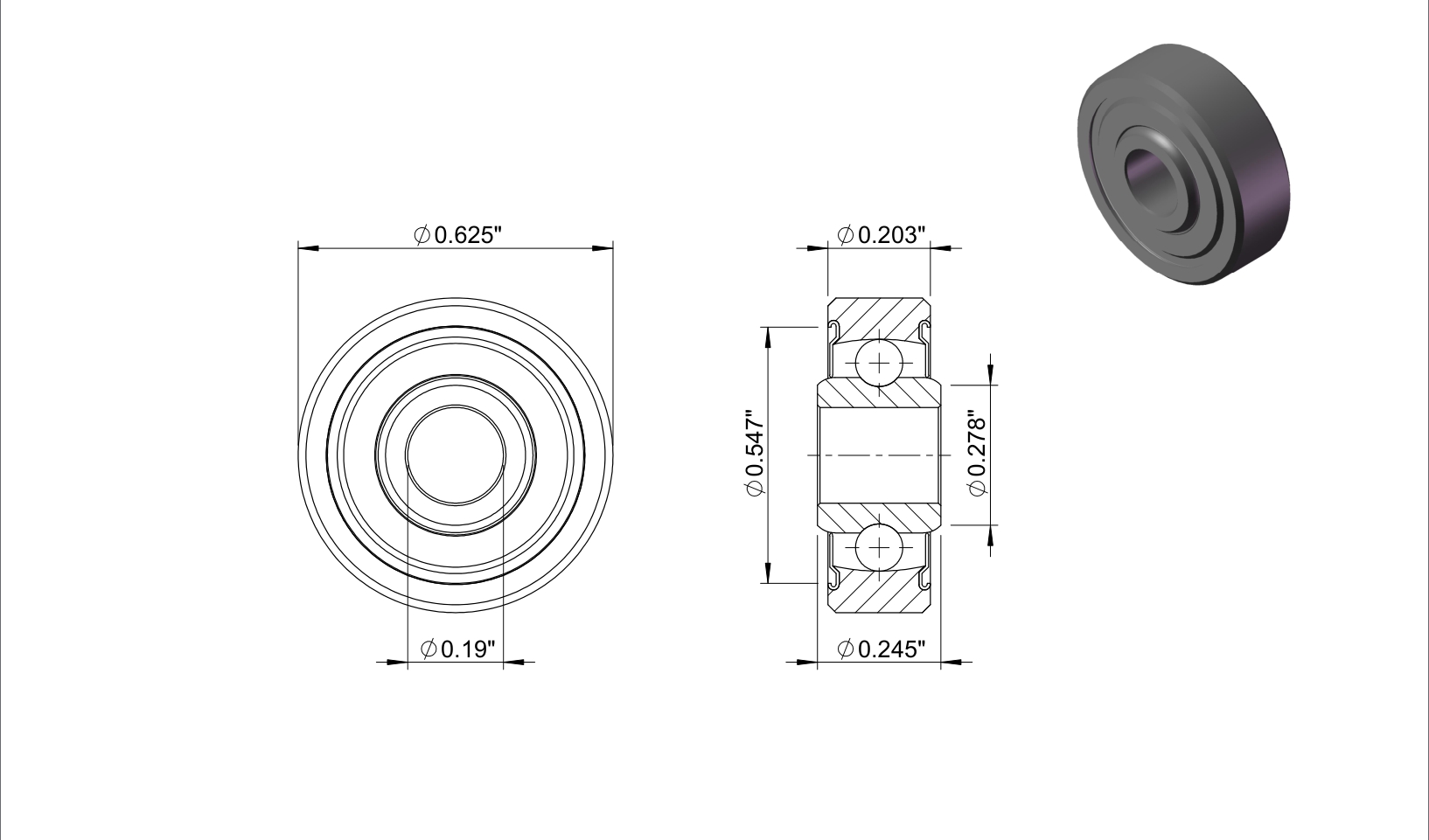

| Part Number | KSP3L |
| Standard Reference | MS27645-3A |
| System of Measurement | Inch |
| Bore Dia | 0.19″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.625″ |
| Outer Dia Tolerance | -0.005″ to 0″ |
| Ring Width Outer Height | 0.203″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.245″ |
| Ring Width Inner Width Tolerance | -0.005″ to 0″ |
| Ball Complement No | 13 |
| Ball Complement Dia | 3/32″ |
| Ring Shoulder Outer | 0.549″ |
| Ring Shoulder Inner | 0.278″ |
| Ring Chamfer Outer | 0.016″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.005″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0″ to 0.001″ |
| Static Radial Load | 550 lbs |
| Static Thrust Load | 100 lbs |
| Dynamic Radial Ring Inner Load | 550 lbs |
| Dynamic Radial Ring Outer Load | 480 lbs |
| Max Starting Torque | 1 oz-in |
| Weight | 0.01 lbs |
