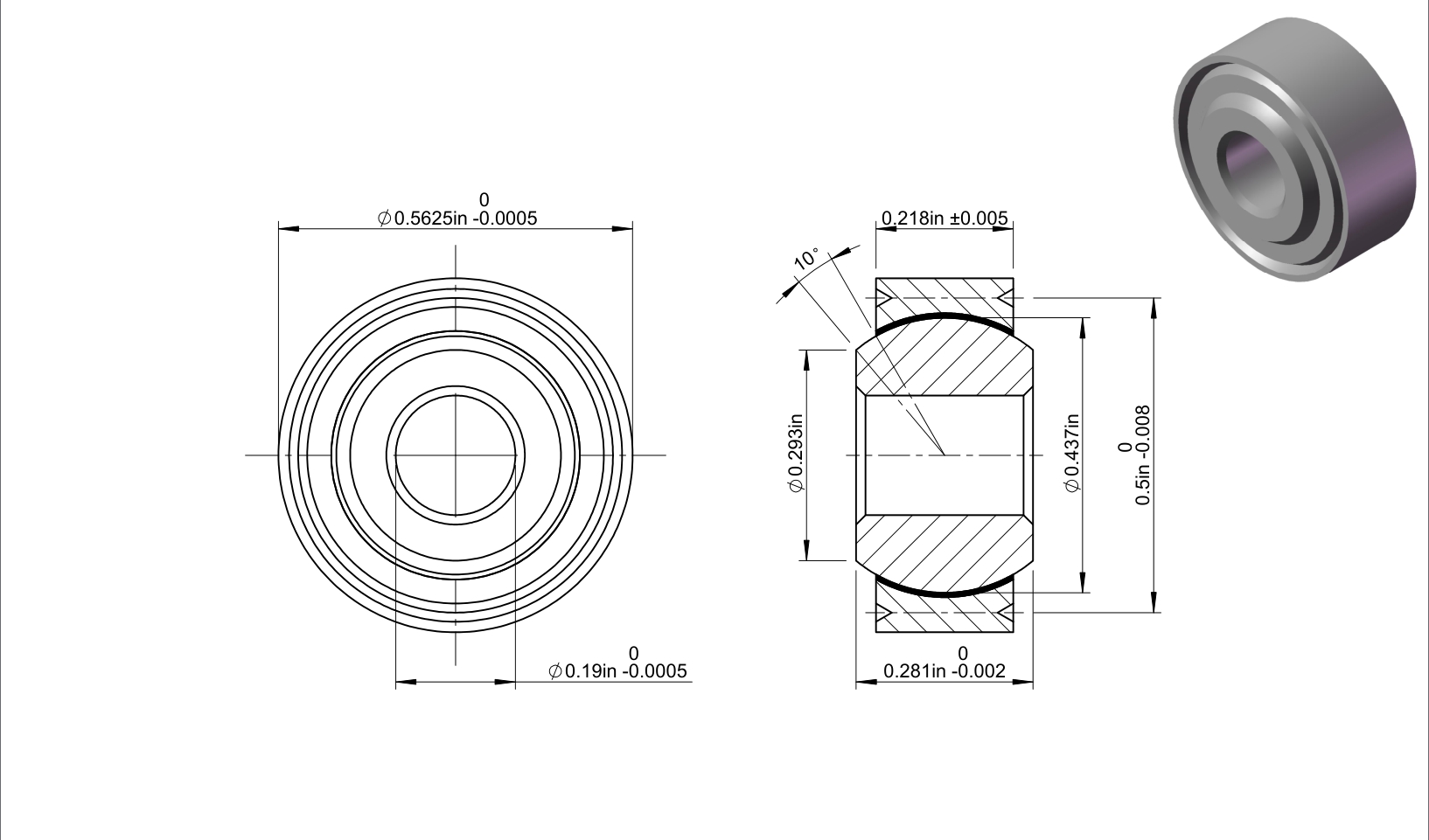

| Part Number | MKB3V |
| Standard Reference | MS14101A-3 |
| System of Measurement | Inch |
| Bore Dia | 0.19″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.5625″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.281″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.218″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.293″ |
| Ball Dia | 0.437″ |
| Pitch Dia | 0.5″ |
| Mis Alignment | 10° |
| Groove Depth | 0.025″ |
| Dynamic Radial Load | 1500 lbs |
| Static Radial Load | 3975 lbs |
| Weight | 0.02 lbs |
