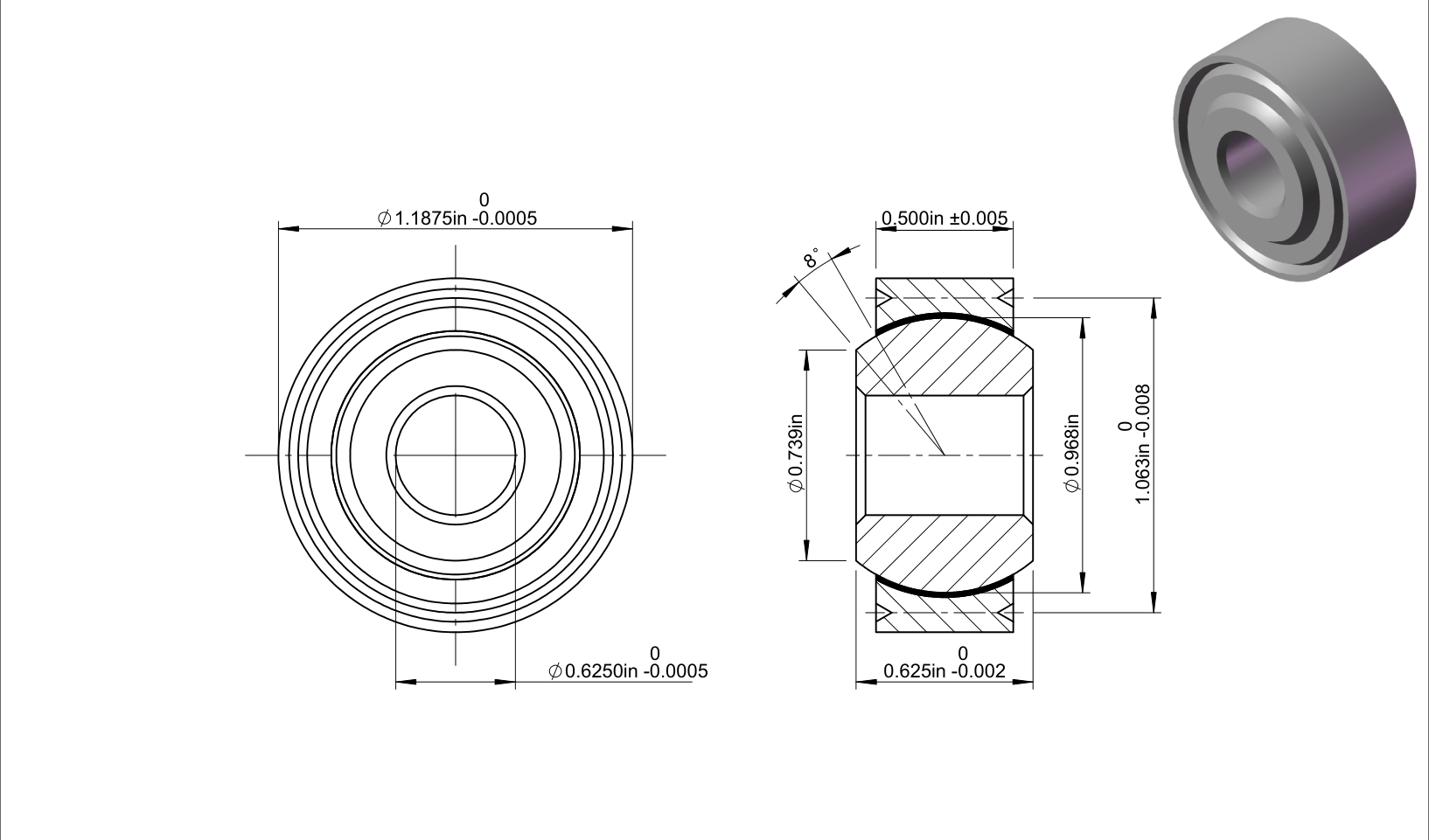

MKB10V
| Part Number | MKB10V |
| Standard Reference | MS14101A-10 |
| System of Measurement | Inch |
| Bore Dia | 0.625″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.1875″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.625″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.5″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.739″ |
| Ball Dia | 0.968″ |
| Pitch Dia | 1.063″ |
| Mis Alignment | 8° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 16450 lbs |
| Static Radial Load | 30500 lbs |
| Weight | 0.12 lbs |
$221.58
