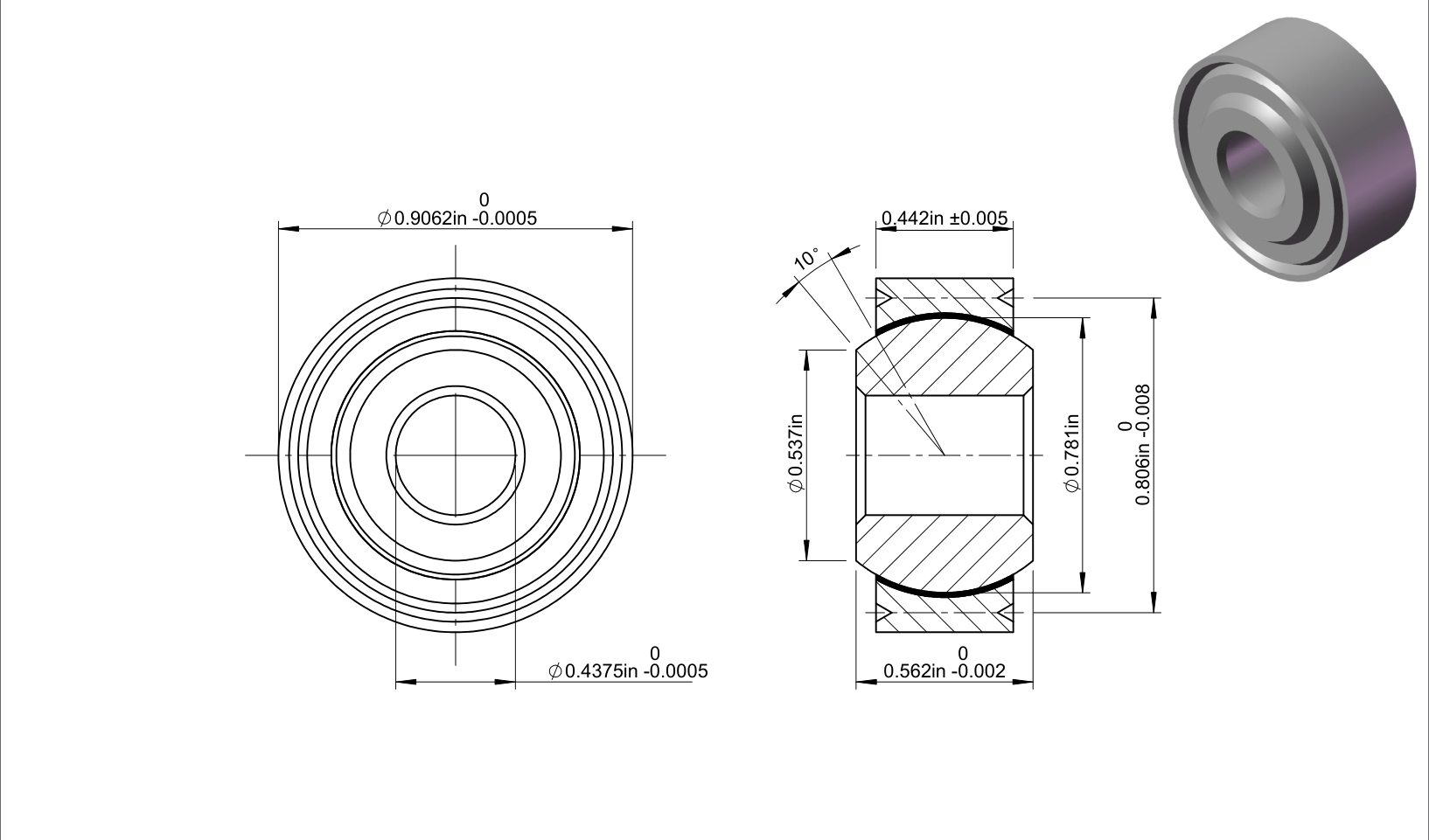

MKW7V52
| Part Number | MKW7V52 |
| Standard Reference | MS14103A-7A |
| System of Measurement | Inch |
| Bore Dia | 0.4375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.9062″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.562″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.442″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.537″ |
| Ball Dia | 0.781″ |
| Pitch Dia | 0.806″ |
| Mis Alignment | 10° |
| Groove Depth | 0.035″ |
| Dynamic Radial Load | 11750 lbs |
| Static Radial Load | 19700 lbs |
| Weight | 0.08 lbs |
$166.53
