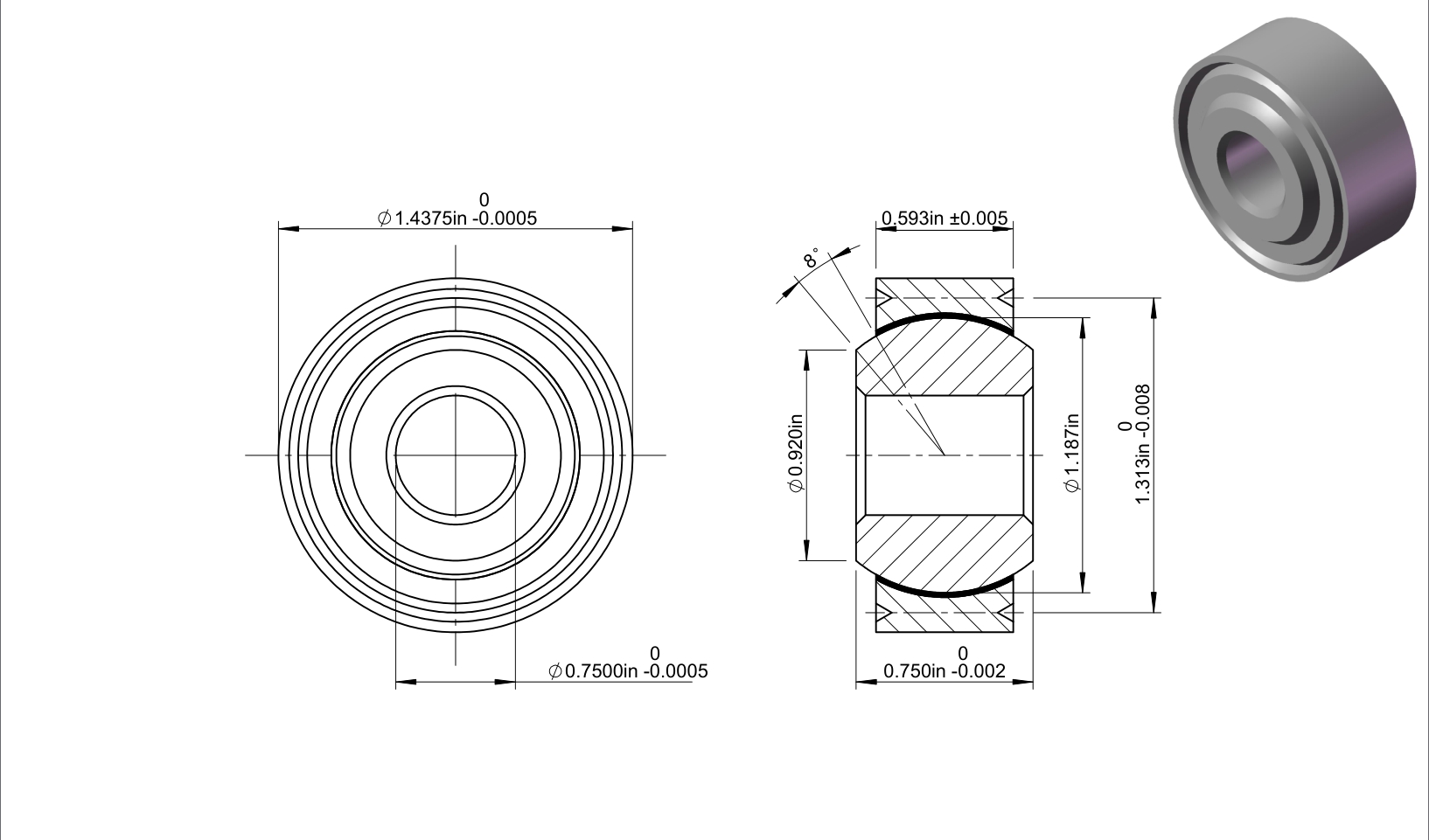

MKB12V
| Part Number | MKB12V |
| Standard Reference | MS14101A-12 |
| System of Measurement | Inch |
| Bore Dia | 0.75″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.4375″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.75″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.593″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.92″ |
| Ball Dia | 1.187″ |
| Pitch Dia | 1.313″ |
| Mis Alignment | 8° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 23600 lbs |
| Static Radial Load | 46400 lbs |
| Weight | 0.21 lbs |
$234.50
