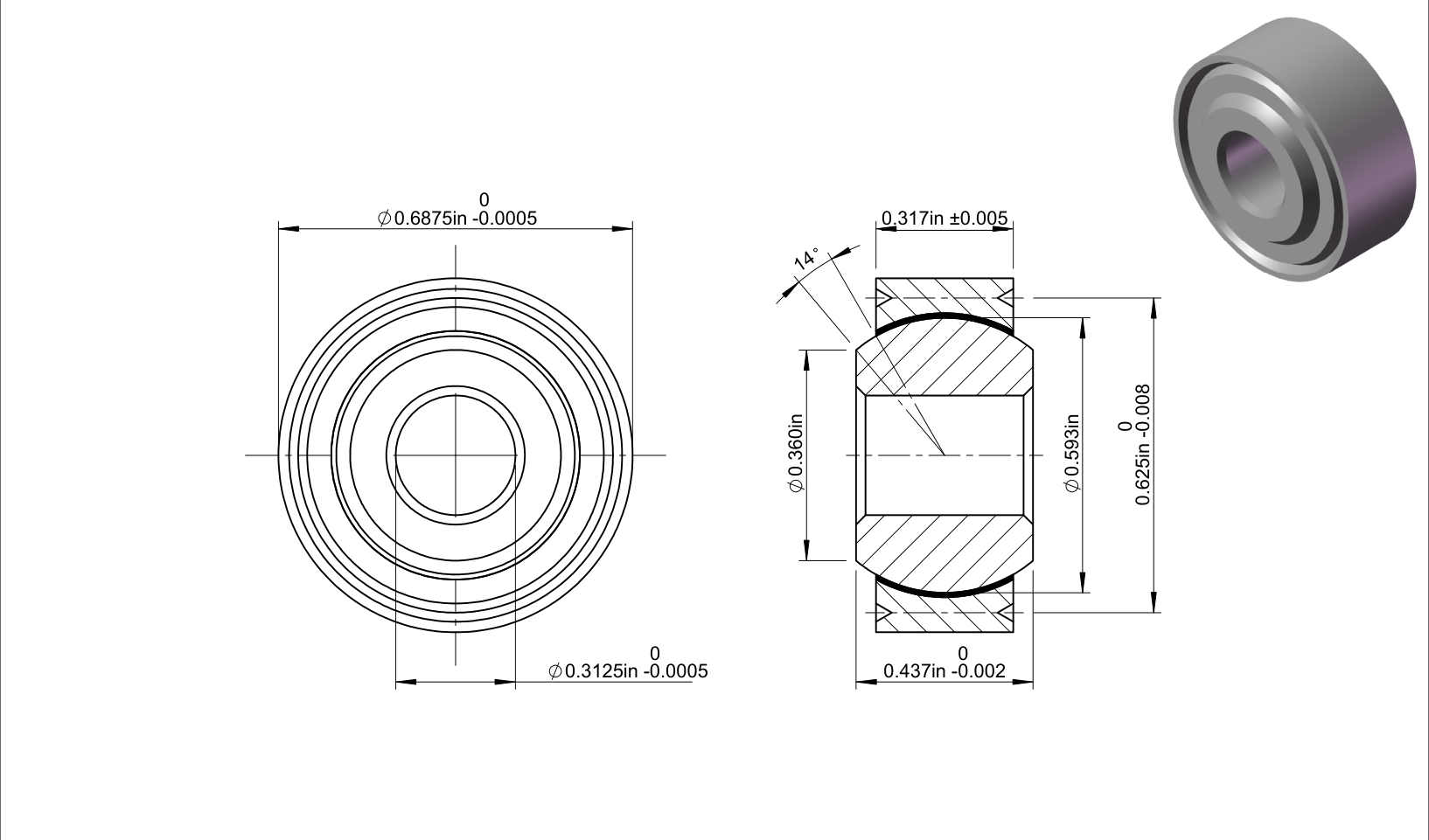

MKW5V
| Part Number | MKW5V |
| Standard Reference | MS14103A-5 |
| System of Measurement | Inch |
| Bore Dia | 0.3125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.6875″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.437″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.317″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.36″ |
| Ball Dia | 0.593″ |
| Pitch Dia | 0.625″ |
| Mis Alignment | 14° |
| Groove Depth | 0.025″ |
| Dynamic Radial Load | 6050 lbs |
| Static Radial Load | 9400 lbs |
| Weight | 0.035 lbs |
$91.76
