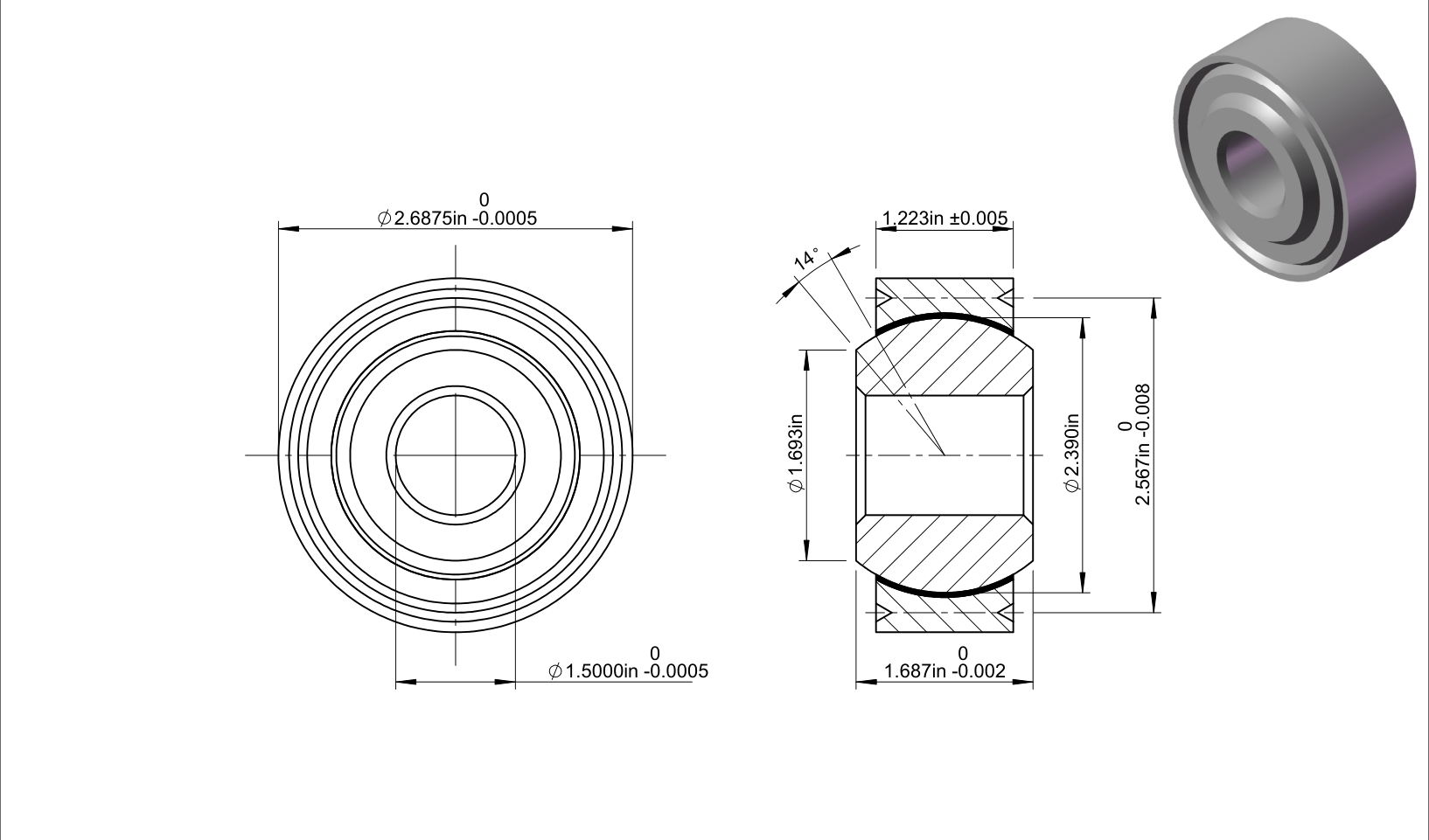

MKW24V
| Part Number | MKW24V |
| System of Measurement | Inch |
| Bore Dia | 1.5″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.6875″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.687″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 1.223″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 1.693″ |
| Ball Dia | 2.39″ |
| Pitch Dia | 2.567″ |
| Mis Alignment | 14° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 79640 lbs |
| Static Radial Load | 199000 lbs |
| Weight | 1.48 lbs |
$424.81
