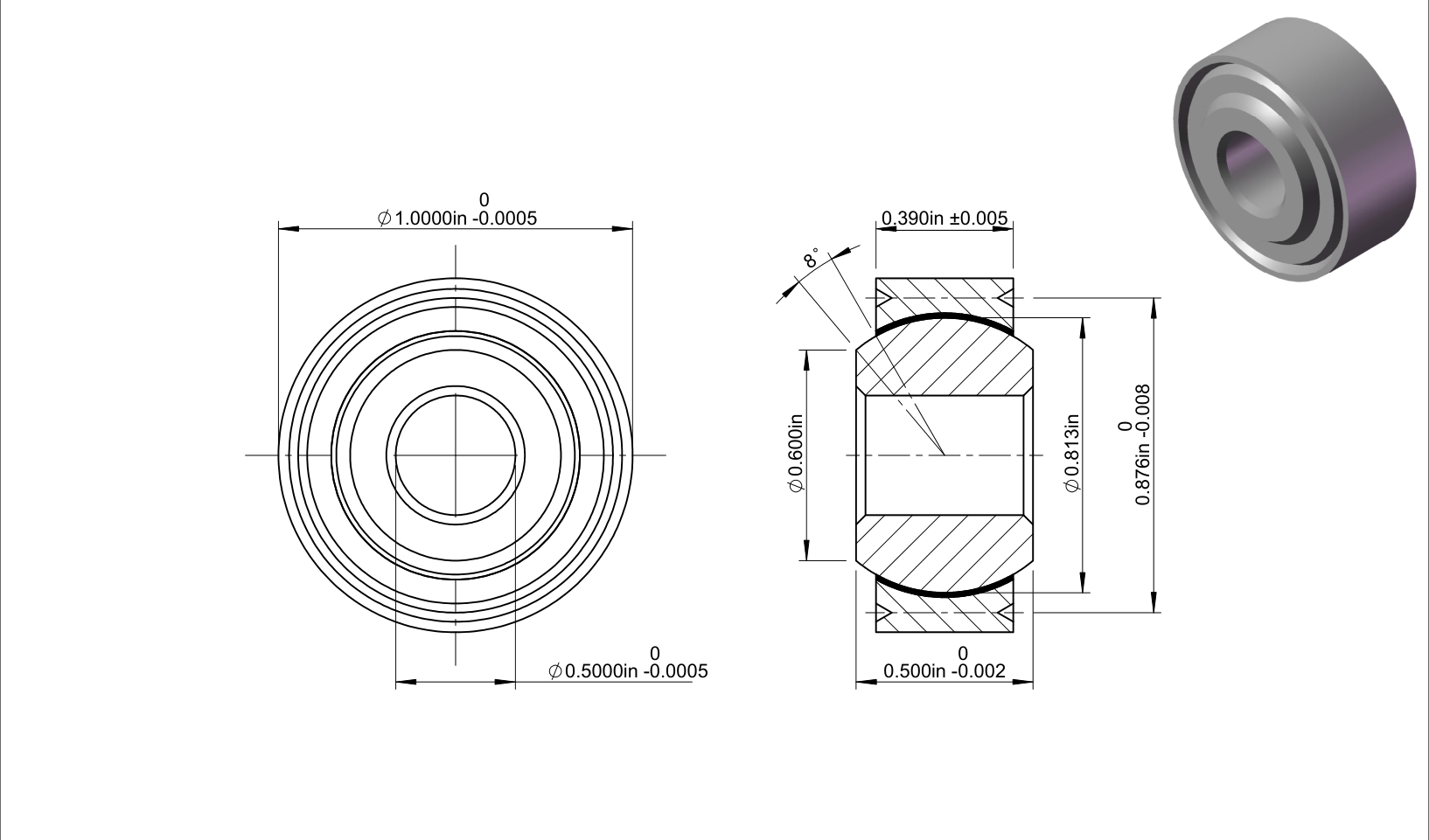

MKB8V
| Part Number | MKB8V |
| Standard Reference | MS14101A-8 |
| System of Measurement | Inch |
| Bore Dia | 0.5″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.5″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.39″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.6″ |
| Ball Dia | 0.813″ |
| Pitch Dia | 0.876″ |
| Mis Alignment | 8° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 10400 lbs |
| Static Radial Load | 17900 lbs |
| Weight | 0.07 lbs |
$181.48
