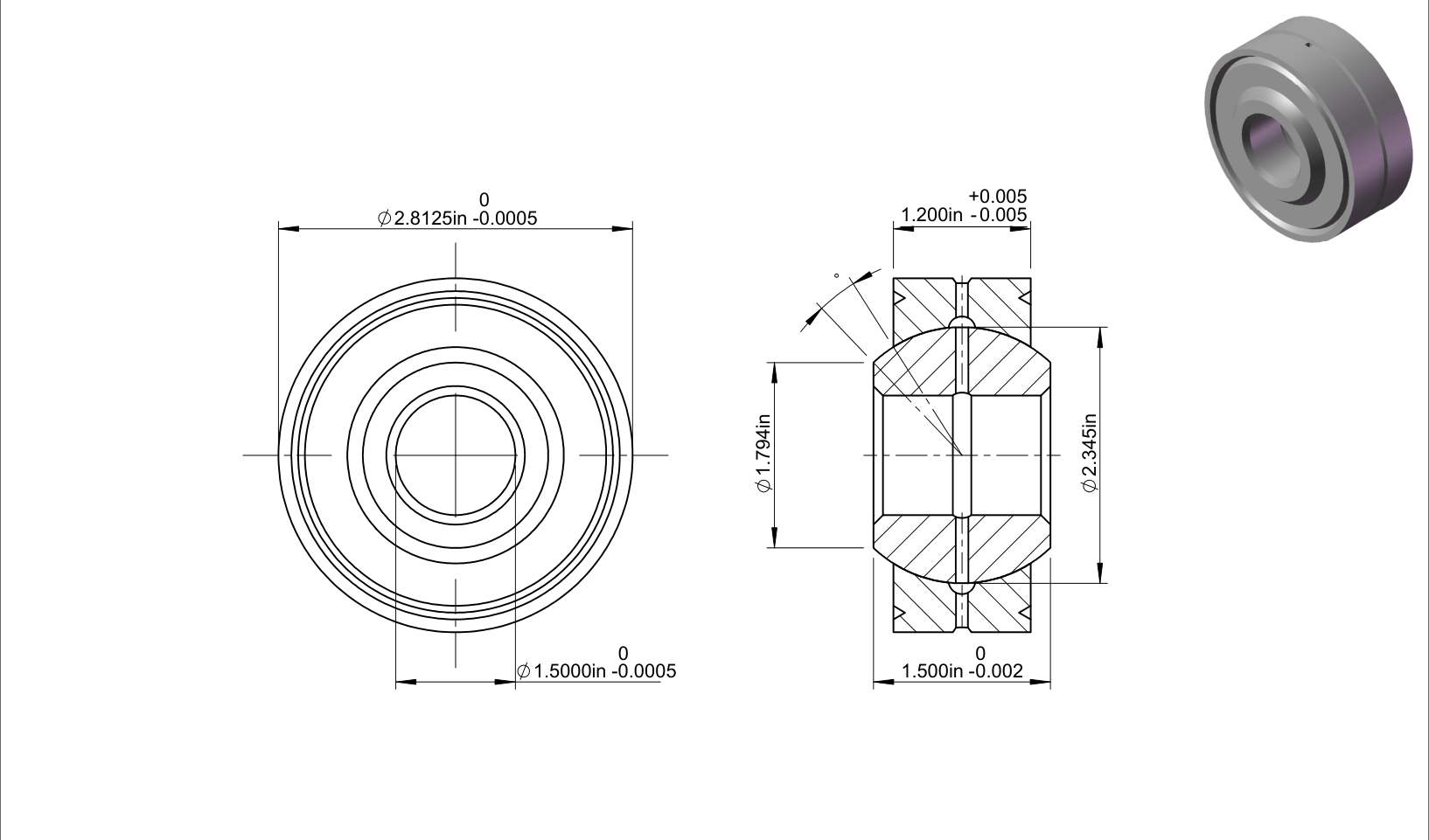

| Part Number | AGB24V |
| System of Measurement | Inch |
| Bore Dia | 1.5″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.8125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.5″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 1.2″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Diameter Lubrication Hole | 0.078-0.093″ |
| Shoulder Dia | 1.794″ |
| Ball Dia | 2.345″ |
| Pitch Dia | 2.69″ |
| Groove Width | 0.082-0.109 |
| Groove Radius | 0.090-0.125″ |
| Staking groove Data(P) | 0.03″ |
| Staking groove Data(X) | 0.06″ |
| Dynamic Radial Load | 224000 lbs |
| Static Radial Load | 47820 lbs |
| Weight | 1.67 lbs |
