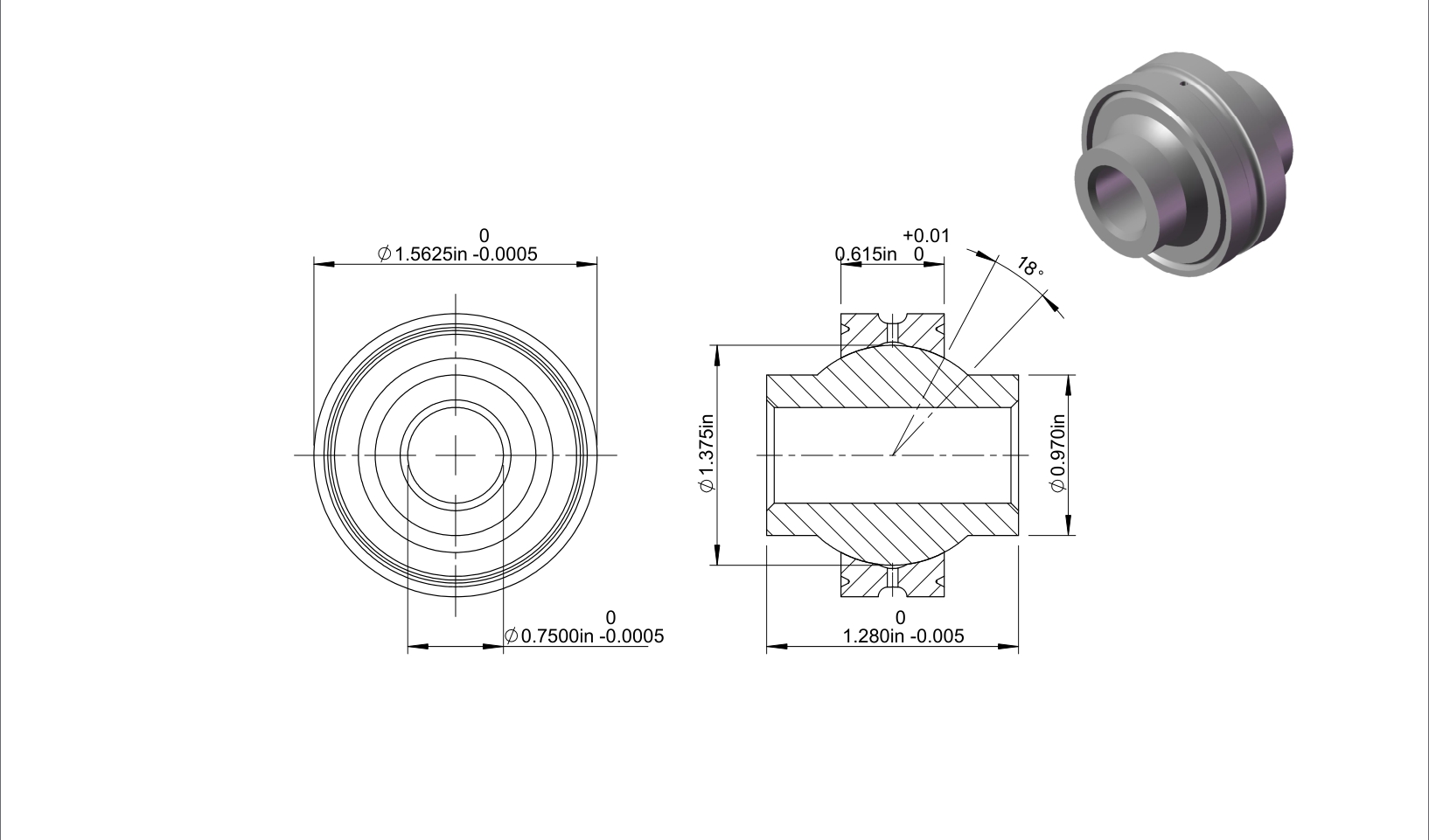

| Part Number | ASBY12V |
| System of Measurement | Inch |
| Bore Dia | 0.75″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.5625″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.28″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.615″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 0.97″ |
| Ball Dia | 1.375″ |
| Race Chamfered | 0.044″ |
| Mis Alignment | 18° |
| Staking groove Data(P) | 0.04″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.055″ |
| Dynamic Radial Load | 33820 lbs |
| Static Radial Load | 60880 lbs |
| Weight | 0.315 lbs |
