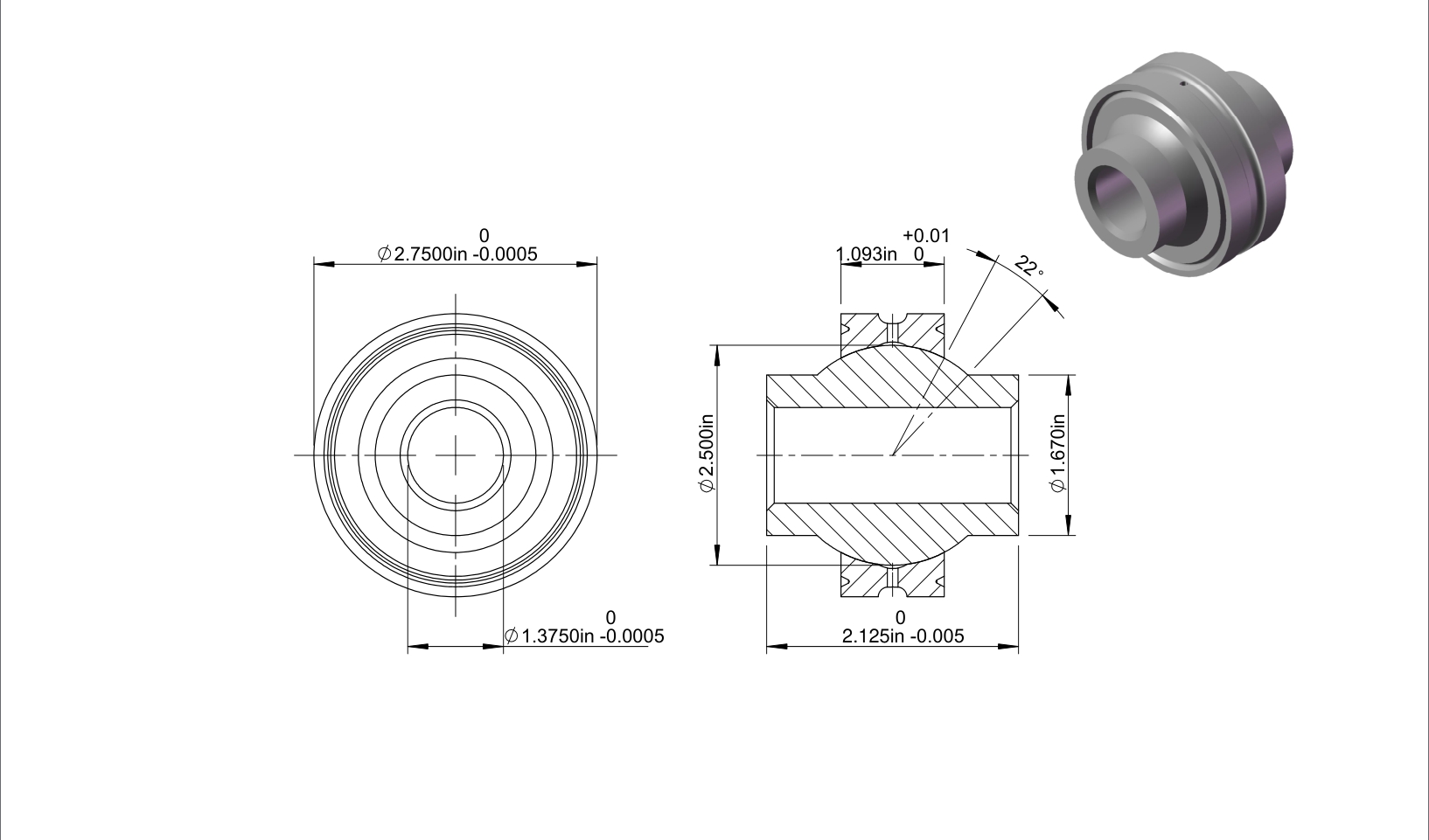

ASBY22V
| Part Number | ASBY22V |
| System of Measurement | Inch |
| Bore Dia | 1.375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.75″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 2.125″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 1.093″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 1.67″ |
| Ball Dia | 2.5″ |
| Race Chamfered | 0.044″ |
| Mis Alignment | 22° |
| Staking groove Data(P) | 0.06″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.08″ |
| Dynamic Radial Load | 91800 lbs |
| Static Radial Load | 206550 lbs |
| Weight | 1.8 lbs |
$314.02
