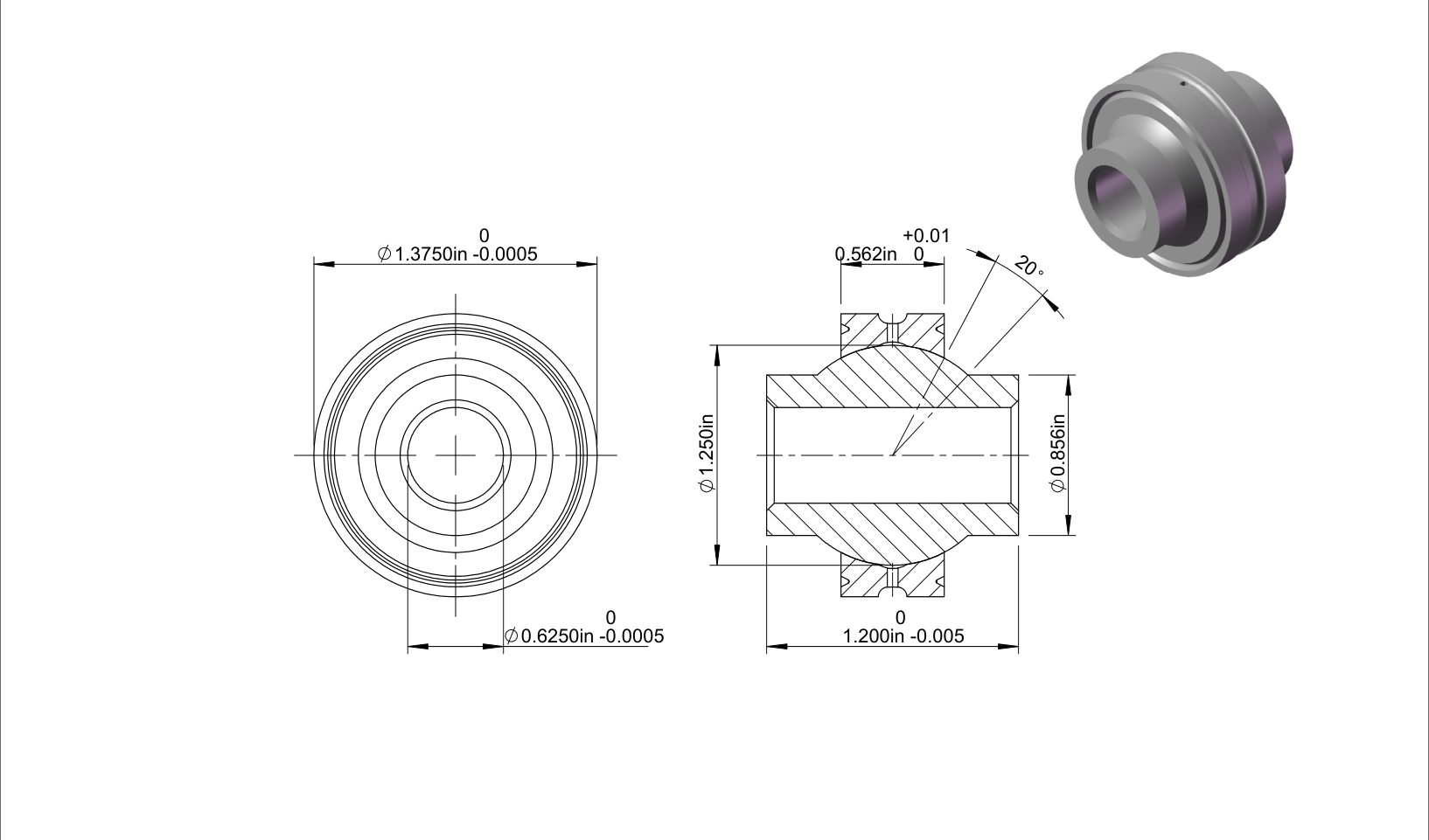

ASBY10V
| Part Number | ASBY10V |
| System of Measurement | Inch |
| Bore Dia | 0.625″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.375″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.2″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.562″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 0.856″ |
| Ball Dia | 1.25″ |
| Race Chamfered | 0.032″ |
| Mis Alignment | 20° |
| Staking groove Data(P) | 0.04″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.055″ |
| Dynamic Radial Load | 27440 lbs |
| Static Radial Load | 49390 lbs |
| Weight | 0.245 lbs |
$181.48
